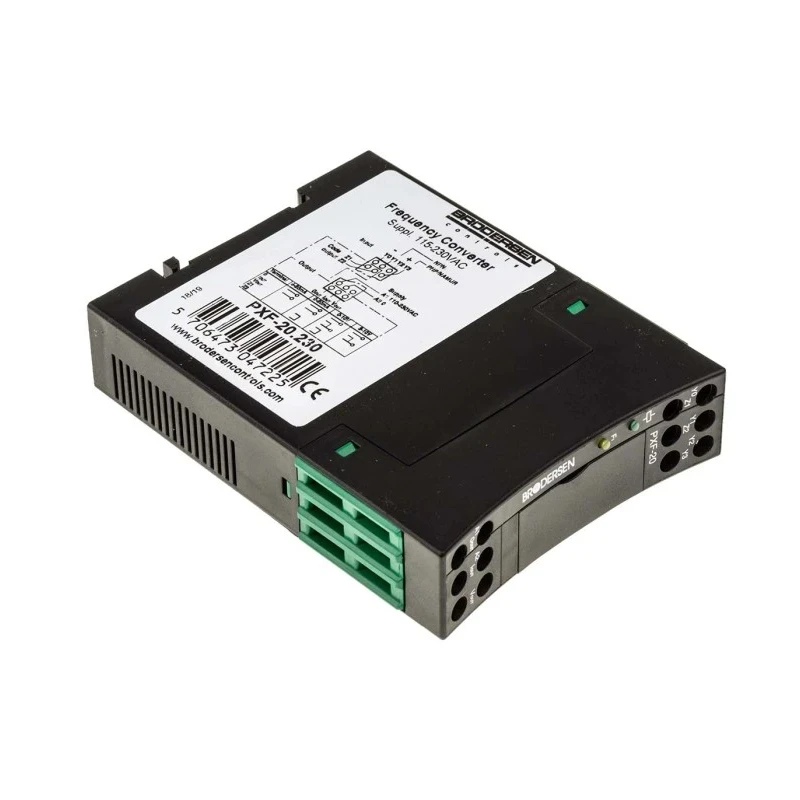

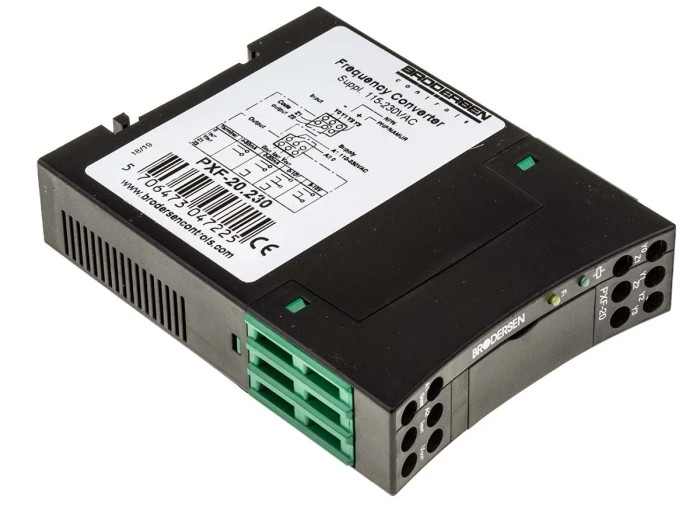

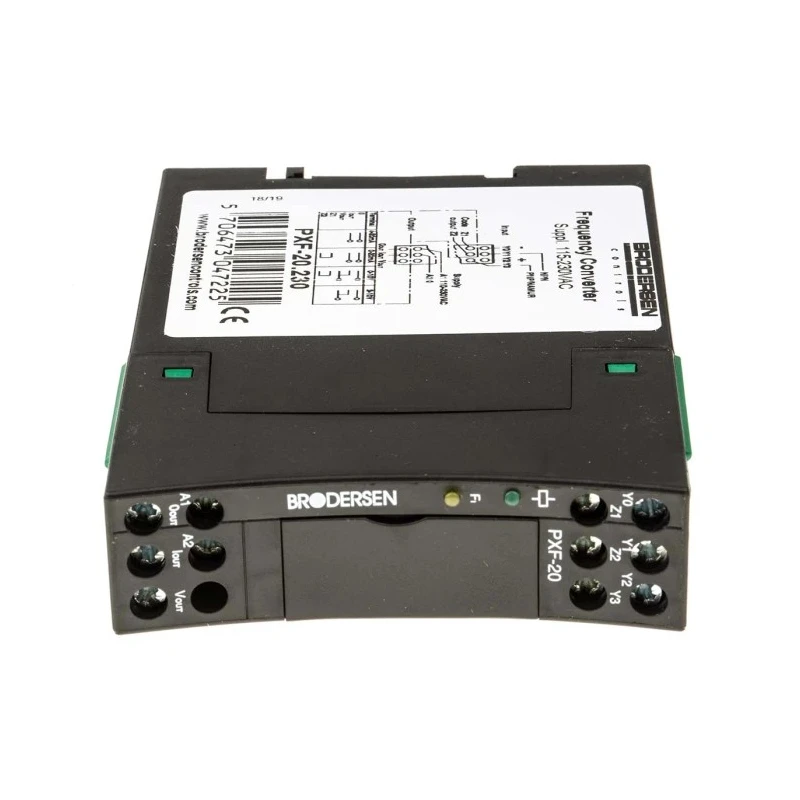

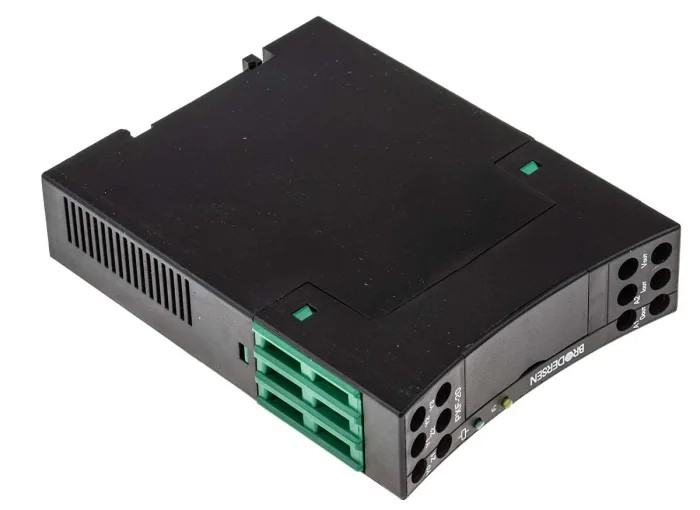

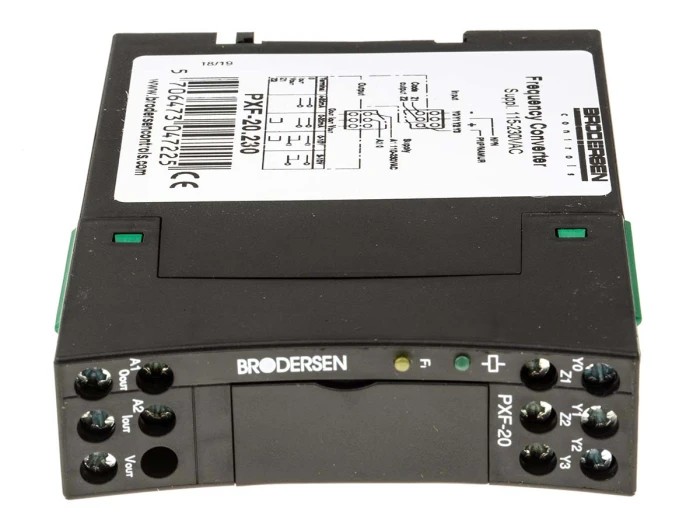

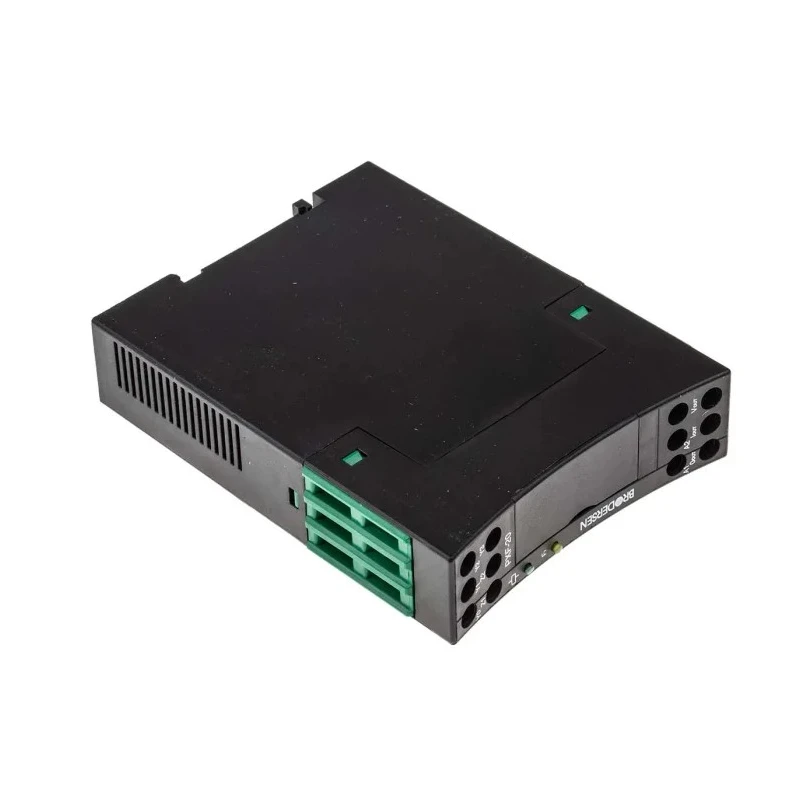

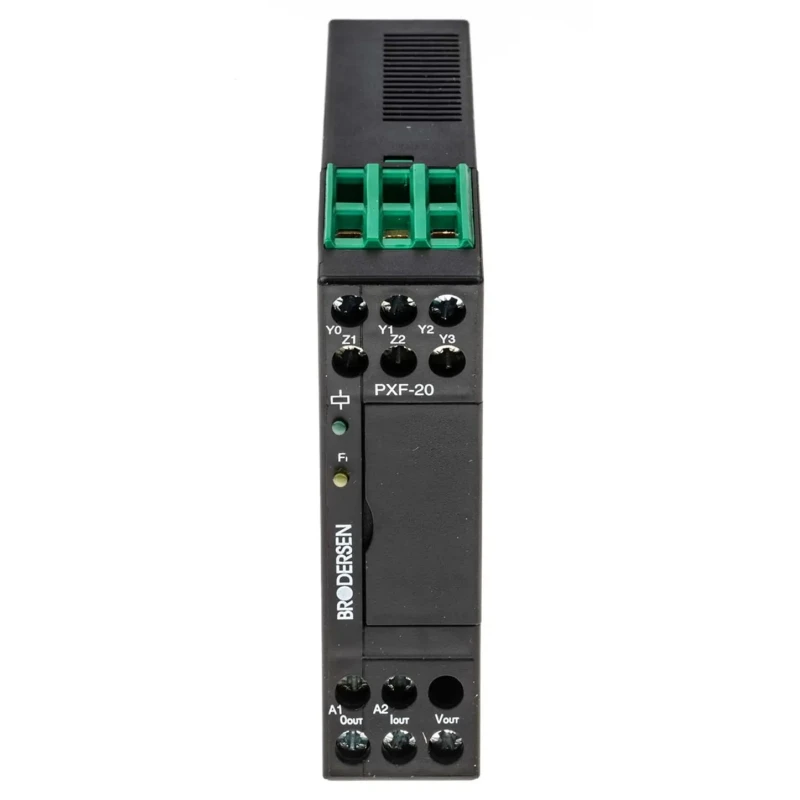

Brodersen Controls MINI MCR-2-U-U-PT Series Signal Conditioner Frequency Input Current/Voltage Output 115V AC PXF-20.230/RS

Brodersen Controls PXF-20.230/RS MINI MCR-2-U-U-PT Series Signal Conditioner is a precision frequency to analogue signal converter designed for industrial and automation applications. It efficiently processes frequency input signals up to 5 kHz and converts them to selectable current or voltage output, supporting 115V AC and 230V AC supply voltages.

The device features galvanic isolation between supply and output to ensure accurate and interference-free signal transmission. Adjustable offset and gain allow fine tuning by ±5%, enabling tailored performance for specific system requirements. An LED indicator provides immediate visual feedback when the input signal exceeds 5% of the configured range, aiding operational monitoring.

Its robust NORYL housing combined with DIN rail mounting makes this signal conditioner suitable for panel installations in harsh environments. Secure screw terminal connections simplify wiring and maintenance. The operating temperature range from -20°C up to 55°C broadens its usability across diverse industrial conditions.

This signal conditioner is ideal for electrical automation systems, relay controls, and instrumentation applications where reliable frequency-to-analogue signal conversion is critical. Whether used in manufacturing, process control, or monitoring systems, it delivers precise, stable outputs conforming to stringent operational standards.

Supports frequency input signal range from 0 to 5 kHz. Output signals selectable between 0 to 10 V or 0 to 20 mA. Galvanically isolated supply and output for reliable signal conditioning. DIN rail mounting with compact NORYL housing for easy installation.

Built-in LED indicator for input signals above 5% of set range. Adjustable offset and gain by ±5% for precise calibration. Screw terminal type for secure wiring connections. Wide operating temperature range from -20°C to 55°C ensures durability.

Compact dimensions: Height 80 mm x Width 22.5 mm x Depth 104 mm. Explore more industrial Signal Conditioners and automation solutions at EnvMart for optimized process control and electrical systems.
