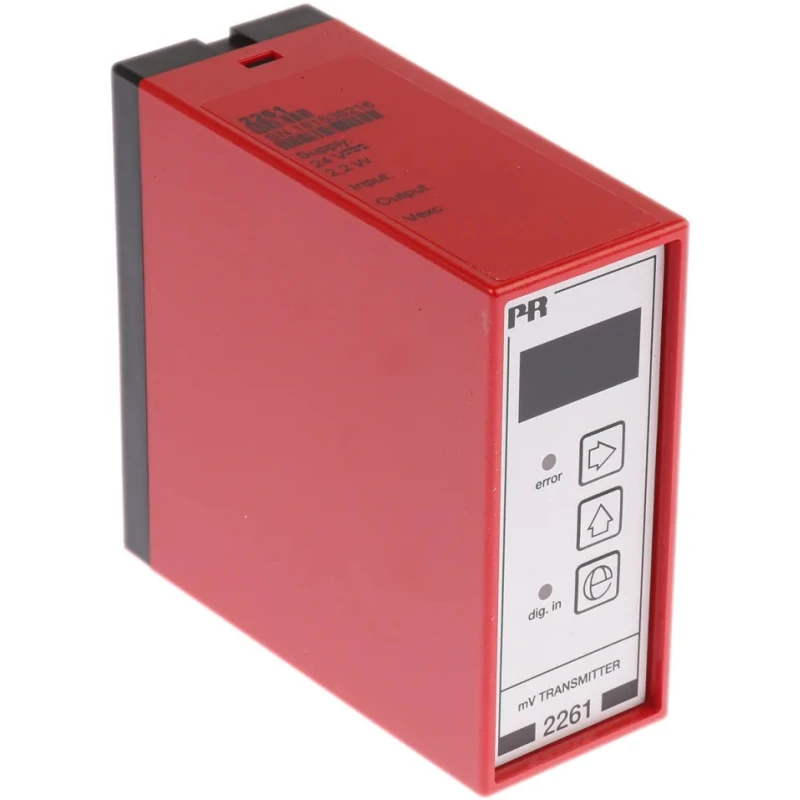

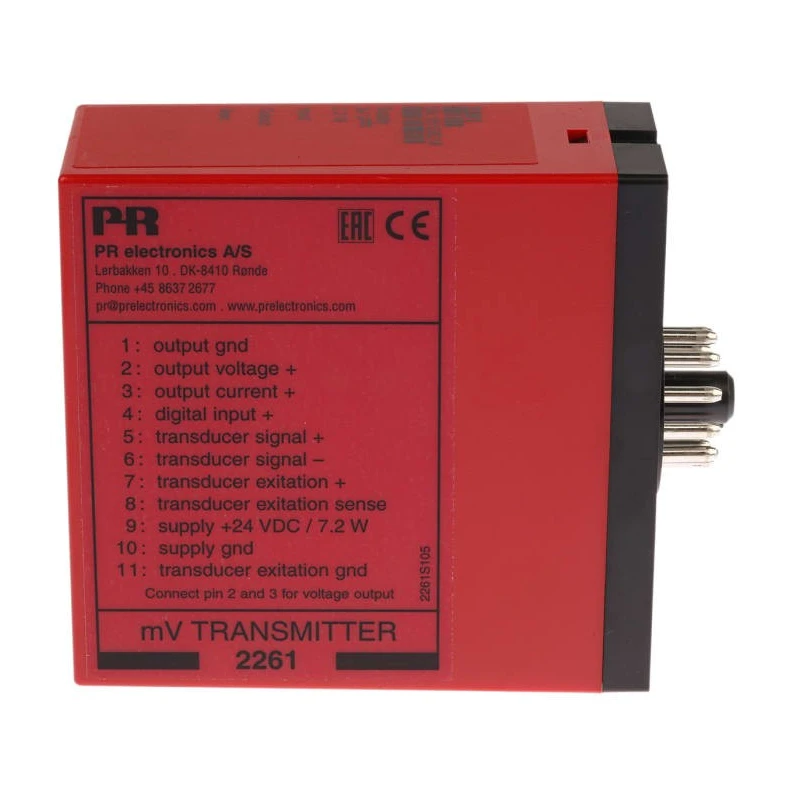

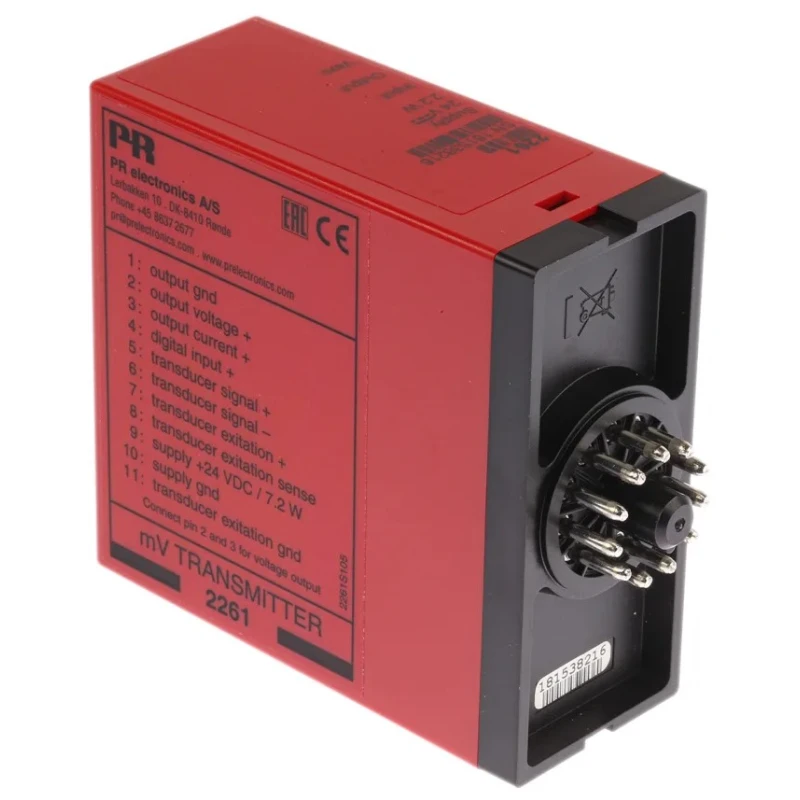

PR Electronics 2 Series Signal Conditioner Voltage Input Current Output 19.2V dc 28.8V dc Supply 2261

Free Delivery in India | Lowest Global Shipping Charges

PR Electronics 2 Series Signal Conditioner Voltage Input Current Output 19.2V dc 28.8V dc Supply 2261

Name: PR Electronics 2 Series Signal Conditioner Voltage Input Current Output 19.2V dc 28.8V dc Supply 2261
Brand: PR Electronics
SKU: 133819
Price: 788.44 USD
Availability: InStock



Category Signal Conditioners Brand PR Electronics Condition New

Specifications

Country of Origin	Denmark
Brand	PR Electronics
Model	2261
IP Rating	IP20
Mount Type	DIN Rail
Series	2
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Output Range	0 → 20 mA
Input Range	-40 → +100 mV
Supply Voltage	19.2, 28.8V dc
Hazardous Area Certification	EAC, IECEx, UL, Zone 2, ATEX, EU RO marine, Zone, FM, DNV GL
Input Signal Type	Voltage
Output Signal Type	Current

Key Features

Converts bipolar millivolt signals from transducers to standard current or voltage outputs.
Supports input voltage range from -40 to +100 mV for precise measurements.
Programmable output current range from 0 to 20 mA to suit application needs.
Operates on dual supply voltages of 19.2 V dc and 28.8 V dc for flexible use.
DIN rail mounting with screw terminal connections ensures easy installation.

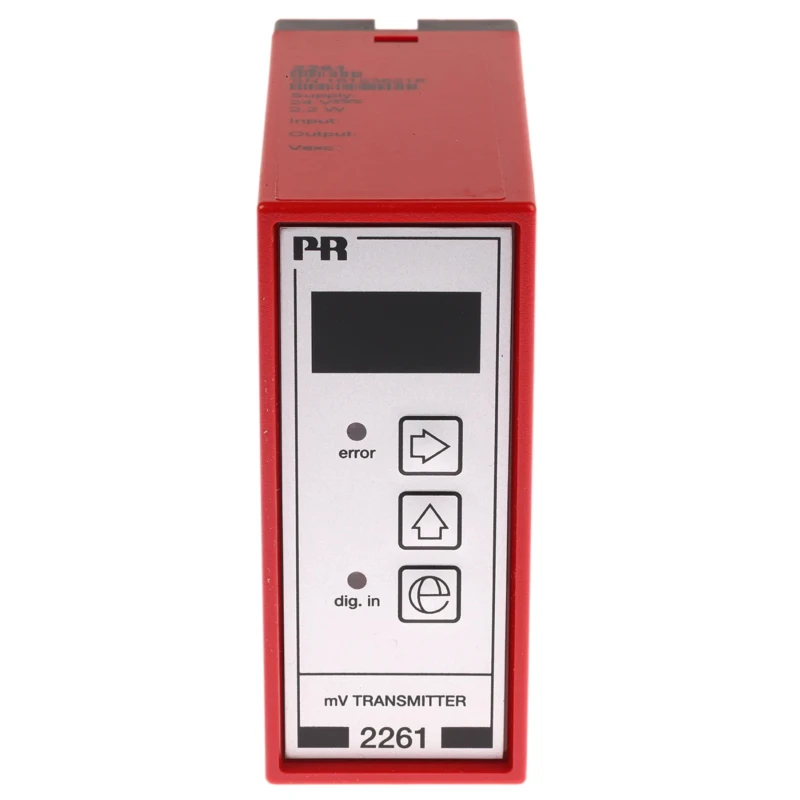

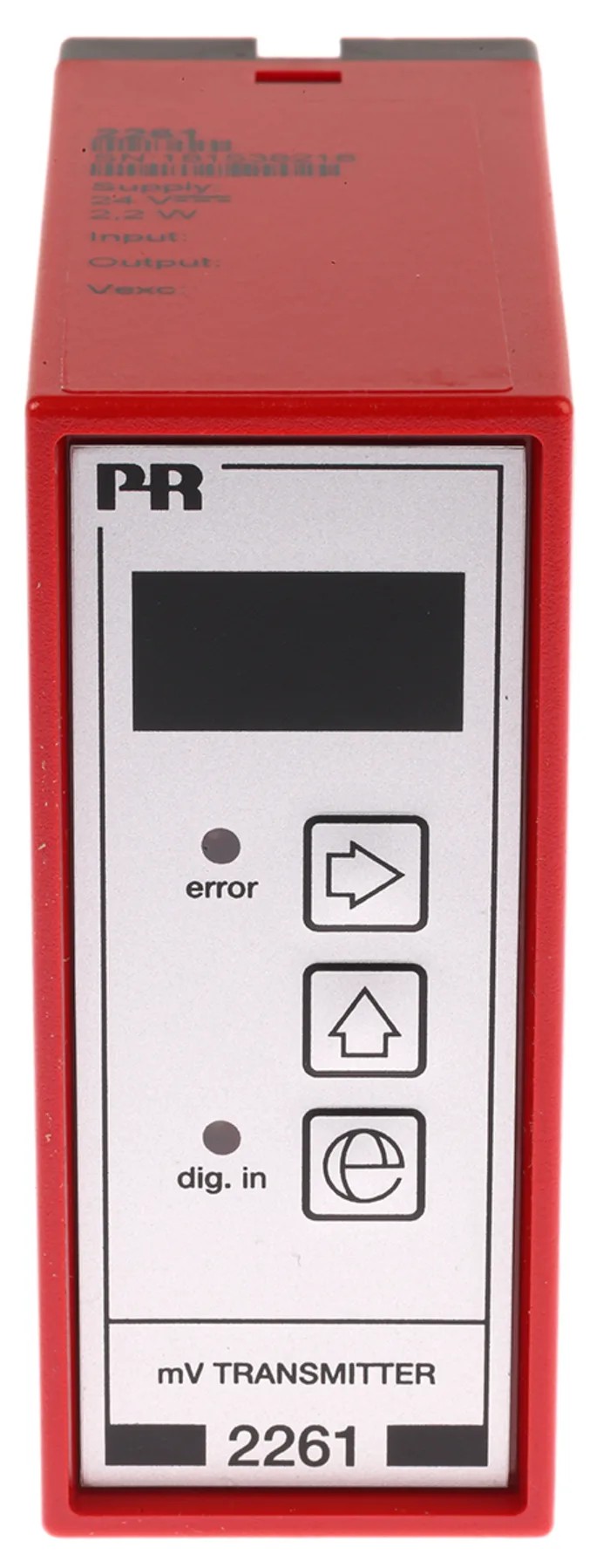

Front panel 3-digit LED display and keys enable simple calibration and programming.
Suitable for load cell amplification, tank level control, and cable tensile force measurement.
Certified for hazardous area use including EAC, IECEx, UL, ATEX, and FM approvals.

Product Description

PR Electronics 2261 Signal Conditioner from the 2 Series is a versatile and precise device designed for converting voltage input signals into current outputs in industrial and automation environments. It supports voltage input from -40 to +100 mV and programmable output currents from 0 to 20 mA, making it ideal for applications such as load cell signal conditioning, tank filling and draining, cable tensile force measurement, and level control. The device operates with dual supply voltages of 19.2 V dc and 28.8 V dc and mounts easily on DIN rails with screw terminal connections.

This microprocessor-controlled transmitter features a user-friendly 3-digit LED display and front function keys to allow on-site calibration and configuration without readjustments, ensuring high accuracy and operational flexibility.

The 2261 is certified for use in hazardous areas, holding approvals including EAC, IECEx, UL, Zone 2, ATEX, EU RO marine, FM, and DNV GL. Its rugged design supports operation in temperatures ranging from -20°C to 60°C with an IP20 protection rating.

Converts bipolar mV signals to standard current or voltage signals. Flexible input and output ranges with programmable calibration. Front panel calibration with digital display for ease of use. Compatible with load cells and various measurement instruments.

DIN rail mounting suitable for compact industrial panels. Suitable for hazardous areas with multiple certifications. Provides supply voltage for standard transducers. Screw terminal connections for reliable wiring. Microprocessor-controlled for accuracy and stability.

IP20 rated enclosure and operational temperature from -20°C to 60°C.

This signal conditioner is ideally suited for industrial environments such as manufacturing facilities, automation systems, water treatment plants, and hazardous zone installations. Its precision and certification compliance make it a reliable choice for critical measurement and control tasks.

Explore the wide range of industrial Signal Conditioners and electronic components on EnvMart for comprehensive automation solutions.
