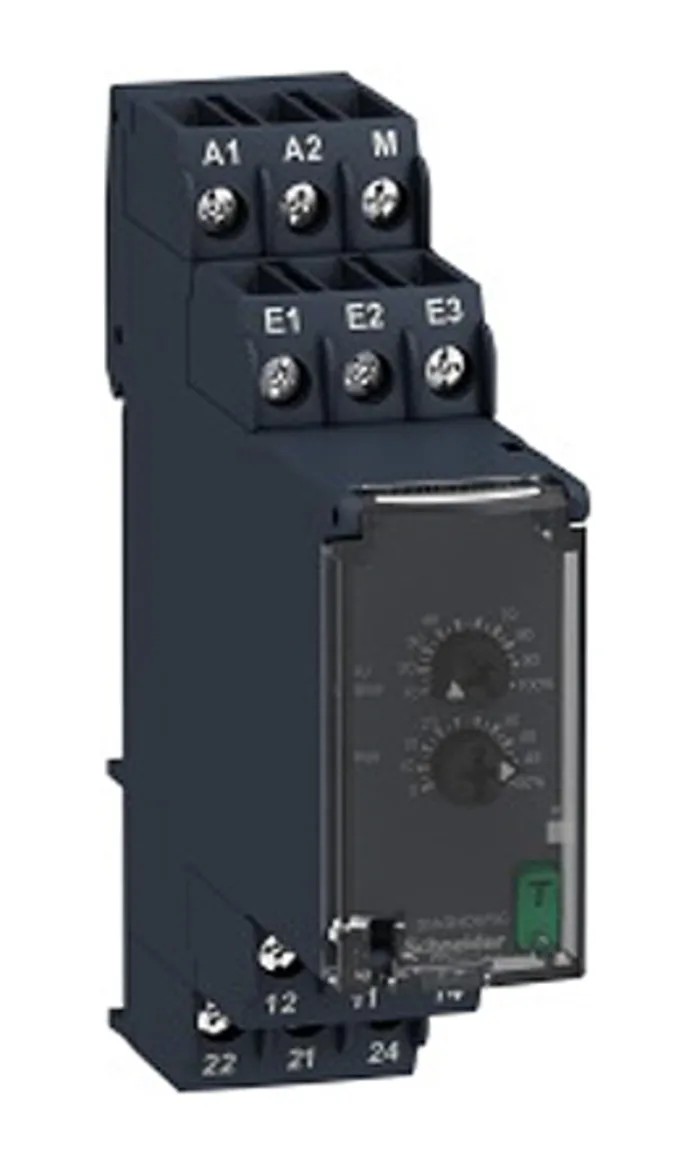

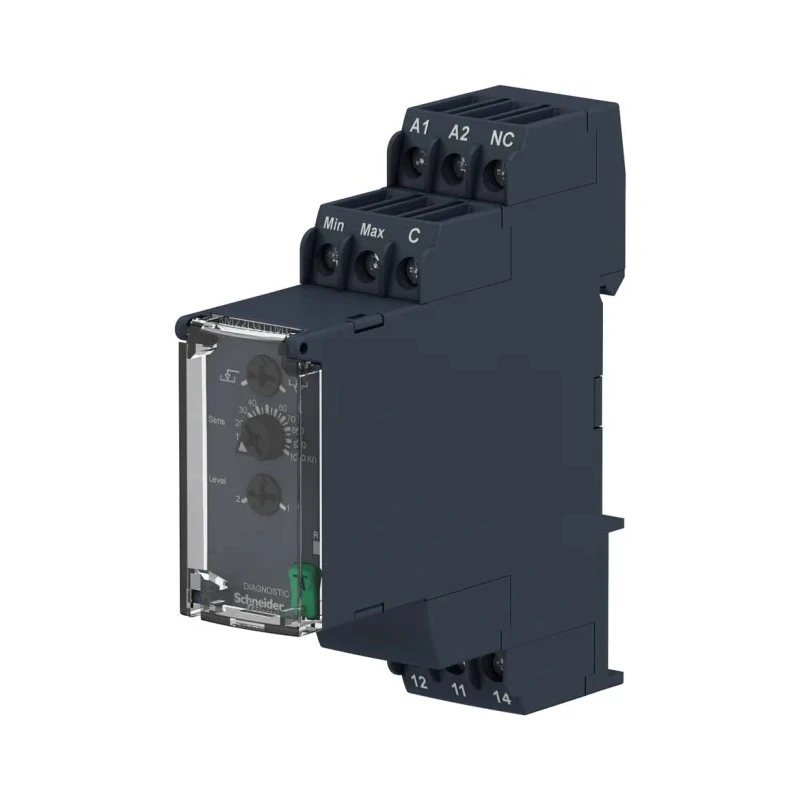

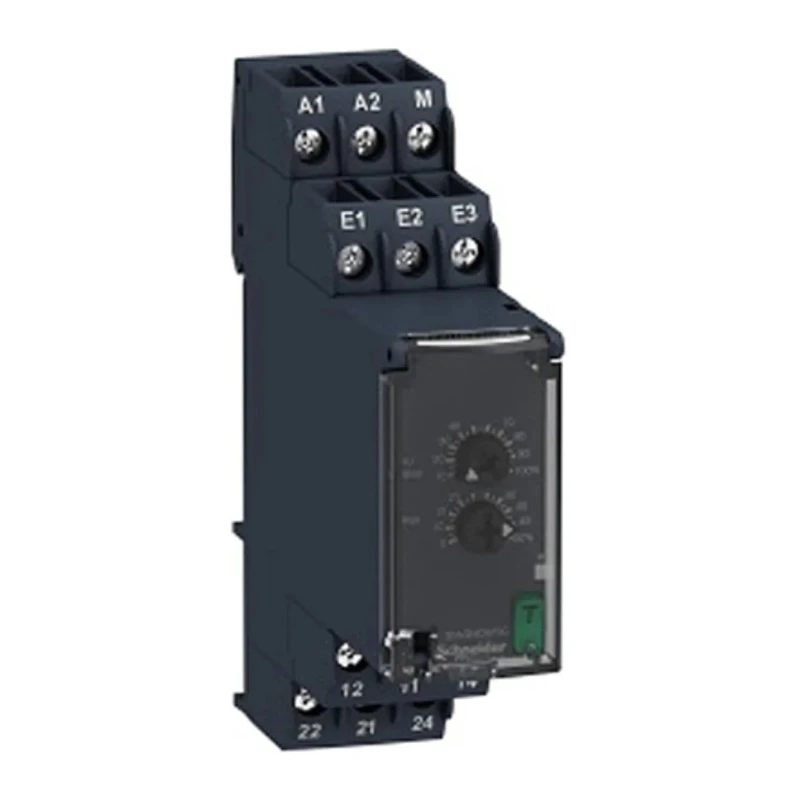

Brodersen Controls Monitoring Relay, 3 Phase, SPDT Contact Configuration, DIN Rail Mount, 380-415V AC, 8A Contact RM22LG11MT

Schneider Electric RM22LG11MT monitoring relay is a multi-function, modular, 3-phase liquid level control relay suitable for industrial automation and building control panels. It supports SPDT contact configuration with DIN rail mounting, operating efficiently at 380 V AC to 415 V AC supply voltages and an 8 A contact current rating. This relay is designed to monitor electrical variables in various industrial applications including hoisting, packaging, lifts, textile manufacturing, and water management systems.

The relay features a slim form factor with a width of 22.9 mm, allowing installation in compact spaces on a standard 35 mm DIN rail. Its advanced functionality includes a 1750-second time delay, diagnostic button for troubleshooting, and a sealable cover to prevent accidental setting changes. The device offers automatic shutdown management and fault indication, facilitating prompt identification and resolution of issues. It uses screw terminals for secure and reliable electrical connections.

Certified to IEC 60255-27 and compliant with REACH and RoHS directives, the RM22LG11MT ensures high reliability and compliance with international standards. Its IP50, IP40, and IP20 ratings provide effective protection against dust and environmental factors, suitable for harsh industrial environments.

This monitoring relay is ideal for controlling liquid levels in 3-phase networks, protecting equipment such as submersible pumps from dry running or tanks from overflow. It enables both fill and empty functions using resistive probes. Industrial use cases include application in automation systems for manufacturing, HVAC control, water treatment, and commercial process monitoring.

Compact DIN rail mounting with slim 22.9 mm width. Operates at 380 V AC and 415 V AC supply voltage. Supports SPDT contact configuration with 8 A current rating. 1750 seconds time delay for precise control. IP50, IP40, and IP20 rated for environmental protection.

Diagnostic button and sealable front cover included. Complies with IEC 60255-27, REACH, RoHS, IEC 60068 standards. Suitable for liquid level control and electrical variable monitoring. Provides automatic shutdown management and fault information.

Choose this reliable Schneider Electric monitoring relay for comprehensive control and protection in industrial automation and building management systems. Explore EnvMart's selection of industrial relays and automation components for your projects.
