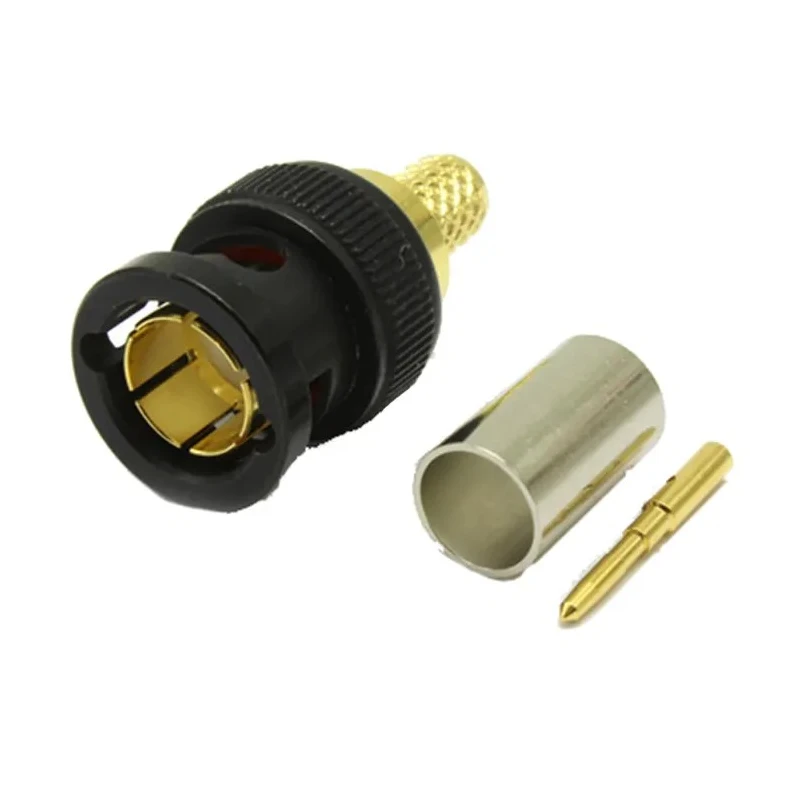

COAX Connectors BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp 10-005-W66-FB
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-005-W66-FB |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- Constructed with gold plated brass center contacts and body for enhanced conductivity and corrosion resistance.
- Designed for easy quarter-turn bayonet coupling for quick connect and disconnect.
- Supports operating frequency up to 6 GHz suitable for high-definition broadcast applications.
- Operates reliably in temperatures ranging from -55°C to 155°C.
- Features crimp termination type ensuring secure cable connection.
- Meets SMPTE 292M, 424M, and ST208-1 standards for broadcast signal integrity.
- Compatible with standard size cable mount without bulkhead intrusion.
- Ideal for use in broadcast, telecom, instrumentation, and security systems.
Product Description
COAX Connectors 10-005-W66-FB BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp is a high-quality coaxial connector designed for reliable and stable signal transmission in demanding industrial and broadcast environments. Featuring gold plated brass contacts and body plating, this connector ensures excellent conductivity and resistance to corrosion, enhancing long-term performance.
The connector utilizes a simple quarter-turn bayonet coupling, providing quick and secure connection and disconnection, which is particularly useful in high-density setups requiring rapid maintenance or equipment changes. It supports a broad operating frequency range up to 6 GHz, making it suitable for 4K and Ultra HD broadcast markets, as well as telecom and instrumentation applications.
This crimp-type termination connector operates reliably across extreme temperatures from -55°C to 155°C, supporting robust operation in harsh industrial and field environments. The product does not feature a bulkhead mounting, making it optimal for cable-mounted applications requiring flexibility and ease of installation.
The male connector design, with a normal polarity and standard size orientation, complements a wide variety of coaxial cable assemblies, ensuring compatibility and easy integration into existing systems. The connector conforms to the SMPTE 292M, 424M, and ST208-1 standards relevant for broadcast and video signal integrity, confirming its suitability for professional high-definition video transmission.
Constructed with gold plated brass for high signal fidelity and corrosion resistance. Simple bayonet coupling requiring a quarter turn for connection. Operating frequency up to 6 GHz suitable for Ultra HD broadcast. Temperature range from -55°C to 155°C supports industrial use.
Crimp termination type ensures secure cable connections. Standard size cable mount design without bulkhead. Complies with SMPTE 292M, 424M, and ST208-1 broadcast standards. Ideal for broadcast, telecom, instrumentation, and security systems.
This coaxial connector is manufactured in Taiwan, Province Of China and represents a new product condition, ensuring reliable performance for demanding technical applications. Explore the extensive range of Coaxial Connectors in the Electronics & Electricals category at EnvMart for related high-performance connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 6 GHz, making it suitable for high-definition broadcast applications.
This model operates reliably in temperatures ranging from -55°C to 155°C, suitable for harsh industrial environments.
It features a crimp termination type, ensuring a secure connection for the cable.
This connector is designed as a standard size cable mount without bulkhead intrusion, allowing for flexible installation.
The connector is constructed with brass for the contacts and body, and features gold plating for enhanced conductivity and corrosion resistance.
It complies with SMPTE 292M, 424M, and ST208-1 standards, ensuring broadcast signal integrity.
This model has a male connector gender and normal polarity, allowing for compatibility with various coaxial cable assemblies.
It is ideal for applications in broadcast, telecom, instrumentation, and security systems.
The contact material is brass, which is known for its conductivity and durability.
This connector is manufactured in Taiwan, Province Of China.
It utilizes a quarter-turn bayonet coupling mechanism, allowing for quick and secure connections and disconnections.
This model supports an impedance of 75 Ω, making it suitable for various coaxial applications.
