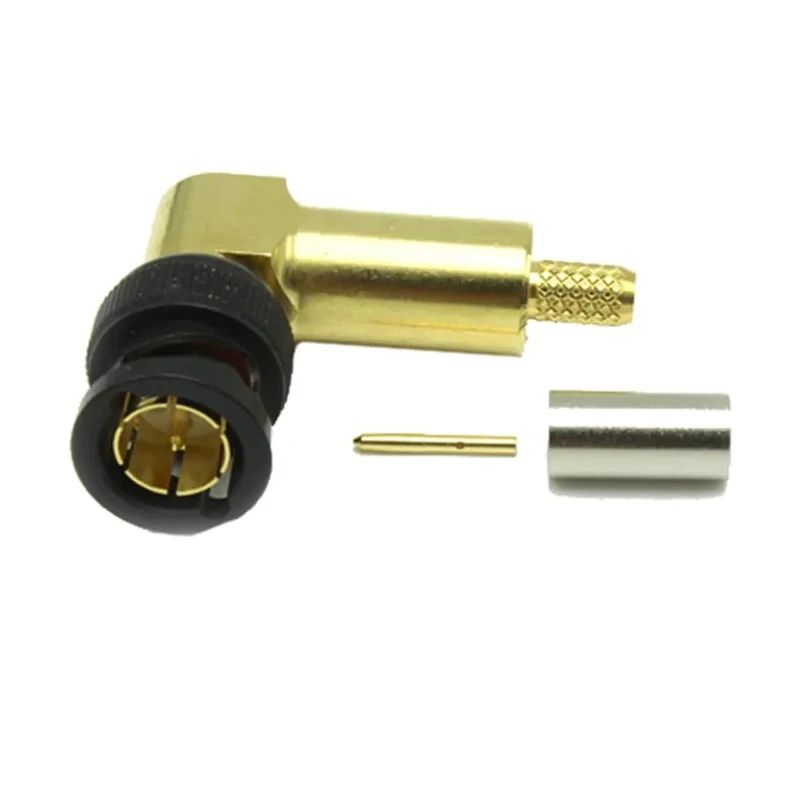

COAX Connectors BNC Series Coaxial Connector Cable Male BNC 75 Ω Right Angle Body Crimp 10-104-W66-FA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Right Angle |
| Model | 10-104-W66-FA |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- The connector features a right angle orientation with male BNC connector gender.
- It supports 75 ohm impedance ideal for high definition signal transmission.
- The body and contacts are gold plated for excellent conductivity and corrosion resistance.
- Termination is by crimp method ensuring secure cable attachment.
- The connector operates reliably from -55°C up to 155°C.
- It conforms to broadcast standards SMPTE 292M, 424M and ST208-1.
- Body is a standard size and not bulkhead mounted, suitable for cable attachment.
- Contact material is beryllium copper with gold plating for durability.
Product Description
COAX Connectors 10-104-W66-FA BNC Series Coaxial Connector Cable Male BNC 75 Ω Right Angle Body Crimp offers premium quality coaxial connection solutions for broadcast, telecom, instrumentation, and security applications.
These connectors feature a right angled male BNC interface with gold plated brass contacts and body to ensure stable low-loss performance necessary for 4K and Ultra HD signal transmission. The crimp termination type allows for secure cable connections delivering reliable electrical conduction.
Operating frequency up to 6 GHz and impedance of 75 ohms make this connector suitable for high definition video and RF applications. It withstands harsh environments with a wide operating temperature range from -55°C to 155°C. The contact material is beryllium copper with gold plating for enhanced durability and conductivity.
The connector uses a simple bayonet coupling for quick quarter turn connect and disconnect. This ease of use combined with its robust design makes it a popular choice across multiple industries including broadcasting, security systems, telecom networks, and instrumentation.
Though not bulkhead mountable, the standard size body fits cable mount applications smoothly. It is part of the Korus series which is known for its high quality and stable performance.
The connector features a right angle orientation with male BNC connector gender. It supports 75 ohm impedance ideal for high definition signal transmission. The body and contacts are gold plated for excellent conductivity and corrosion resistance.
Termination is by crimp method ensuring secure cable attachment. The connector operates reliably from -55°C up to 155°C. It conforms to broadcast standards SMPTE 292M, 424M and ST208-1. Body is a standard size and not bulkhead mounted, suitable for cable attachment.
Contact material is beryllium copper with gold plating for durability. The connector series is BNC, widely used in instrumentation and security systems.
Ideal for industrial, broadcast, communications, and security system professionals, this coaxial connector enables dependable and high fidelity signal connections. Explore more Coaxial Connector options and related products at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an impedance of 75 ohms, making it suitable for high definition signal transmission.
It operates at a maximum frequency of up to 6 GHz, which is ideal for various RF applications.
The connector operates reliably within a temperature range of -55°C to 155°C.
This model uses a crimp termination type, ensuring a secure attachment to the cable.
The contacts are made of beryllium copper and are gold plated, while the body is also gold plated for enhanced conductivity and corrosion resistance.
No, this model is not bulkhead mountable; it is designed for standard cable attachment.
It features a right angle orientation, which can be advantageous in tight spaces.
It conforms to broadcast standards SMPTE 292M, 424M, and ST208-1.
The connector is classified as a standard size, suitable for various cable applications.
This model features a male BNC connector gender.
It is suitable for applications in broadcasting, telecommunications, instrumentation, and security systems.
The connector is manufactured in Taiwan.
