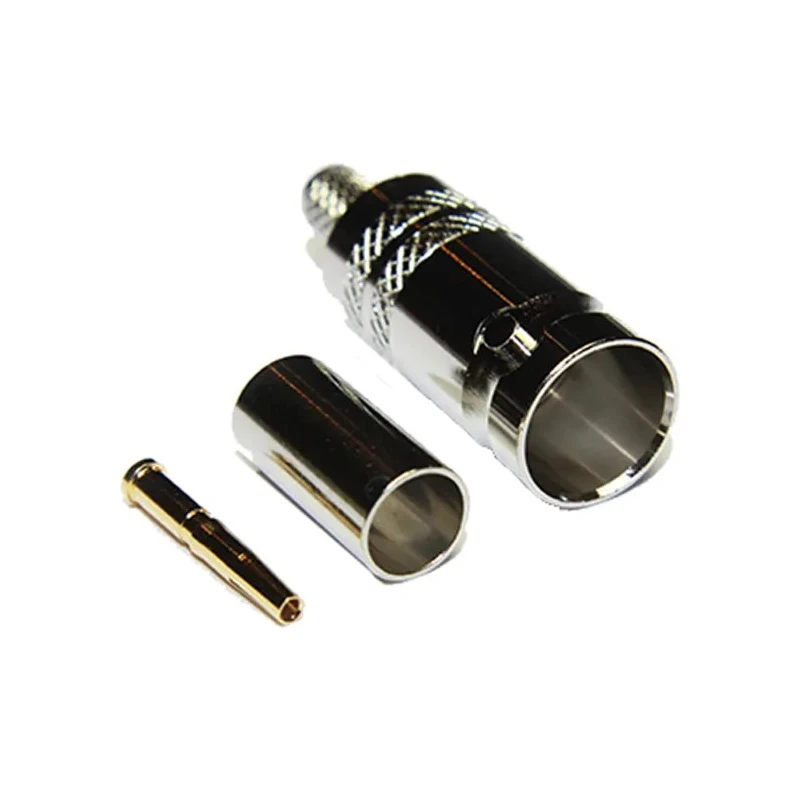

COAX Connectors BNC Series Coaxial Connector Cable Female BNC 75 Ω Straight Body Crimp 10-054-B36-FA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-054-B36-FA |
| Mount Type | Cable |
| Operating Frequency | 4.5GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | BELDEN 1855ENH |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- The connector features a nickel plated brass body ensuring corrosion resistance.
- Its centre contact is gold plated phosphor bronze for enhanced conductivity.
- Bayonet coupling mechanism provides secure quarter-turn connection and disconnection.
- Suitable for cable mount applications with BELDEN 1855ENH cable type compatibility.
- Operates reliably over a wide temperature range from -55°C to 155°C.
- Supports operating frequencies up to 4.5 GHz for high-frequency signal integrity.
- Meets SMPTE 292M and 424M standards, ideal for broadcast market use.
- Contact gender is female with normal polarity configuration.
Product Description
COAX Connectors 10-054-B36-FA BNC Series Coaxial Connector Cable is a high-quality female BNC connector designed for cable mounting with a straight body and crimp termination. It features a 75 Ω impedance ensuring compatibility with standard coaxial cable systems.
The connector body is made from nickel plated brass, providing robust corrosion resistance and durability. The centre contact is crafted from gold plated phosphor bronze, enhancing electrical conductivity and signal fidelity. Its bayonet coupling mechanism allows for quick quarter-turn connections, making installation and maintenance efficient and secure.
Intended for demanding applications such as broadcast and high-frequency telecommunications, this connector supports operating frequencies up to 4.5 GHz, ensuring signal clarity and integrity in professional environments. The connector performs reliably in extreme temperature conditions ranging from -55°C to 155°C, making it suitable for both indoor and outdoor use.
The BNC Series connectors conform to SMPTE 292M and 424M standards, widely recognized in the broadcast industry for standardized signal transmission quality. The connector’s nickel plated brass body resists corrosion for long service life.
Gold plating on the phosphor bronze contact ensures excellent electrical performance. Bayonet style quarter-turn coupling guarantees fast and secure connections. Compatible with BELDEN 1855ENH cable type providing flexibility in cable selection.
Wide operating temperature range supports diverse environmental conditions. Operates at frequencies up to 4.5 GHz for high-fidelity signal transmission. Designed to meet broadcast industry standards SMPTE 292M and 424M. Female connector gender with normal polarity suitable for typical coaxial cable applications.
This COAX Connectors BNC Series product is ideal for use in electronic components manufacturing, broadcast installations, telecommunications infrastructure, and professional video/audio signal transmission systems. Its rugged design and high precision make it highly reliable in industrial and commercial applications.
Explore more Coaxial Connectors and related accessories in the Electronics & Electricals category at EnvMart for comprehensive solutions tailored to professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 4.5 GHz, ensuring high-frequency signal integrity.
It has an impedance of 75 Ω, making it compatible with standard coaxial cable systems.
The connector operates reliably over a wide temperature range from -55°C to 155°C.
It is compatible with BELDEN 1855ENH cable type, providing flexibility in cable selection.
The body is made from nickel plated brass for corrosion resistance, and the centre contact is gold plated phosphor bronze for enhanced conductivity.
It features a bayonet coupling mechanism that allows for secure quarter-turn connections and disconnections.
The connector has a female contact gender with normal polarity configuration.
It uses a crimp termination type, suitable for cable mounting applications.
The connector is manufactured in Taiwan.
The connector is designed in a standard size with a straight orientation for easy installation.
It meets SMPTE 292M and 424M standards, which are recognized in the broadcast industry for signal transmission quality.
This model is ideal for use in electronic components manufacturing, broadcast installations, and telecommunications infrastructure.
