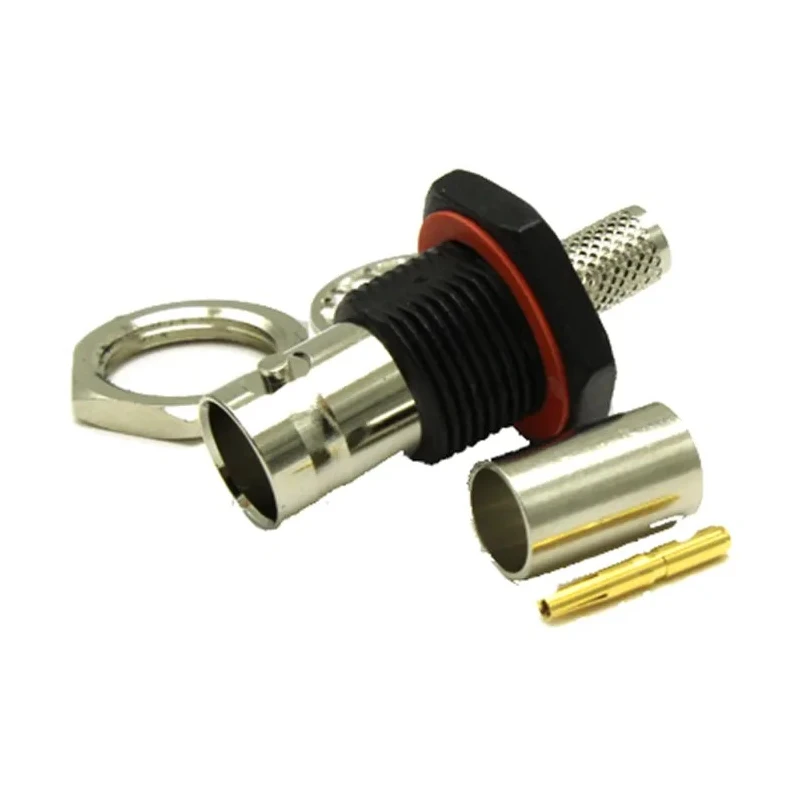

COAX Connectors BNC Series Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Crimp 10-258-B36-FB
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-258-B36-FB |
| Mount Type | Panel Mount |
| Operating Frequency | 4.5GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- The connector features a standard size panel mount design with insulated bulkhead jack.
- It has a gold plated phosphor bronze female contact and nickel plated brass body.
- The simple bayonet coupling provides quick and reliable quarter-turn connection and disconnection.
- Operates effectively within temperature range of -55°C to 155°C, suitable for harsh environments.
- Crimp termination type ensures secure cable connection for electrical stability.
- Designed with a 75 Ω impedance and normal polarity for optimal signal integrity.
- It complies with SMPTE 292M and 424M standards for broadcast applications.
- Manufactured in Taiwan, Province Of China ensuring quality and reliability.
Product Description
COAX Connectors 10-258-B36-FB BNC Series Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Crimp is engineered for precise and reliable connections in electronic systems, offering excellent signal quality up to 4.5 GHz frequency. This panel mount coaxial connector features a durable nickel-plated brass body combined with gold plated phosphor bronze female contact, providing corrosion resistance and long-lasting performance.
Its standard size and bulkhead design enable easy installation in electronic equipment panels. The BNC bayonet coupling mechanism requires only a quarter turn for secure fastening, making it widely used in test, measurement, broadcast, and connectivity industries.
The crimp termination ensures robust physical and electrical cabling connections, supporting normal polarity and 75 Ω impedance to reduce signal loss and interference. It functions reliably over a wide temperature range from -55°C to 155°C, suitable for industrial, laboratory, telecommunications, and broadcast environments.
Compliant with SMPTE 292M and SMPTE 424M standards, this connector meets the strict demands for digital video and data transmission applications. Manufactured in Taiwan, Province Of China, the connector exemplifies quality craftsmanship and performance assurance.
The connector features a standard size panel mount design with insulated bulkhead jack. It has a gold plated phosphor bronze female contact and nickel plated brass body. The simple bayonet coupling provides quick and reliable quarter-turn connection and disconnection.
Operates effectively within temperature range of -55°C to 155°C, suitable for harsh environments. Crimp termination type ensures secure cable connection for electrical stability. Designed with a 75 Ω impedance and normal polarity for optimal signal integrity.
It complies with SMPTE 292M and 424M standards for broadcast applications. Manufactured in Taiwan, Province Of China ensuring quality and reliability.
Ideal for industrial electronic assembly, telecommunications equipment, laboratory instrumentation, TV broadcast infrastructures, and professional audio/video systems. Browse the Coaxial Connectors category at EnvMart for compatible products and trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 4.5 GHz, ensuring excellent signal quality for various applications.
It operates effectively within a temperature range of -55°C to 155°C, making it suitable for harsh environments.
This coaxial connector features a crimp termination type, which ensures a secure cable connection for electrical stability.
This model is designed with a 75 Ω impedance, which helps to optimize signal integrity and reduce signal loss.
It has a gold plated phosphor bronze female contact and a nickel plated brass body, providing corrosion resistance and durability.
Yes, it complies with SMPTE 292M and SMPTE 424M standards, making it suitable for broadcast applications.
This connector features a panel mount design, allowing for easy installation in electronic equipment panels.
The orientation of this model is straight, facilitating straightforward connections in various setups.
The contact gender of this model is female, suitable for connecting to male counterparts in coaxial applications.
This connector is manufactured in Taiwan, Province Of China, ensuring quality and reliability.
It is ideal for use in industrial electronic assembly, telecommunications equipment, laboratory instrumentation, and TV broadcast infrastructures.
It utilizes a simple bayonet coupling mechanism that requires only a quarter turn for secure fastening and easy disconnection.
