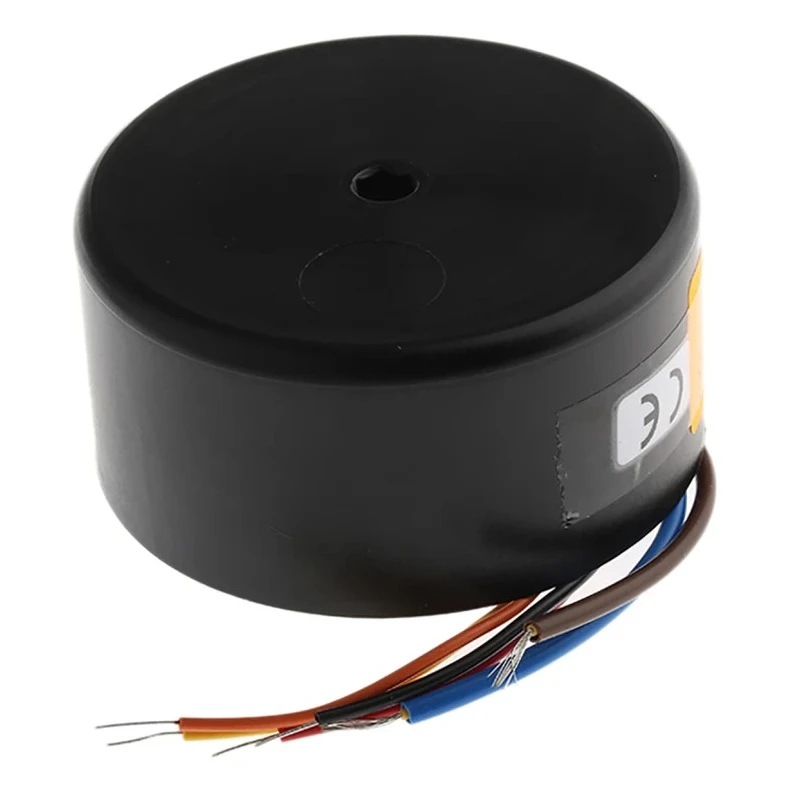

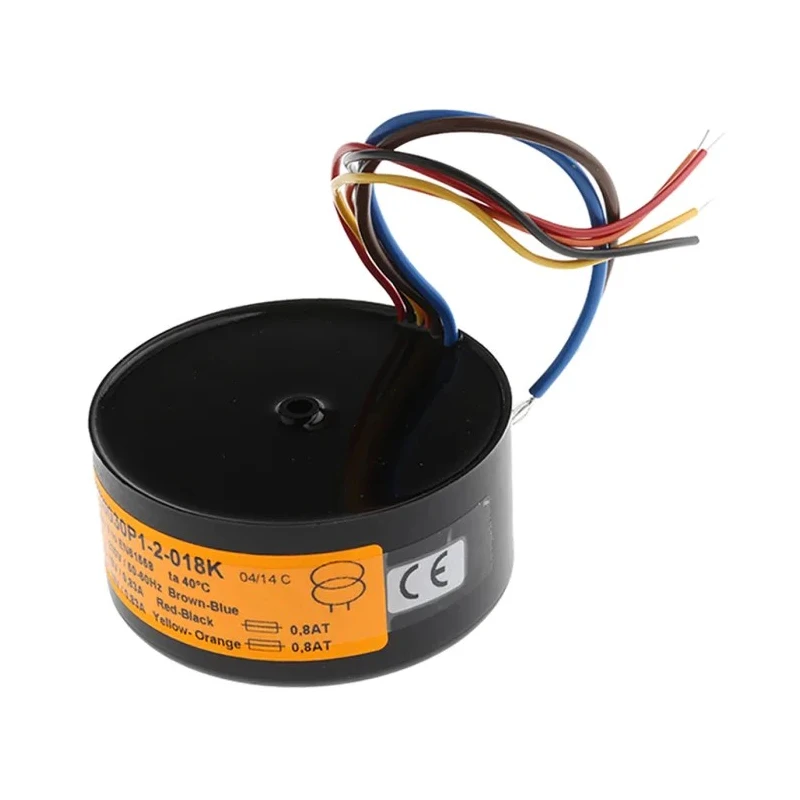

Nuvotem Talema 230 V ac 12 V ac Toroidal Transformer 2 Output 30 VA 50-60 Hz 0030P1-2-018K

Nuvotem Talema 0030P1-2-018K Toroidal Transformer features a single 230 V ac primary winding with twin 12 V ac secondary windings rated at 30 VA power. Designed for industrial and electronic applications requiring low noise and efficient power conversion, this transformer supports 2 outputs that can be connected in series, parallel, or used independently.

The encapsulated construction uses UL94-V0 certified nylon 6.6 case material ensuring safety and durability. With a diameter of 81.3 mm and height of 39.1 mm, the transformer offers a compact footprint suitable for mounting via a centre hole fixing (fixing bolt not included).

Operating reliably between 50 Hz and 60 Hz frequency, it withstands maximum temperatures of up to 180°C. The design incorporates low iron losses, minimal magnetic field radiation, and reduced induced noise, making it ideal for sensitive electronics and industrial machinery.

Electrical certifications such as UL5, EN61558, BS415, EN60065, VDE0550, and UL506 affirm the high-quality manufacturing standards. The product undergoes 100% electrical and flash testing to meet stringent performance requirements.

Typical use cases include power supplies and distribution systems, industrial controls, and commercial electronics that benefit from toroidal transformers' compact and efficient form factor.

Encapsulated design with UL94-V0 rated nylon 6.6 case for high safety. Two secondary windings configurable in series, parallel or independent use. Operates efficiently from 50 Hz to 60 Hz frequency range. Compact size with 81.3 mm diameter and 39.1 mm height for easy mounting.

Maximum operating temperature reaches up to 180°C for reliability. Low iron loss and very low magnetic radiation for quiet operation. Fully electrically and flash tested to comply with multiple standards. Meets several certifications including UL5, EN61558, BS415, EN60065, VDE0550, and UL506.
