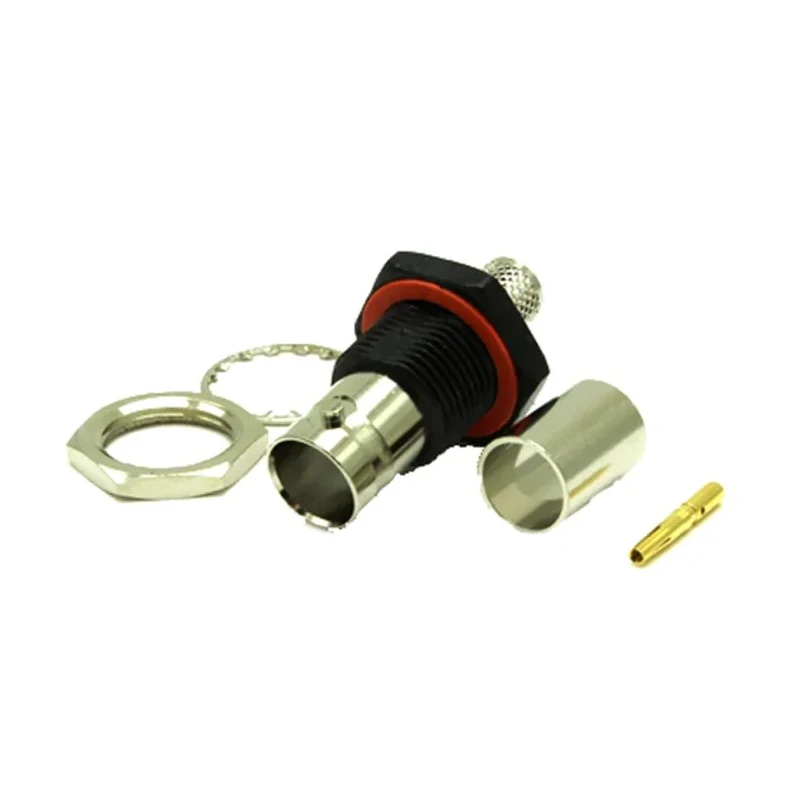

COAX Connectors BNC Series Coaxial Connector Panel Mount Female BNC 75Ω Straight Body Crimp 10-258-B36-FC
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-258-B36-FC |
| Mount Type | Panel Mount |
| Operating Frequency | 4.5GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | BELDEN 1694A, Draka 1.0,4.8A,F |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- This panel mount connector features a durable nickel plated body for robustness.
- It supports an impedance of 75 ohms ensuring compatibility with standard coaxial cables.
- The gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
- The connector is designed with a straight body and a female contact gender for versatile mounting.
- It operates reliably within a wide temperature range from -55°C to 155°C.
- The termination type is crimp, enabling secure cable attachment.
- It supports an operating frequency of up to 4.5 GHz, suitable for high-frequency signals.
- This BNC series connector is compatible with cables such as BELDEN 1694A and Draka 1.0,4.8A,F.
Product Description
COAX Connectors 10-258-B36-FC BNC Series Coaxial Connector Panel Mount Female BNC with 75Ω impedance and straight body is designed to deliver professional-grade RF connectivity for electronic and electrical applications.
Constructed with a nickel-plated brass body and gold-plated phosphor bronze contacts, this connector ensures durability and excellent electrical performance. Its crimp termination method allows for secure and stable cable attachment, compatible with industrial coaxial cables like BELDEN 1694A and Draka 1.0,4.8A,F.
It is engineered to operate at frequencies up to 4.5 GHz and withstand temperature extremes ranging from -55°C to 155°C, meeting demanding environmental conditions in industrial, communications, laboratory, and test and measurement setups.
The connector's simple bayonet coupling mechanism requires only a quarter turn for reliable connection and disconnection, making it widely suitable for professional RF coaxial cable terminations.
Panel mount configuration and female connector gender provide versatile mounting options in a variety of electronic component assemblies. Nickel plated brass body ensures corrosion resistance and ruggedness. Gold plated phosphor bronze contacts guarantee excellent conductivity and signal integrity.
Supports operation up to 4.5 GHz for high-frequency applications. Compatible with standard coaxial cables including BELDEN 1694A and Draka series. Wide operational temperature range from -55°C to 155°C for demanding environments.
Simple bayonet coupling design for quick connect/disconnect. Panel mount type suitable for stable installation in electronic equipment.
This connector is ideal for use in communications systems, broadcasting, laboratory instrumentation, electrical test equipment, and other industrial and laboratory applications requiring dependable RF connections.
Explore the extensive range of Coaxial Connectors on EnvMart for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an impedance of 75 ohms, ensuring compatibility with standard coaxial cables.
It operates reliably at frequencies up to 4.5 GHz, making it suitable for high-frequency applications.
The connector features a crimp termination type, allowing for secure cable attachment.
This unit can operate within a wide temperature range from -55°C to 155°C, suitable for demanding environments.
It has a nickel-plated brass body and gold-plated phosphor bronze contacts, providing excellent conductivity and corrosion resistance.
It is compatible with cables such as BELDEN 1694A and Draka 1.0, 4.8A, F.
This model features a panel mount configuration, suitable for stable installation in electronic equipment.
The connector has a female contact gender, allowing for versatile mounting options.
The body of this connector is nickel plated, which enhances its durability and corrosion resistance.
It features a straight body orientation, which is common for many applications.
It is ideal for use in communications systems, broadcasting, laboratory instrumentation, and electrical test equipment.
The country of origin for this model is Taiwan.
