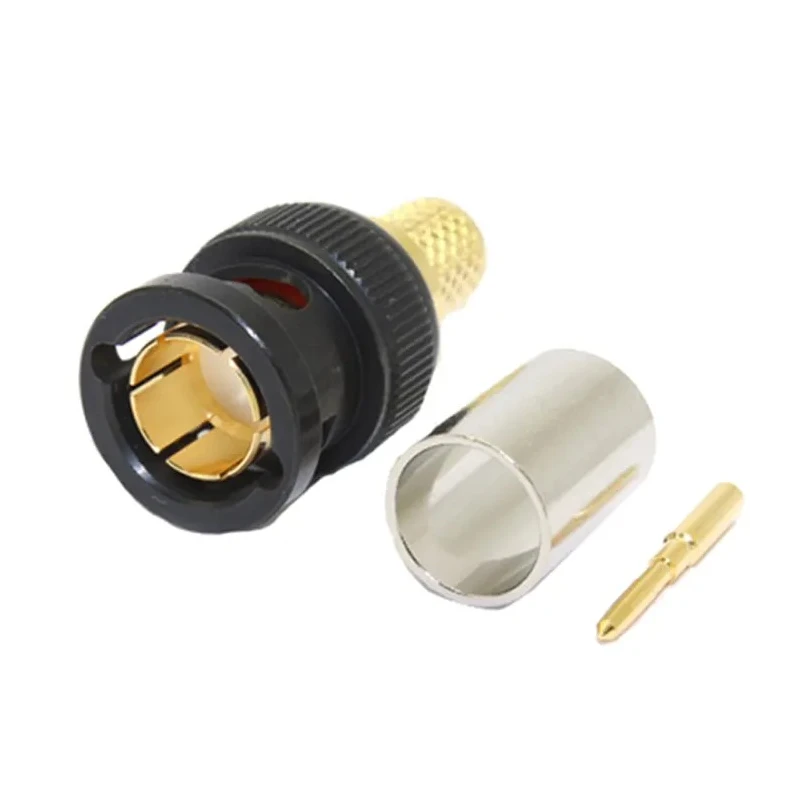

COAX Connectors BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp 10-005-W66-FI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-005-W66-FI |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | BELDEN 1794A |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- This BNC coaxial connector features a 75 Ω impedance for optimal signal clarity.
- The connector has a male contact gender with a straight body orientation.
- Gold plating on the brass body and contacts ensures corrosion resistance and signal integrity.
- Designed for cable mount using crimp termination type suitable for BELDEN 1794A cable type.
- Operates reliably within a temperature range of -55°C to 155°C, suitable for harsh environments.
- Supports operating frequencies up to 6 GHz, ideal for broadcast and telecom applications.
- The quick bayonet coupling mechanism allows easy connect and disconnect with just a quarter turn.
- Made in Taiwan, ensuring consistent manufacturing quality and performance.
Product Description
COAX Connectors 10-005-W66-FI BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp is an expertly engineered coaxial connector designed to provide stable low loss performance for demanding RF applications. Featuring a 75 Ω impedance and gold-plated brass contacts and body, it ensures excellent signal transmission with minimal interference.
This straight body BNC connector offers a simple bayonet coupling that requires only a quarter turn to connect or disconnect, making it highly user-friendly. The crimp termination type is compatible with BELDEN 1794A cable, providing secure and reliable cable connections.
Operating at frequencies up to 6 GHz and temperatures ranging from -55°C to 155°C, this connector is ideal for high definition broadcast, telecommunications, instrumentation, and security systems. The gold plating on both the contact and body helps resist corrosion and maintain signal integrity over time.
Manufactured in Taiwan, Province Of China, the 10-005-W66-FI meets the SMPTE 292M, 424M, and ST208-1 standards, making it a trusted choice in professional environments demanding superior performance.
This BNC connector provides 75 Ω impedance for signal clarity. It has a male contact and connector gender with a straight orientation. Gold-plated brass body and contacts enhance durability and performance. Supports a wide operating temperature range from -55°C to 155°C.
Enables quick quarter-turn bayonet coupling for easy connection. Compatible with BELDEN 1794A cable using crimp termination. Suitable for broadcast, telecom, and security applications. Manufactured in Taiwan ensuring quality control and reliability.
Explore the full range of Coaxial Connectors and ensure your equipment utilizes robust, high-quality components for reliable data and signal transmission. COAX Connectors products provide trusted solutions for industrial, commercial, and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC coaxial connector features a 75 Ω impedance, which is optimal for signal clarity in RF applications.
It supports operating frequencies up to 6 GHz, making it suitable for high-definition broadcast and telecommunications applications.
The connector operates reliably within a temperature range of -55°C to 155°C, allowing it to function in harsh environments.
This model is designed for cable mount using crimp termination and is compatible with BELDEN 1794A cable type.
It features a gold-plated brass body and contacts, which enhance corrosion resistance and signal integrity.
The quick bayonet coupling mechanism allows for easy connection and disconnection with just a quarter turn, making it user-friendly.
This model has a male contact gender, suitable for various applications requiring male connections.
Yes, it meets the SMPTE 292M, 424M, and ST208-1 standards, making it a trusted choice in professional settings.
The connector has a straight body orientation, which is common for many coaxial applications.
It uses a crimp termination type, providing a secure connection when used with compatible cables.
This model is classified as a standard size connector, suitable for various applications.
It is manufactured in Taiwan, ensuring consistent manufacturing quality and performance.
