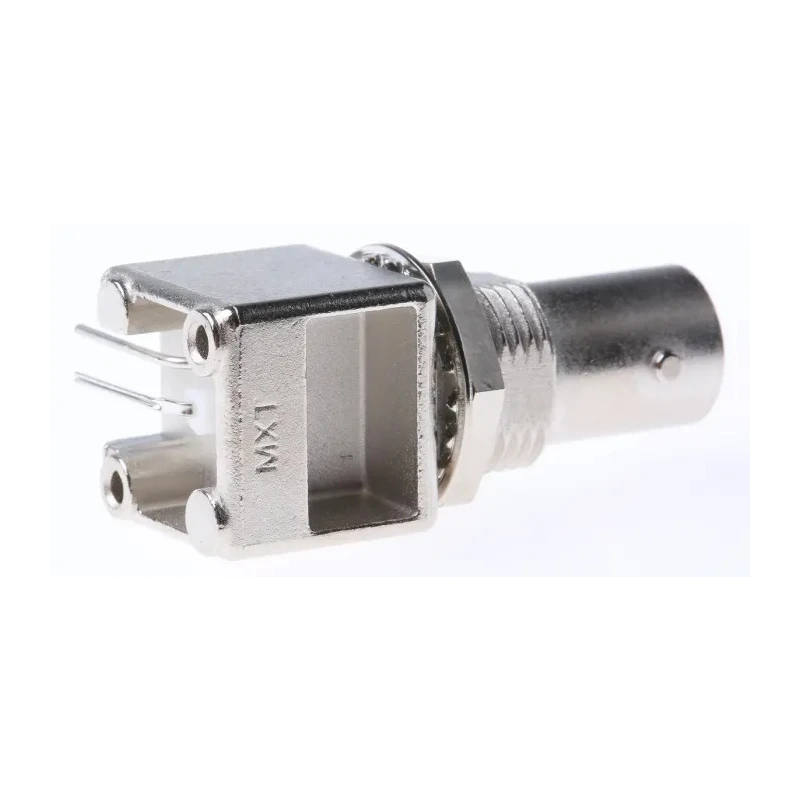

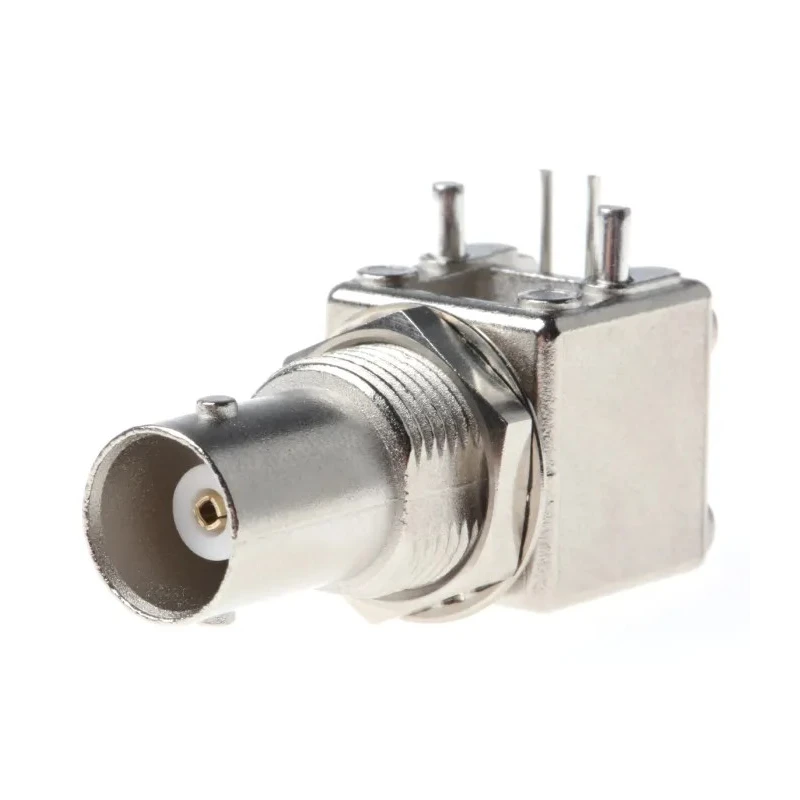

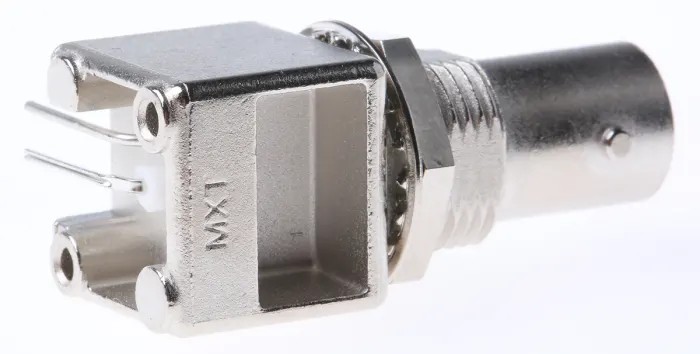

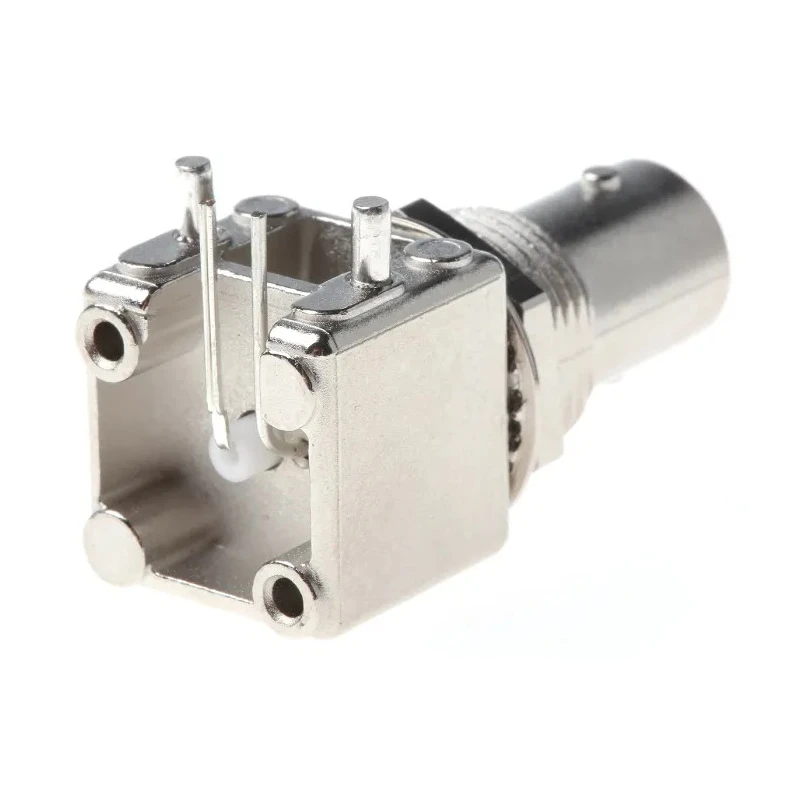

Molex 73148 Series Coaxial Connector PCB Female BNC Miniature 50 Ω 2GHz Right Angle Through Hole 73171-4360
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Miniature |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | PCB |
| Operating Frequency | 2GHz |
| Contact Material | Phosphor Bronze |
| Series | 73148 |
| Termination Type | Through Hole |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Miniature size allows for compact PCB mounting.
- Gold plated phosphor bronze contacts ensure high electrical conductivity.
- Die-cast zinc alloy body with nickel plating enhances durability and corrosion resistance.
- Bayonet quick-release BNC system ensures fast connection and disconnection.
- Through-hole mount type provides secure and stable PCB attachment.
- Suitable for consumer electronics, measurement equipment, and industrial communication networks.
- Female connector gender with normal polarity improves compatibility.
- Includes bulkhead mounting for added mechanical stability.
Product Description
Molex 73171-4360 is a 73148 Series coaxial connector designed for PCB mounting with a female BNC type and a 50 Ω impedance.
This miniature-sized connector measures approximately 15.59 mm height, 35.43 mm length, and 14.66 mm depth, ideal for space-constrained electronic designs requiring high-frequency operation up to 2GHz.
The connector features gold plated phosphor bronze contacts delivering excellent electrical conductivity and signal integrity. Its body is made from die-cast zinc alloy with nickel plating, offering durability and corrosion resistance even in challenging industrial environments.
The right angle orientation and through-hole termination type facilitate straightforward PCB integration. Its bayonet quick-release mechanism ensures fast and reliable connections and disconnections, enhancing maintenance efficiency.
Miniature size enables compact PCB integration. High conductivity gold plated contacts. Durable nickel-plated zinc alloy body resists corrosion. Bayonet quick-release for ease of connection. Through-hole mounting for secure attachment.
Operates at frequencies up to 2GHz. Designed for consumer electronics and industrial communication use. Includes bulkhead mount for enhanced stability. This product is manufactured in Taiwan, Province Of China, and is supplied in new condition.
The Molex 73171-4360 Coaxial Connector is well suited for applications in industrial communication networks, measurement equipment, and consumer electronics where dependable RF connections and compact form factor are required.
Explore more Molex connectors and coaxial components in EnvMart's extensive electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 2GHz, making it suitable for high-frequency applications.
It features a through-hole mount type, providing secure and stable attachment to PCBs.
The impedance of this connector is 50Ω, which is standard for many RF applications.
The connector has a body made from die-cast zinc alloy with nickel plating, and the contacts are made from gold plated phosphor bronze for high electrical conductivity.
This model has a right angle orientation, facilitating easier integration into compact spaces on PCBs.
It features a female connector gender, which improves compatibility with various systems and devices.
Yes, it includes bulkhead mounting for added mechanical stability during use.
This connector is classified as miniature size, making it ideal for space-constrained electronic designs.
The contacts are gold plated, which ensures excellent electrical conductivity and signal integrity.
This product is manufactured in Taiwan, Province Of China.
It is suitable for use in consumer electronics, measurement equipment, and industrial communication networks.
The connector utilizes a through hole termination type, which is common for PCB applications.
