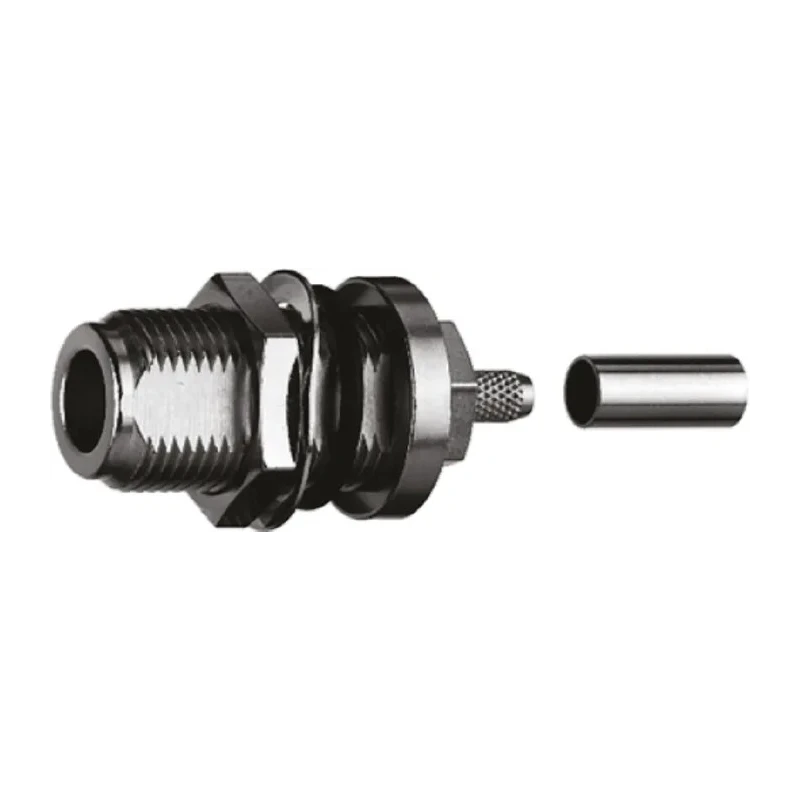

Telegartner N Series Panel Mount Female N Coaxial Connector 50 Ω Straight Body Solder J01021H0089
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01021H0089 |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | N |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG142B/U, RG223/U, RG400/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | N Connector |
| Body Plating | Copper Nickel Alloy |
Key Features
- Designed for panel mounting applications with bulkhead design for secure fitting.
- Operates at frequencies up to 11 GHz for high-frequency signal transmission.
- Compatible with RG142B/U, RG223/U, and RG400/U cable types.
- Durable copper nickel alloy body plating ensures corrosion resistance.
- Suitable for operating temperatures from -65°C to 165°C.
- Contact material is beryllium copper with silver plating for excellent conductivity.
- Standard size ensuring compatibility with common coaxial components.
- Connector gender is female with normal polarity ensuring standard connection practices.
Product Description
Telegartner J01021H0089 N Series Panel Mount Female N Coaxial Connector is engineered for high-quality RF coaxial connections in industrial, laboratory, and telecommunications applications. Featuring a straight body and solder termination, this connector supports a 50 Ω impedance which is critical for minimizing signal loss in high-frequency circuits.
The bulkhead panel mount design allows for secure and robust installation in electronic enclosures or equipment panels. With a frequency range supporting up to 11 GHz, it meets demanding telecommunication and measurement device requirements.
The connector is compatible with various coaxial cables including RG142B/U, RG223/U, and RG400/U, providing versatile usage options. It is constructed with a copper nickel alloy body plating, ensuring excellent corrosion resistance and durability in harsh environments.
The contact components use beryllium copper with silver plating, promoting reliable conductivity and signal integrity. This connector operates over a wide temperature range from -65°C to 165°C, making it suitable for diverse environmental conditions.
The N Series design maintains a standard size and normal polarity, facilitating easy integration with existing coaxial systems. Designed for panel mounting with a bulkhead jack for stable fixture. Supports operating frequency up to 11 GHz for high-frequency signal transmission.
Compatible with multiple coax cable types: RG142B/U, RG223/U, RG400/U. Body plated with copper nickel alloy providing strong corrosion resistance. Wide operating temperature range from -65°C to 165°C ensures reliability.
Silver-plated beryllium copper contacts offer high conductivity and durability. Standard size and female connector gender with normal polarity. This product is made in Germany and is ideal for use in telecommunications, electronic testing, laboratory settings, and industrial RF applications.
Discover more quality Coaxial Connectors and electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner N Series Panel Mount Female N Coaxial Connector operates at a maximum frequency of 11 GHz, suitable for high-frequency signal transmission.
This connector is compatible with RG142B/U, RG223/U, and RG400/U cable types, providing versatile usage options for various applications.
The impedance rating of this connector is 50 Ω, which is critical for minimizing signal loss in high-frequency circuits.
The contact components are made of beryllium copper with silver plating, promoting reliable conductivity and signal integrity.
It operates effectively over a wide temperature range from -65°C to 165°C, making it suitable for diverse environmental conditions.
This model features a solder termination type, which is common for secure connections in electronic applications.
The body of this connector is plated with a copper nickel alloy, ensuring strong corrosion resistance.
The connector has a straight orientation, which is typical for panel mount applications.
This connector is a female type with normal polarity, ensuring compatibility with standard connection practices.
The Telegartner N Series Connector is made in Germany, reflecting its quality and engineering standards.
It features a standard size, ensuring compatibility with common coaxial components and systems.
This model is ideal for telecommunications, electronic testing, laboratory settings, and industrial RF applications.
