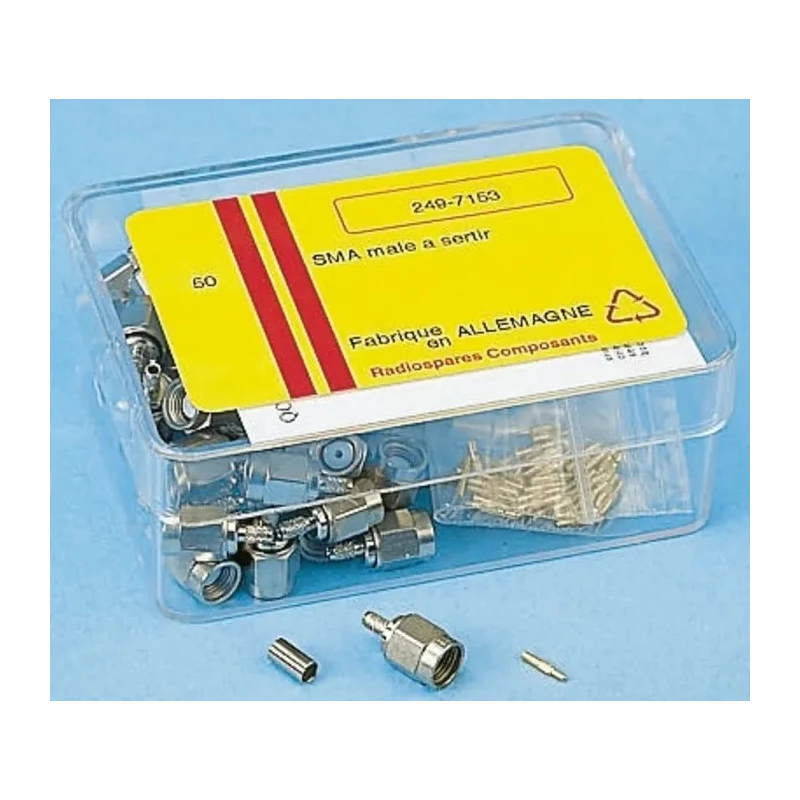

Telegartner SMA Series Coaxial Connector Cable Male SMA, 50 Ω, Straight Body Crimp J01150A0019

Telegartner J01150A0019 SMA Series Coaxial Connector Cable is a high-quality male SMA Coaxial Connector designed for reliable RF signal transmission. It features a 50 Ω impedance and is suitable for applications requiring stable performance up to 12.4 GHz frequency.

This SMA connector cable has a straight body with crimp termination and fits standard RG188A/U, RG316/U, and RG-174U cables. The connector body is nickel plated over brass, providing robust mechanical strength and corrosion resistance, while the inner conductors feature gold plating over nickel for optimal electrical contact.

Its thermal operating range extends from -65°C to 165°C, making it highly versatile for use in industrial, laboratory, telecommunications, and electronic manufacturing environments.

The male contact is constructed from beryllium copper, ensuring excellent conductivity. The connector complies with standard mechanical dimensions and offers normal polarity, making it compatible with typical SMA mating connectors.

Designed for use with RG188A/U, RG316/U, and RG-174U cable types. Nickel-plated brass housing with PTFE insulation improves durability. High frequency operation up to 12.4 GHz. Wide operating temperature range from -65°C to 165°C.

Gold plated beryllium copper contacts for signal integrity. Standard size connector with straight body orientation. Crimp termination type ensures secure cable connection. Manufactured in Germany ensuring stringent quality control.

This product is widely used in telecommunications, instrumentation, RF and microwave applications, aerospace, and industrial control systems where high-quality coaxial connections are critical.
