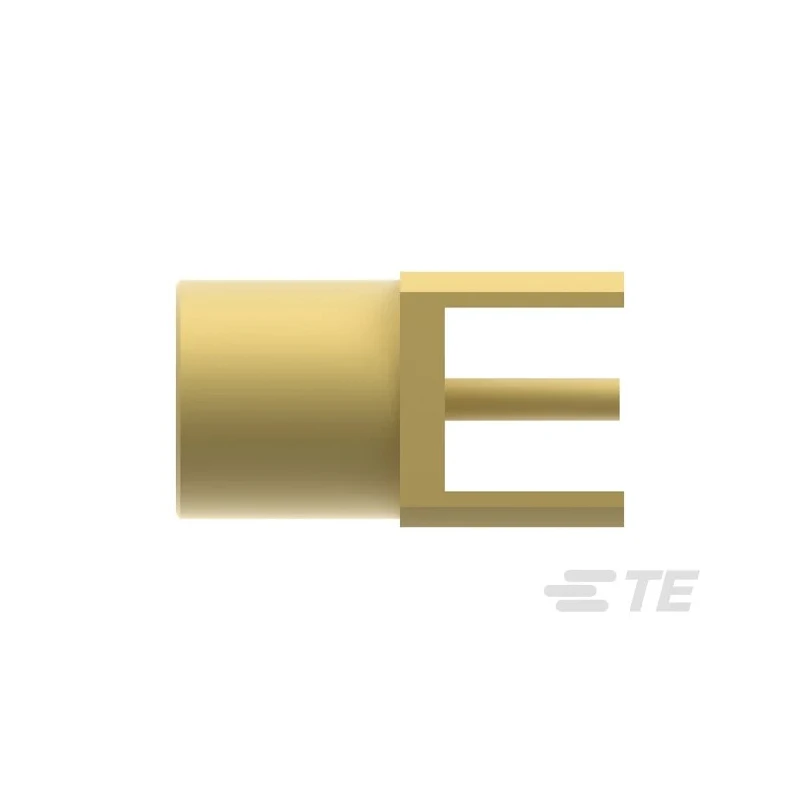

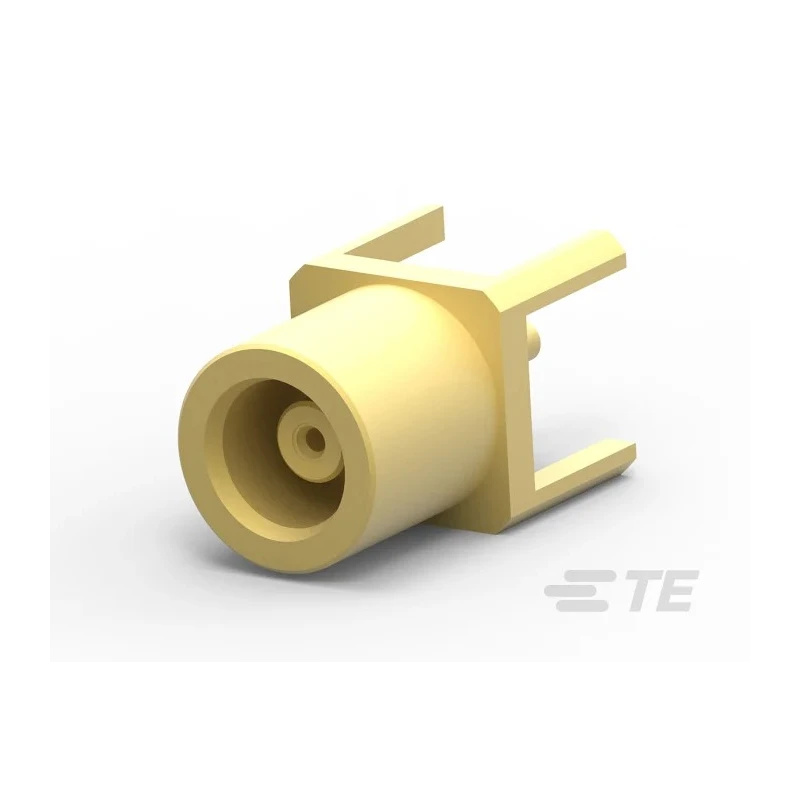

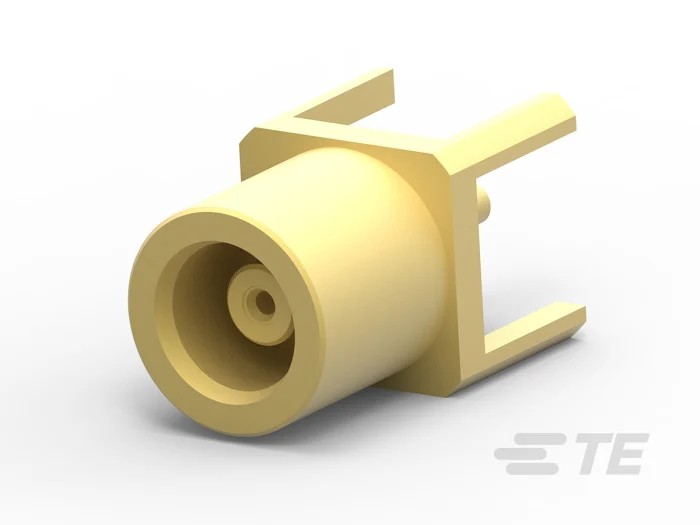

TE Connectivity MCX Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body Solder 1-1337581-0
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Coaxial connector type MCX provides high-frequency performance up to 6 GHz.
- Features a gold-plated brass body for superior corrosion resistance and signal integrity.
- Designed with a beryllium copper contact, plated with gold for enhanced conductivity.
- Supports a temperature range from -65°C to 165°C for robust industrial applications.
- Suitable for printed circuit board mounting with four legs for secure attachment.
- Snap-on coupling mechanism ensures quick and reliable connections.
- Recommended PCB thickness of 3.2 mm and vertical PCB mount orientation.
- Single port configuration with a standard size square body shape.
Product Description
TE Connectivity 1-1337581-0 MCX Series Coaxial Connector is a through hole female RF connector designed with a straight body and solder termination. It operates at an impedance of 50 Ω and supports frequencies up to 6 GHz, making it suitable for professional and industrial electronic applications. Manufactured with high-quality materials, including a gold-plated brass body and beryllium copper contact plated with gold, this connector ensures excellent electrical performance and durability.
The connector is designed for PCB mounting with four legs, a recommended PCB thickness of 3.2 mm, and a vertical mounting orientation for stable assembly. Its snap-on coupling mechanism facilitates quick and secure attachments while maintaining reliable RF contact. The product operates across a wide temperature range from -65°C to 165°C, supporting demanding environmental conditions.
This MCX connector features a square body shape and uses PTFE as the dielectric material, providing consistent insulation and reducing signal interference. The recommended PCB tail length is 4 mm with a height above PCB of 10 mm, ensuring compatibility with a variety of board designs and layouts.
Applicable in various industrial sectors including communications, test and measurement, aerospace, and instrumentation, this connector delivers robust electrical and mechanical performance essential for high-frequency transmission systems.
High frequency operation up to 6 GHz. Gold-plated brass body and gold-plated beryllium copper contacts for longevity and signal reliability. Through hole solder termination for a strong mechanical bond. Snap-on coupling for ease of installation and maintenance.
Wide operating temperature from -65°C to 165°C suitable for harsh environments. Single port connector with a standard size and square body shape. PTFE dielectric for stable electrical performance. PCB mounting with four legs and vertical orientation for secure fitment.
Packaged in sets of 50 pieces, ideal for large-scale manufacturing. Explore the wide range of Coaxial Connectors from TE Connectivity available at EnvMart for industrial, laboratory, telecommunications, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This MCX series coaxial connector operates at a maximum frequency of 6 GHz, making it suitable for high-frequency applications.
The impedance rating of this connector is 50 Ω, which is standard for many RF applications.
It features a gold-plated brass body and a beryllium copper contact that is also plated with gold, ensuring good conductivity and corrosion resistance.
The recommended PCB thickness for mounting this connector is 3.2 mm, ensuring a secure fit.
This model operates within a temperature range of -65°C to 165°C, suitable for various industrial environments.
This connector uses a solder termination type, providing a strong mechanical bond when mounted on a PCB.
It is designed as a single port connector with a straight body orientation, facilitating straightforward installation.
The dielectric material used in this connector is PTFE, which helps maintain stable electrical performance and reduces signal interference.
The height above the PCB for this connector is 10 mm, allowing for compatibility with various board designs.
This connector is packaged in sets of 50 pieces, making it suitable for large-scale manufacturing needs.
It supports through hole mounting with four legs for secure attachment to the PCB.
This connector is applicable in various sectors including communications, test and measurement, aerospace, and instrumentation.
