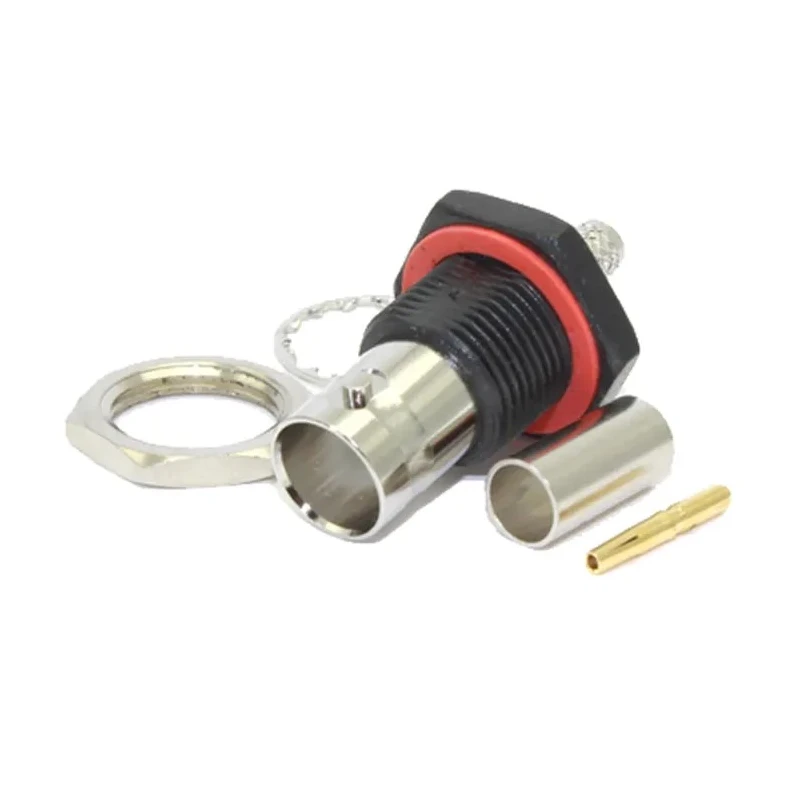

COAX Connectors BNC Series Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Crimp 10-258-B36-FA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | COAX Connectors |
| Orientation | Straight |
| Model | 10-258-B36-FA |
| Mount Type | Panel Mount |
| Operating Frequency | 4.5GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | BELDEN 1855ENH, Draka 0.6,2.8A,F |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- This coaxial connector features a straight body and panel mount type for secure installation.
- It provides 75 Ω impedance ensuring signal integrity for high-frequency applications.
- The connector has a female gender and crimp termination for reliable cable connection.
- Constructed with nickel plated brass body and gold plated phosphor bronze contacts for corrosion resistance.
- Operates reliably between -55°C to 155°C suitable for harsh environments.
- Compatible with cable types including BELDEN 1855ENH and Draka 0.6,2.8A,F.
- Meets SMPTE 292M and 424M standards, ideal for broadcast and professional video use.
- Simple bayonet coupling mechanism allows quick connect/disconnect with a quarter turn.
Product Description
COAX Connectors 10-258-B36-FA BNC Series Coaxial Connector is a precision panel mount female BNC connector designed for professional RF coaxial applications with 75 Ω impedance and a straight body configuration. It operates up to 4.5 GHz, making it suitable for high frequency transmission including broadcast and telecommunications.
The connector features gold plated phosphor bronze contacts and a nickel plated brass body, providing enhanced corrosion resistance and electrical performance. The termination type is crimp, which ensures secure and reliable connection to compatible coaxial cables such as BELDEN 1855ENH and Draka variants.
Operating temperature ranges from -55°C to 155°C, allowing reliable use in demanding industrial and outdoor conditions. The bulkhead mounting option provides firm panel installation with easy access for maintenance and replacement.
This BNC series connector complies with SMPTE 292M and 424M standards, confirming its suitability for high speed video and professional broadcast equipment. This coaxial connector features a straight body and panel mount type for secure installation.
It provides 75 Ω impedance ensuring signal integrity for high-frequency applications. The connector has a female gender and crimp termination for reliable cable connection. Constructed with nickel plated brass body and gold plated phosphor bronze contacts for corrosion resistance.
Operates reliably between -55°C to 155°C suitable for harsh environments. Compatible with cable types including BELDEN 1855ENH and Draka 0.6,2.8A,F. Meets SMPTE 292M and 424M standards, ideal for broadcast and professional video use.
Simple bayonet coupling mechanism allows quick connect/disconnect with a quarter turn.
This connector is ideal for various industrial, laboratory, broadcast, telecommunications, and manufacturing applications requiring dependable coaxial cable connections. Explore more Coaxial Connectors and electronic components at EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 75 Ω impedance, ensuring signal integrity for high-frequency applications.
It operates up to 4.5 GHz, making it suitable for high-frequency transmission in broadcast and telecommunications.
This connector operates reliably between -55°C to 155°C, allowing use in demanding industrial and outdoor conditions.
It is compatible with cable types including BELDEN 1855ENH and Draka 0.6,2.8A,F.
The connector features a crimp termination type, ensuring a secure and reliable connection to compatible coaxial cables.
It has a nickel plated brass body and gold plated phosphor bronze contacts for enhanced corrosion resistance and electrical performance.
This model is designed for panel mount installation, providing secure and firm attachment to panels.
The connector has a female gender, making it suitable for connecting to male counterparts in coaxial applications.
Yes, it complies with SMPTE 292M and 424M standards, confirming its suitability for high-speed video and professional broadcast equipment.
The connector features a straight body orientation, which is typical for many coaxial applications.
This product is manufactured in Taiwan.
