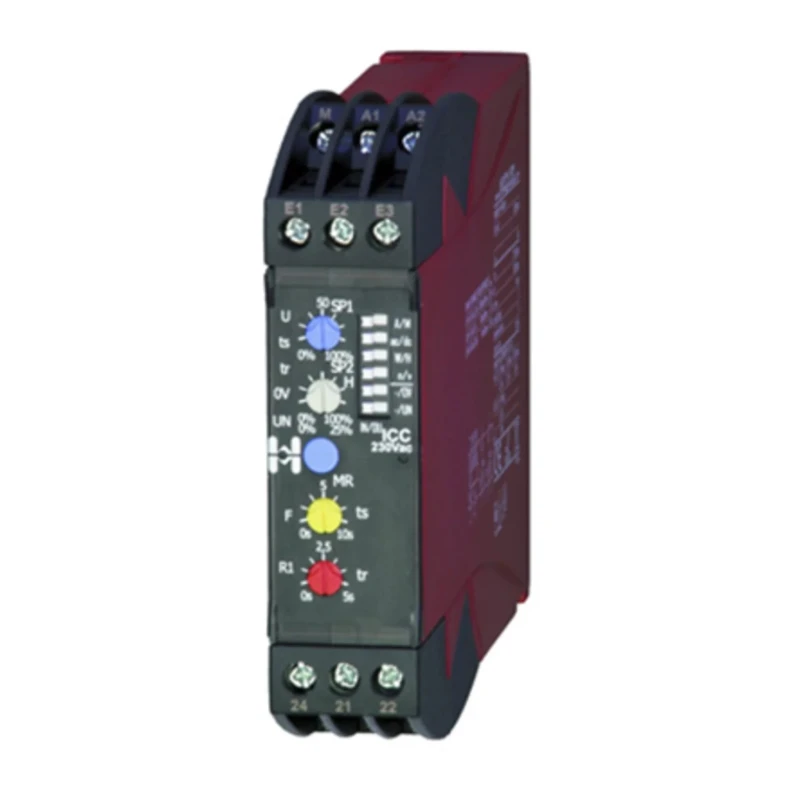

Hiquel Monitoring Relay 1 Phase DPDT DIN Rail Mount 6A 24V AC ICC.24AC

Hiquel ICC.24AC Monitoring Relay is a compact and reliable device designed to monitor single-phase AC or DC current signals. Featuring a double pole double throw (DPDT) contact configuration, this DIN Rail mount relay supports maximum current sensing up to 6A with a 24V AC supply voltage.

The ICC series provides precision through three selectable current ranges and various measuring functions, enhancing ease of use in industrial automation, electrical panels, and control systems. Users can adjust alarm thresholds, reaction time, and start delay times quickly using rotary switches on the front panel. The device supports both automatic and manual reset modes, includes an alarm memory function, and features a relay output contact that can be inverted as needed. The LED indicator on the front confirms operation status at a glance.

Key technical features include screw terminal connections, a time delay ranging from 0 to 10 seconds, and compliance with international standards such as RoHS and CE. Its compact 22.5 mm DIN Rail housing facilitates easy integration into electrical distribution and automation systems.

Operating temperature limits ensure robust performance up to 60°C, suitable for demanding industrial environments. The relay’s dimensions of 22.5 mm width, 93.5 mm length, and 110 mm height fit standard rails, making it ideal for electrical and automation engineering applications requiring dependable current monitoring.

Monitors single phase current signals precisely with configurable alarm functions. DPDT contact configuration enables flexible switching operations. Compact 22.5 mm DIN Rail mount suitable for various control panels. Adjustable current thresholds and timing via easy-access rotary switches.

Automatic/manual reset modes and alarm memory enhance operational reliability. Output relay contact invertible to suit specific control logic needs. LED status indicator provides immediate operational feedback. Robust operation within an ambient temperature range up to 60°C.

Complies with RoHS and CE standards ensuring quality and safety. Screw terminal connections facilitate secure and easy wiring.

This Hiquel monitoring relay is well suited for industrial, construction, HVAC, and electrical automation uses, providing dependable current sensing and control. Integrate with confidence in manufacturing plants, electrical substations, and process control systems. Explore more quality Monitoring Relays and contactors at EnvMart for your industrial and automation needs.
