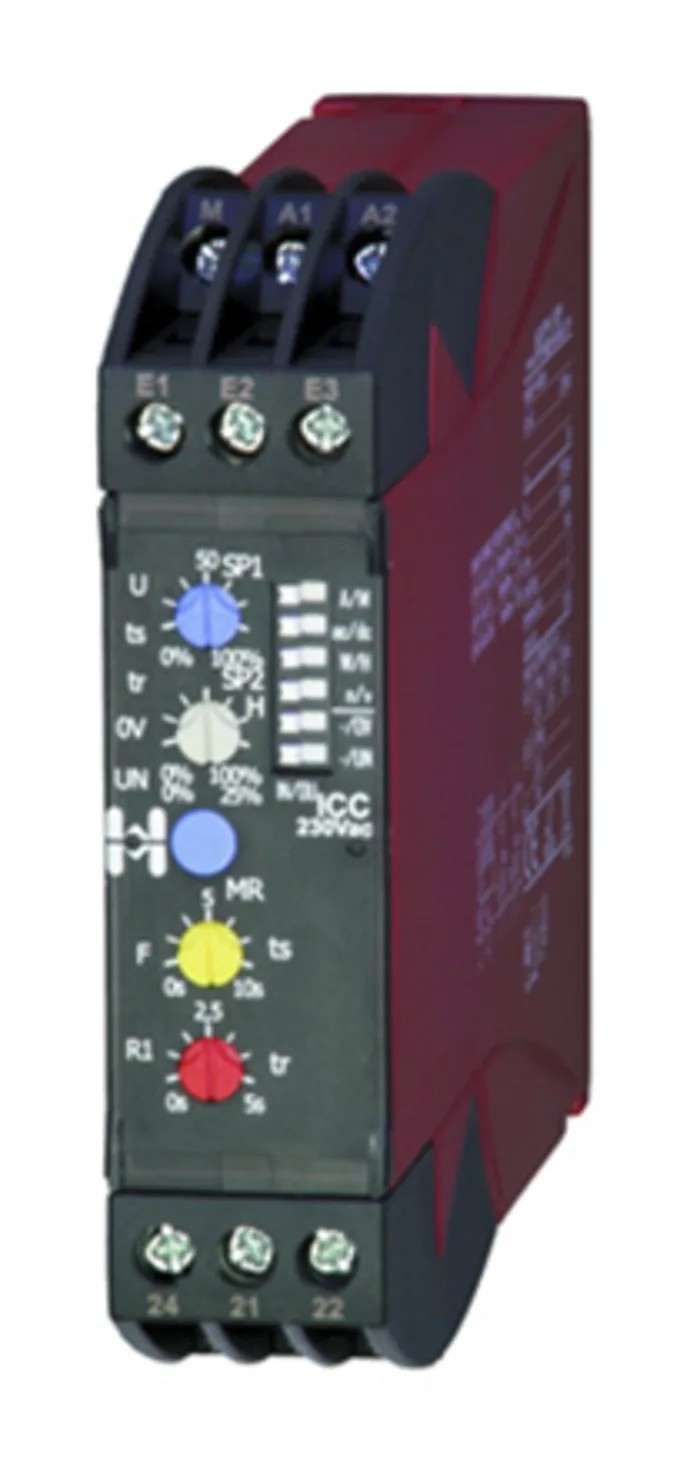

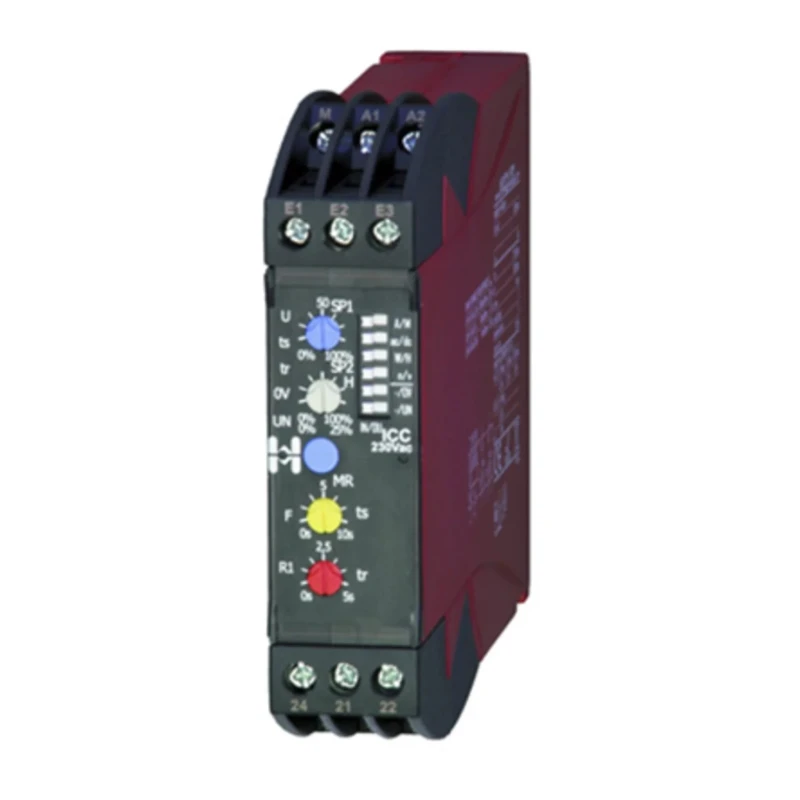

Hiquel Single Phase DPDT Monitoring Relay DIN Rail Mount 6A 230V AC ICC.230AC
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Hiquel |
| Height | 110mm |
| Length | 93.5mm |
| Model | ICC.230AC |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | ICC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Time Delay | 0 to 10 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | CE, RoHS |
| Supply AC Voltage | 230V ac |
| Maximum Current Sensed | 6A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 1.6A |
Key Features
- Supports Alternating and Direct Current monitoring.
- Three selectable current ranges for improved measuring precision.
- Adjustable thresholds for alarm functions and start delay using rotary switches.
- Selectable automatic or manual reset modes.
- Equipped with alarm memory function and LED status indicator.
- Output relay contact is Double Pole Double Throw (DPDT) and invertible.
- Compact 22.5 mm DIN rail mount housing for easy installation.
- Maximum operating temperature rating of 60°C ensures reliable performance.
Product Description
Hiquel ICC.230AC is a high-precision single phase monitoring relay designed for current control applications at 230V AC, suitable for both AC and DC current signals. This DIN rail mount relay features a DPDT output relay with a maximum current sensing capacity of 6A, providing robust monitoring solutions for industrial and commercial electrical systems.
The relay offers three different current ranges, selectable via rotary switches, enabling enhanced measurement accuracy tailored to application requirements. Alarms for undercurrent and overcurrent events can be configured with adjustable thresholds, alarm reaction time, and start delay ranging from 0 to 10 seconds, allowing fine control of protection parameters.
Its flexible operation includes automatic or manual reset options and an alarm memory function to aid troubleshooting. The output contacts are inverter-capable, adding versatility to signal management. Installation is simplified by the compact 22.5 mm DIN rail housing with screw terminal connections for secure wiring.
Engineered to operate reliably in temperatures up to 60°C, it meets CE and RoHS certification standards, demonstrating safety and environmental compliance. The Hiquel ICC series monitoring relays are widely used in electrical automation, industrial control, manufacturing systems, HVAC, and power distribution networks for real-time current monitoring and protection.
Suitable for industrial and commercial automation monitoring. Provides accurate single phase current sensing with customizable alarm settings. Compact DIN rail design optimizes panel space utilization. Relay contact current capacity of 1.6A supports diverse load requirements.
LED indicator simplifies operational status checks.
This product offers an optimal combination of precision, reliability, and ease of integration for current monitoring in a compact form factor, supporting critical electrical system safety and efficiency. Browse the broader Hiquel range and Monitoring Relays category on EnvMart for complementary products and advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current sensing capacity of this monitoring relay is 6A.
This model operates at a supply voltage of 230V AC.
It supports DIN rail mounting, making installation straightforward and efficient.
The dimensions of this unit are 110mm in height, 93.5mm in length, and 22.5mm in width.
This monitoring relay is designed to support both alternating current (AC) and direct current (DC) monitoring.
It features adjustable thresholds for alarm functions, a start delay of 0 to 10 seconds, and selectable automatic or manual reset modes.
The output relay contact configuration is Double Pole Double Throw (DPDT).
The maximum operating temperature rating for this model is 60°C.
The relay contact current capacity is 1.6A.
Yes, it is equipped with an alarm memory function to assist with troubleshooting.
This product meets CE and RoHS certification standards, ensuring safety and environmental compliance.
The terminal type for this model is screw, providing secure wiring connections.
