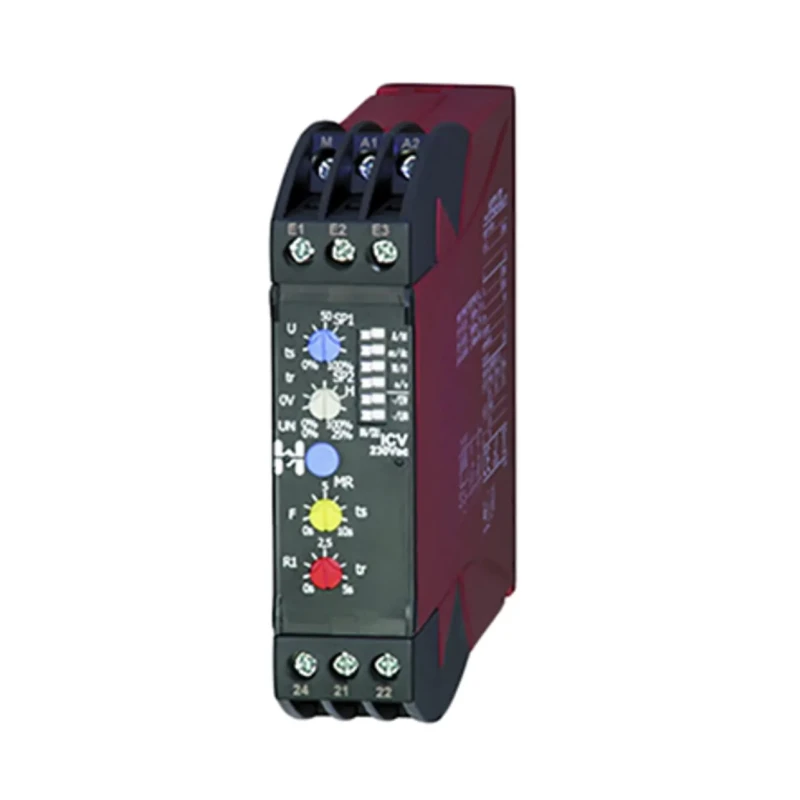

Hiquel Monitoring Relay 1 Phase 0/450 V Monitor Range DPDT Screw Terminal DIN Rail Mount ICV 400Vac
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Hiquel |
| Height | 110mm |
| Function | Stillson Pipe, Window, Undervoltage Monitoring, Auto Reset |
| Length | 93.5mm |
| Model | ICV 400Vac |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | ICV |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | EN 60947-5-1, VDE 0435 |
| Switching Voltage | 230V |
| Contact Current | 6A |
| Monitoring Voltage Range | 0/450 V |
Key Features
- Suitable for AC or DC voltage signal monitoring.
- Features automatic or manual reset selectable functions.
- Adjustable alarm thresholds and reaction times through rotary switches.
- LED indicator for clear operational status.
- Compact 22.5 mm wide DIN rail mount housing.
- Supports alarm memory function and invertible output relay contacts.
- Operating temperature range from 60°C minimum to 60°C maximum.
- Power consumption of 2.5 VA ensures efficient performance.
Product Description
Hiquel ICV 400Vac Monitoring Relay is a robust industrial device for single phase voltage control, supporting a monitoring voltage range from 0 to 450 V. It operates efficiently on both AC and DC voltage signals, suitable for a variety of electrical automation applications.
The relay features a DPDT contact configuration with screw terminals and mounts easily on a standard 22.5 mm DIN rail, making installation straightforward in electrical panels. Its design incorporates adjustable rotary switches on the front plate that allow precise setting of alarm function thresholds, reaction times, and start delay, catering to different monitoring needs.
This model integrates automatic or manual reset options alongside an alarm memory function to record events. The LED indicator clearly conveys operational status. The device consumes just 2.5 VA power, maintaining energy efficiency while providing reliable switching at 230 V and handling up to 6 A contact current.
The relay operates within a temperature range of -60°C to +60°C, suitable for demanding industrial environments. It complies with rigorous EN 60947-5-1 and VDE 0435 standards, ensuring quality and safety compliance.
Typical industrial use cases include voltage monitoring in electrical control systems, undervoltage and window monitoring, and stillson pipe applications in automation and electrical distribution panels.
Suitable for AC or DC voltage monitoring with selectable ranges. Manual and automatic reset functionality for flexible operation. Clear LED status indication ensures easy monitoring. Compact 22.5 mm DIN rail mount facilitates efficient panel space usage.
Alarm memory and invertible relay contacts enhance functionality. Explore the Electronics & Electricals category on EnvMart for a comprehensive range of Monitoring Relays and automation control gear to optimize your electrical panel solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hiquel ICV 400Vac Monitoring Relay supports a monitoring voltage range from 0 to 450 V.
This monitoring relay features a DPDT (Double Pole Double Throw) contact configuration.
It has a power consumption of 2.5 VA, ensuring efficient performance during operation.
The relay has dimensions of 110 mm in height, 93.5 mm in length, and 22.5 mm in width.
This model can handle a maximum contact current of 6 A.
The relay operates within a temperature range of -60°C to +60°C.
It is designed for DIN rail mounting, which simplifies installation in electrical panels.
Yes, it is suitable for monitoring both AC and DC voltage signals.
It complies with EN 60947-5-1 and VDE 0435 standards, ensuring quality and safety compliance.
It includes adjustable alarm thresholds and reaction times through rotary switches on the front plate.
Typical applications include voltage monitoring in electrical control systems, undervoltage monitoring, and automation in electrical distribution panels.
It uses screw terminals for easy and secure connections.
