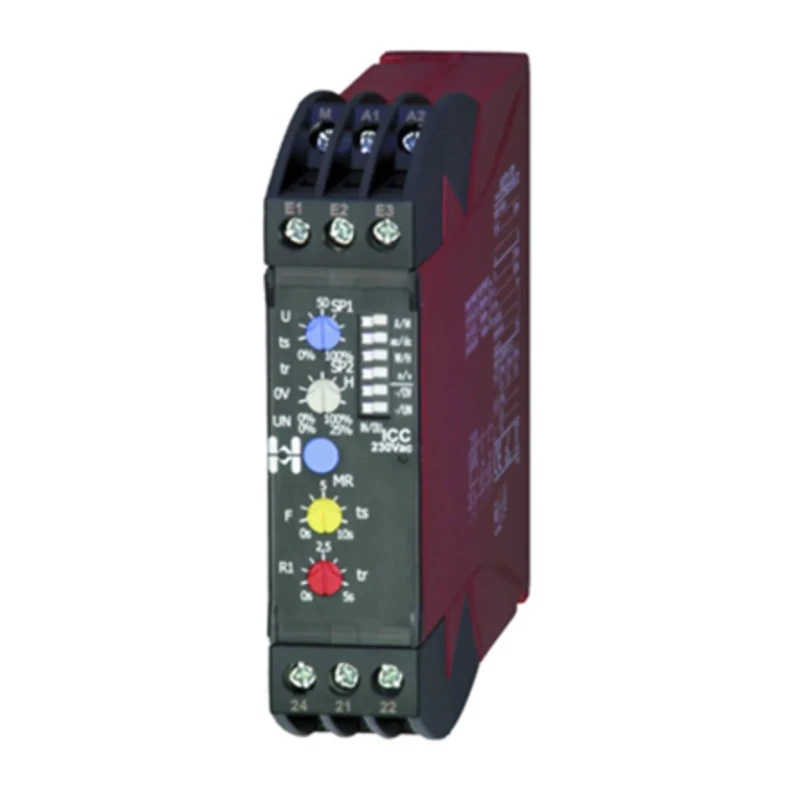

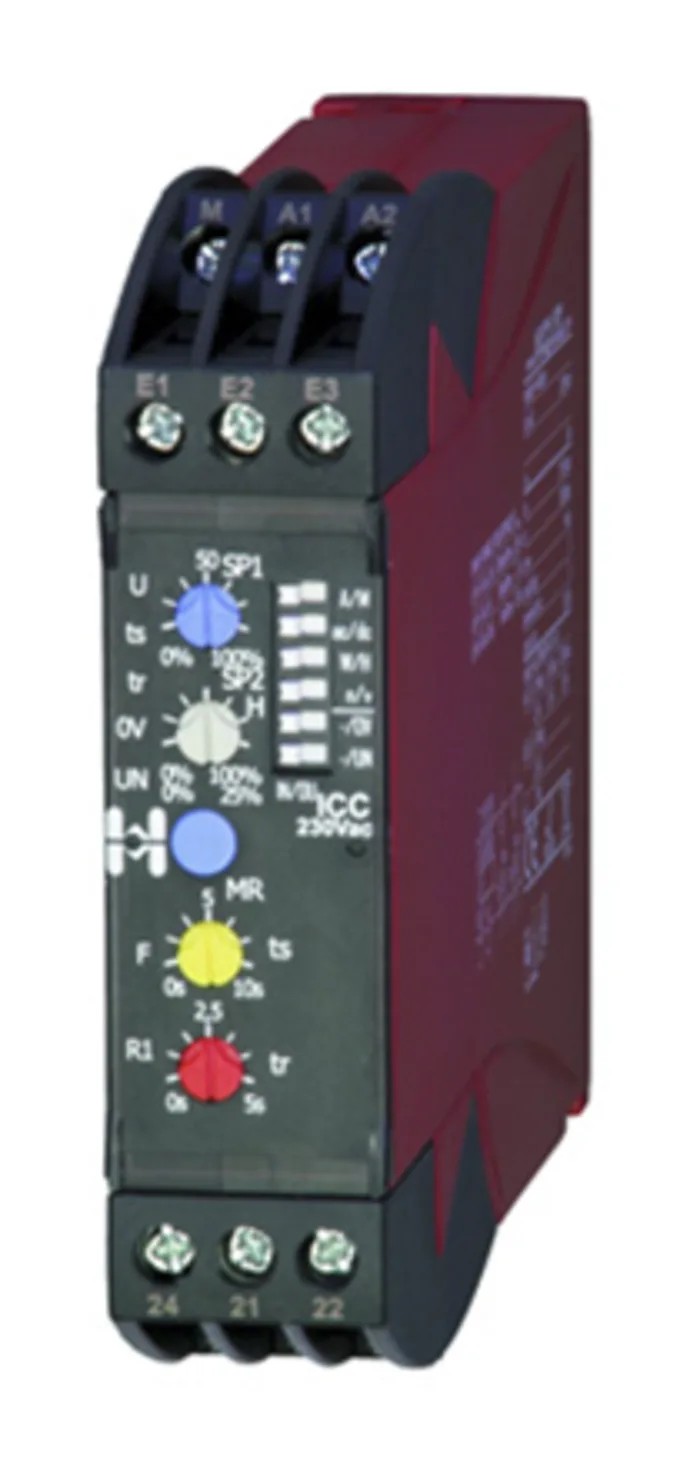

Hiquel Single Phase Monitoring Relay DPDT DIN Rail Mount 115V AC 6A ICC.115AC
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Hiquel |
| Height | 110mm |
| Length | 93.5mm |
| Model | ICC.115AC |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | ICC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Time Delay | 0 to 10 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, CE |
| Supply AC Voltage | 115V ac |
| Maximum Current Sensed | 6A |
| Current Sensitivity | Overcurrent, Undercurrent |
| Relay Contact Current | 1.6A |
Key Features
- Monitors single phase AC current with selectable thresholds for overcurrent and undercurrent.
- Features double pole double throw (DPDT) output relay for versatile switching.
- Adjustable time delay from 0 to 10 seconds ensures accurate reaction timing.
- Equipped with screw terminal connections for reliable electrical contact.
- Compact 22.5 mm wide DIN rail case enables easy installation in control panels.
- Rated for supply AC voltage of 115V with a maximum sensed current of 6A.
- Supports both automatic and manual reset options for alarm functions.
- LED indicator provides clear status display during operation.
Product Description
Hiquel ICC.115AC is a precise and reliable single phase monitoring relay featuring a DPDT contact configuration designed for DIN rail mounting. It operates on a 115V AC supply voltage and senses up to 6A current, making it suitable for overcurrent and undercurrent detection functions in industrial automation, electrical control, and monitoring systems.
This relay belongs to the ICC series, known for excellent measurement precision with selectable current ranges. The thresholds for alarm activation, alarm reaction time, and start delay time can be set easily using front panel rotary switches. The relay supports both automatic and manual reset modes and stores alarm memory for diagnostics.
Its robust 22.5 mm wide DIN rail case and screw terminal type connectors ensure straightforward installation and secure electrical connections in control panels. The relay features LED indicators for status monitoring and a reversible output relay contact. Operating temperature is rated up to 60°C, and the device complies with RoHS and CE standards, ensuring safety and environmental conformity.
This monitoring relay is suited for industrial automation, electrical engineering, HVAC control systems, manufacturing process monitoring, and other applications requiring precise current supervisory functions. Its compact size and flexible configuration options enhance integration in various control cabinet setups.
Monitors single phase current with overcurrent and undercurrent sensitivity. DPDT contact relay output for flexible control schemes. Adjustable time delay from 0 to 10 seconds. Screw terminal type for secure wiring. 22.5 mm DIN rail housing for easy mounting.
Led status indicator for operational feedback. Automatic or manual reset selectable for tailored alarm management. Complies with RoHS and CE standards for safety and quality. Compact size: 110 mm height, 93.5 mm length, 22.5 mm width.
Set your electrical control systems for high reliability using the Hiquel ICC.115AC Monitoring Relay. Explore more quality industrial monitoring devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current that this model can sense is 6A.
This monitoring relay operates on a supply voltage of 115V AC.
It features a double pole double throw (DPDT) contact configuration for versatile switching.
The adjustable time delay for this monitoring relay ranges from 0 to 10 seconds.
It is designed for DIN rail mounting, making installation straightforward in control panels.
The dimensions are 110 mm in height, 93.5 mm in length, and 22.5 mm in width.
It is equipped with screw terminal connections for reliable electrical contact.
The device complies with RoHS and CE standards, ensuring safety and environmental conformity.
The maximum operating temperature is rated at 60°C.
Yes, it supports both automatic and manual reset options for alarm functions.
It is suitable for industrial automation, electrical engineering, HVAC control systems, and manufacturing process monitoring.
The current sensitivity includes both overcurrent and undercurrent detection functions.
