Carroll & Meynell 1 Site Transformer Single Phase 230 V ac Primary ±55 V ac Secondary Wall Mount 5 kVA CM5000/FM0/230

Carroll & Meynell CM5000/FM0/230 Site Transformer is a high-quality single phase transformer designed for reliable distribution of 110 Volt electrical circuits in industrial, garage, and other fixed installations. It features a 230 V ac primary voltage with a ±55 V ac secondary output, delivering a power capacity of 5 kVA. The product is engineered to provide safe and stable voltage transformation to support power tools and industrial equipment.

This transformer incorporates a double wound configuration with a safety screen between windings, enhancing electrical safety and minimizing shock risk. The 110 V secondaries are centre tapped to earth, further reducing hazard potential during operation.

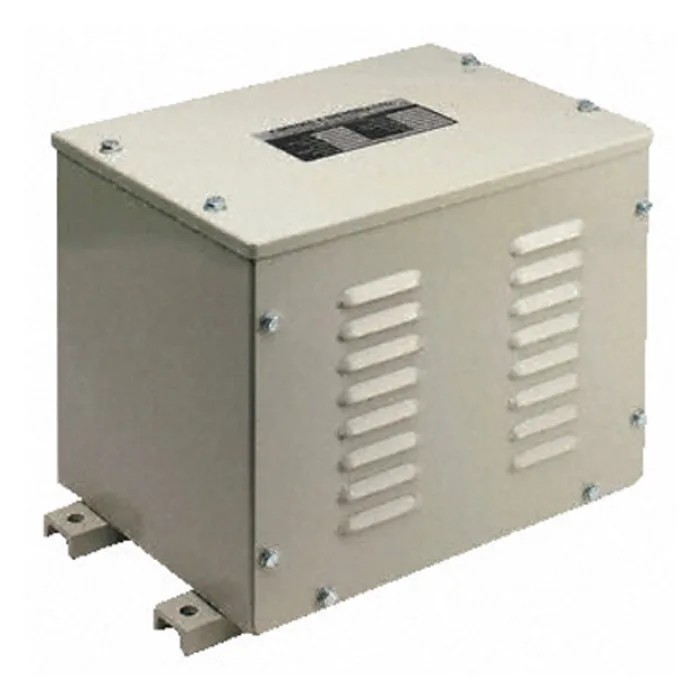

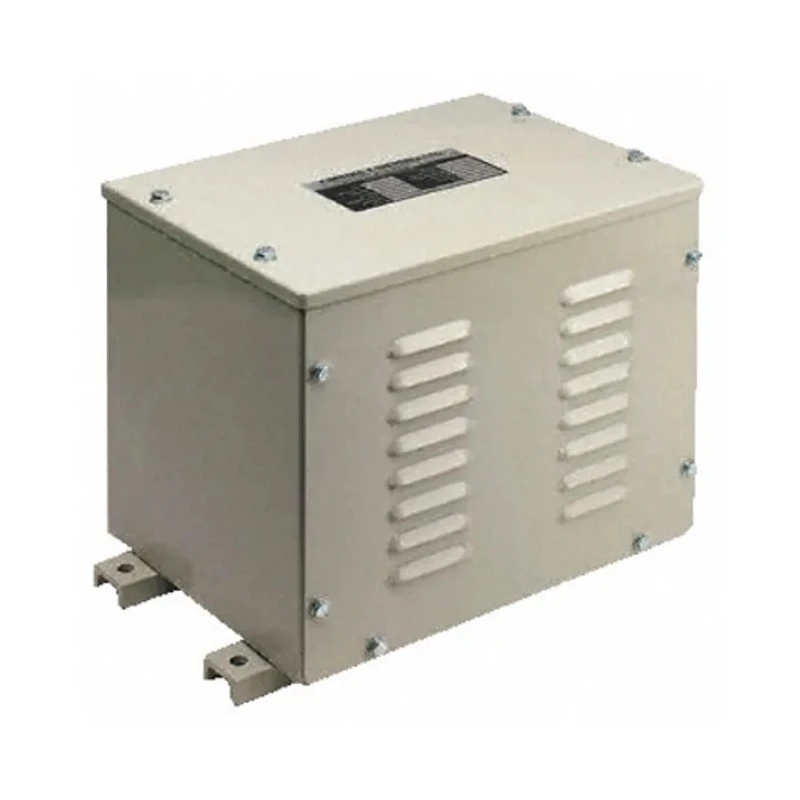

Encased in a robust sheet steel housing with an IP22 rating and powder coated in RAL7032, the transformer is designed for wall mounting with floor support. The enclosure includes 25 mm conduit entries on both sides, facilitating convenient cable management and connection.

The unit operates efficiently within a frequency range of 50 to 60 Hz, making it suitable for various power supply standards globally. Its dimensions (420 mm length, 350 mm width, 260 mm depth) and gross weight (50 kg) reflect a sturdy, robust construction intended for durable industrial use.

Manufactured in the United Kingdom, this transformer adheres to strict quality and safety parameters, although it does not hold specific approvals or certifications listed. Its application spans multiple sectors including industrial power distribution, workshop and garage power tools, and other commercial electrical installations requiring stable low voltage supply.

Set includes the transformer unit with hard wire L-N-E plug type for secure electrical connections. This product is part of the reputable CM5000/FM0/230 series by Carroll & Meynell, trusted for safe electrical distribution.

The transformer features double wound construction with a safety screen between windings. It provides 110 V secondaries centre tapped to earth to minimize electrical shock risk. The enclosure is sheet steel IP22 rated, powder coated in RAL7032 with floor mounting design.

Equipped with 25 mm conduit entry ports on both sides for easy wiring. Designed for industrial and fixed installations requiring safe 110 Volt distribution. Operates within the frequency range of 50 to 60 Hz ensuring compatibility with standard power supplies.

Dimensions are 420 mm length, 350 mm width, and 260 mm depth. Gross weight is approximately 50 kilograms. Manufactured in the United Kingdom, meeting high-quality standards for site transformers. Suitable for powering tools and equipment in industrial, garage, and commercial electrical distribution systems.
