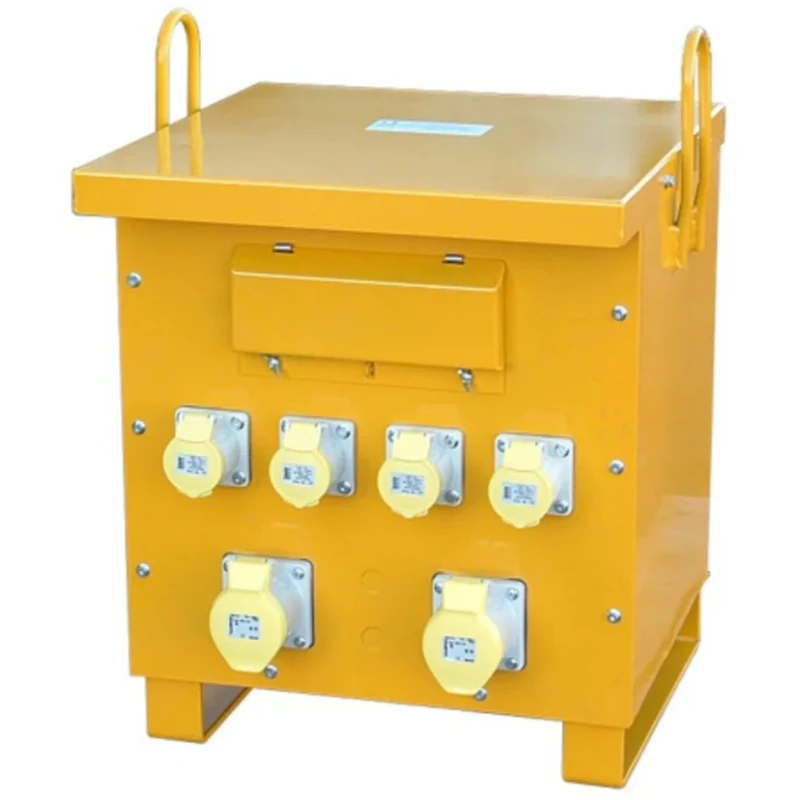

Carroll & Meynell 3 Site Transformer 10 kVA, 400 V ac Primary, 110 V ±55 V ac Secondary, 90 A Output CM10K36

Carroll & Meynell CM10K36 3 Site Transformer 10 kVA provides reliable isolation power for construction and building site applications. This transformer features a 400 V ac three-phase primary input and a stepped-down 110 V ±55 V ac secondary output delivering up to 90 A output current, suitable for powering site tools and equipment.

Built robustly with a heavy-duty sheet steel enclosure equipped with lifting handles, this free stand mount transformer is designed to withstand arduous site conditions and is rated IP23 for weather protection. The design incorporates double windings with a safety earth screen between primary and secondary to significantly reduce shock hazards for site workers.

It includes miniature circuit breakers on both input and outputs for added electrical protection and a hard-wired plug type configuration (L1-L2-L3-E). The socket type conforms to BS EN 60309 standards ensuring compatibility with site power connectors.

Operating within frequency ratings from 50 Hz to 60 Hz, this transformer is suitable for continuous use with dependable performance. Its compact physical dimensions of 470 mm length, 452 mm width, and 452 mm depth balance portability and stability, while the weight of 86 kg affords easy handling and secure positioning on site.

This product adheres to BSEN 61558-2-23 safety isolation transformer standards, making it a trusted solution for industrial, construction, and HVAC power distribution needs. Its design ensures safe operation and durability in demanding site environments.

Three-phase 400 V input voltage with a 110 V ±55 V ac secondary voltage output. Continuous 10 kVA power rating for site equipment. Heavy gauge steel enclosure with IP23 dust and water protection. Safety earth screen between windings to minimize shock risk.

Miniature circuit breakers protect input and output circuits. Free stand mounting with lifting handles for easy installation and transport. Complies with BSEN 61558-2-23 safety standards. Dimensions: 470 x 452 x 452 mm (L x W x D), Weight: 86 kg.

Carroll & Meynell transformers are ideal for industrial power distribution, water treatment sites, commercial construction sites, and manufacturing facilities requiring secure and regulated isolation power. Explore the Electronics & Electricals category at EnvMart for compatible power solutions and accessories.
