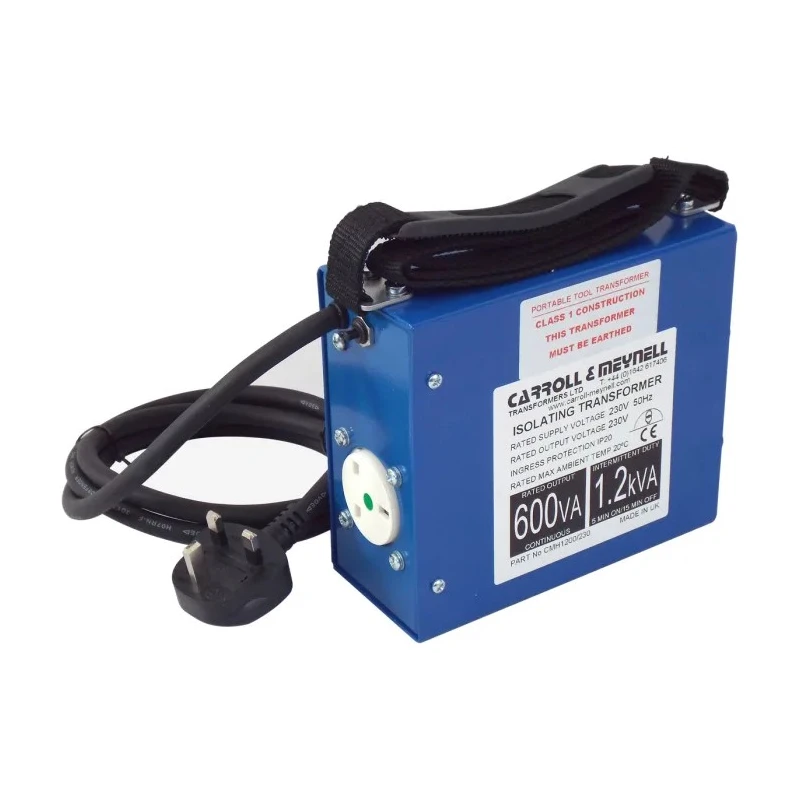

Carroll & Meynell Single Phase 1 Site Transformer 1.2 kVA, 230 V AC Primary, 230 V AC Secondary, 5.2 A Output CMH 1200/230

Carroll & Meynell CMH 1200/230 Single Phase 1 Site Transformer is engineered to provide an isolated supply for applications requiring 230 V AC primary and secondary voltages, delivering a power rating of 1.2 kVA and an output current of 5.2 A. Intended for industrial and laboratory environments, this robust transformer supports safe testing and servicing of equipment connected to mains supply.

The transformer incorporates a resettable thermal cut out embedded in the primary circuit to protect against overload conditions, enhancing operational safety. Its double wound 230 V secondary design ensures effective isolation and power reliability. The enclosure is made from either insulated blue glass-reinforced plastic (GRP) or sheet steel, offering enhanced physical protection and durability for demanding environments.

Equipped with a Type G British 3-pin plug and socket, this transformer includes a 2-meter mains cable facilitating convenient connectivity. Compliant with BSEN 61558-2-23 standards, the device assures quality, safety, and performance in line with industry expectations.

Its compact overall dimensions (200 mm length × 74 mm width × 200 mm depth) and manageable weight (7 kg) make it suitable for portable applications. The transformer supports operation across frequencies of 50 to 60 Hz, suitable for a range of electrical infrastructure setups.

This unit is highly recommended for industrial, laboratory, and service environments where isolated AC supply is critical for testing and maintenance activities. Designed for test and service engineers requiring isolated supply protection.

Features a resettable thermal cut out in the primary circuit to prevent overload. Constructed with a double wound 230 V secondary for safety and efficiency. Enclosed in an insulated blue GRP or sheet steel casing for durability.

Includes approximately 2m mains cable fitted with a 13A Type G British 3-pin plug. Manufactured to comply with BSEN 61558-2-23 standards, ensuring high quality and reliability. Compact dimensions of 200 mm length, 74 mm width, and 200 mm depth with a gross weight of 7 kg.

Operates at frequencies between 50 Hz minimum and 60 Hz maximum.
