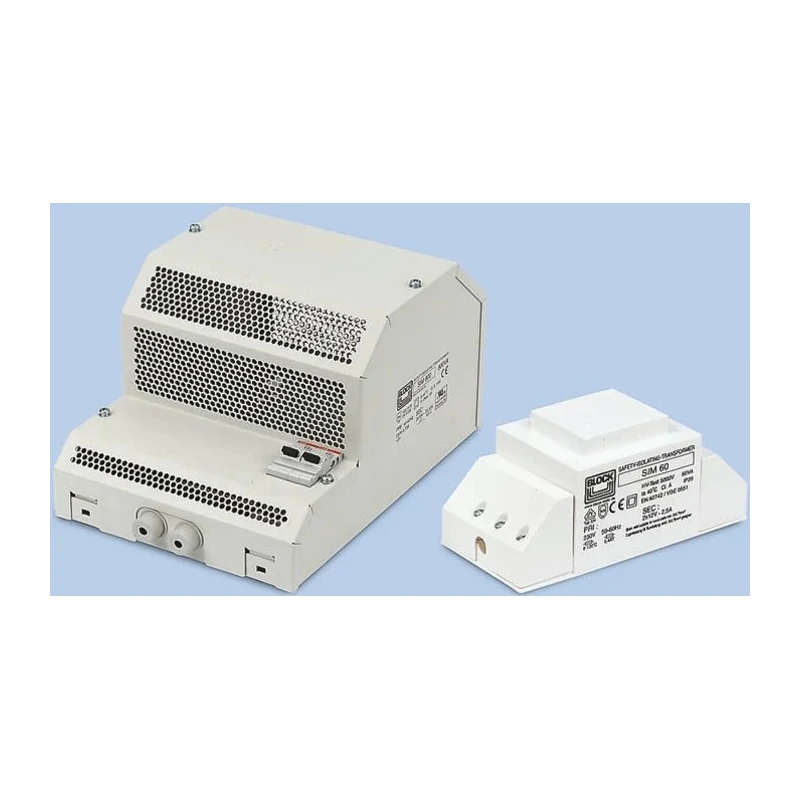

Block Site Transformer 800 VA, 230 V AC Primary, 2 x 115 V AC Secondary, 3.47 A Output TIM800

Block TIM800 Site Transformer is a single-phase device with 800 VA rating, featuring a primary voltage of 230 V AC and dual secondary voltages of 2 x 115 V AC capable of supplying 3.47 A output current. This transformer is engineered for demanding industrial, laboratory, and commercial electrical distribution applications requiring safety isolation and reliable voltage transformation.

The transformer provides two independent secondary windings that can be connected in series or parallel, offering flexibility in voltage output configurations. Its short-circuit proof design includes thermal overload protection, ensuring safe operation during electrical faults.

The encapsulated plastic housing (up to 300 VA) or metal enclosure (500 VA and above) offers robust protection, and the mounting holes facilitate easy installation on various surfaces. Screw terminals and strain relief connectors enhance the reliability and safety of wire connections.

With a high typical efficiency of 88%, the transformer minimizes energy loss and heat generation. It features an integrated primary fuse for added security. The insulating materials comply with Class B insulation standards, and the unit is IP20 rated, suitable for indoor environments with limited exposure to dust or moisture.

Operational frequency range is 50 Hz to 60 Hz with a maximum ambient operating temperature of 40°C. It meets rigorous international safety and quality certifications including DIN EN 61558-2-4, VDE standards, cURus, and IEC 61558 standards, ensuring global compliance.

This model is produced in Germany, reflecting a high standard of manufacturing quality. Typical applications include industrial control systems, electronic instrumentation, HVAC equipment, and power supply isolation in manufacturing setups.

Single-phase transformer designed for industrial and commercial applications. Dual secondary windings allowing series or parallel connection. Short-circuit proof with thermal overload protection. Encapsulated housing ensuring electrical safety and durability.

Mounting holes for secure installation. Integrated primary fuse protection for enhanced safety. High efficiency with typical 88% energy conversion rate. Protection index of IP20 suitable for controlled environments. Designed to operate under maximum ambient temperature of 40°C.

Conforms to international standards including DIN EN 61558-2-4 and IEC 61558-2-4. Explore more quality transformers and reliable site power transformers in the Electronics & Electricals section of EnvMart to meet diverse operational needs.
