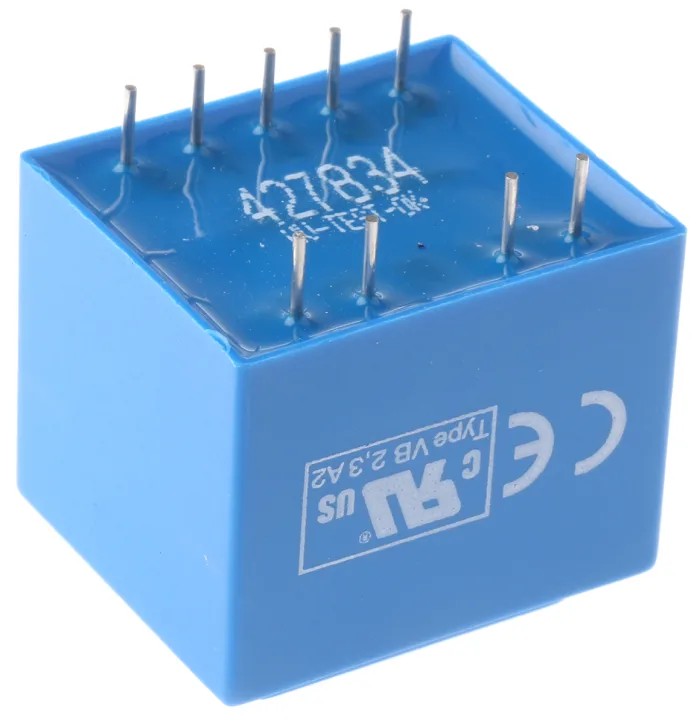

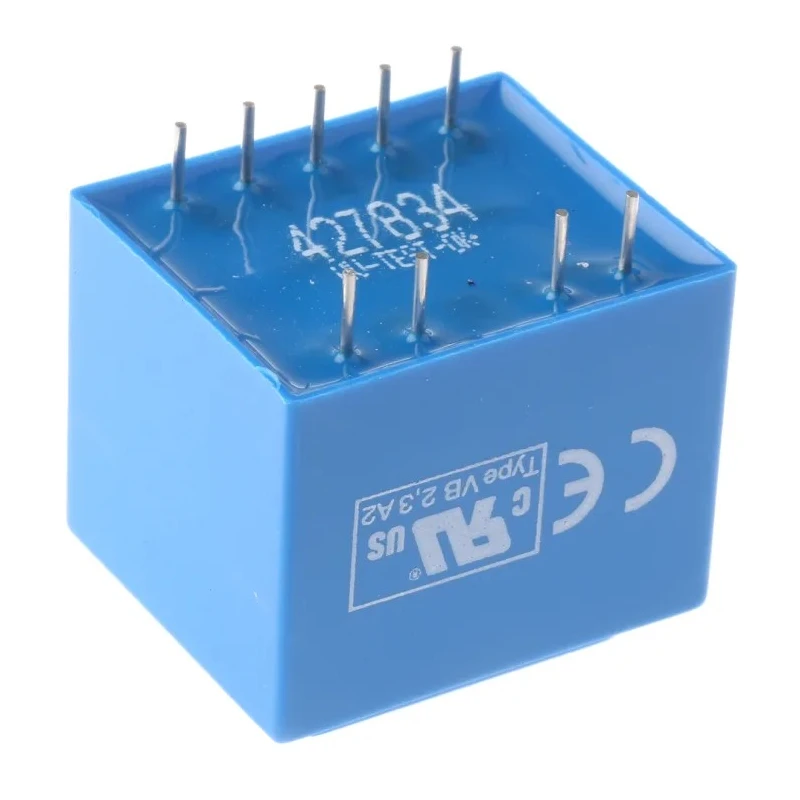

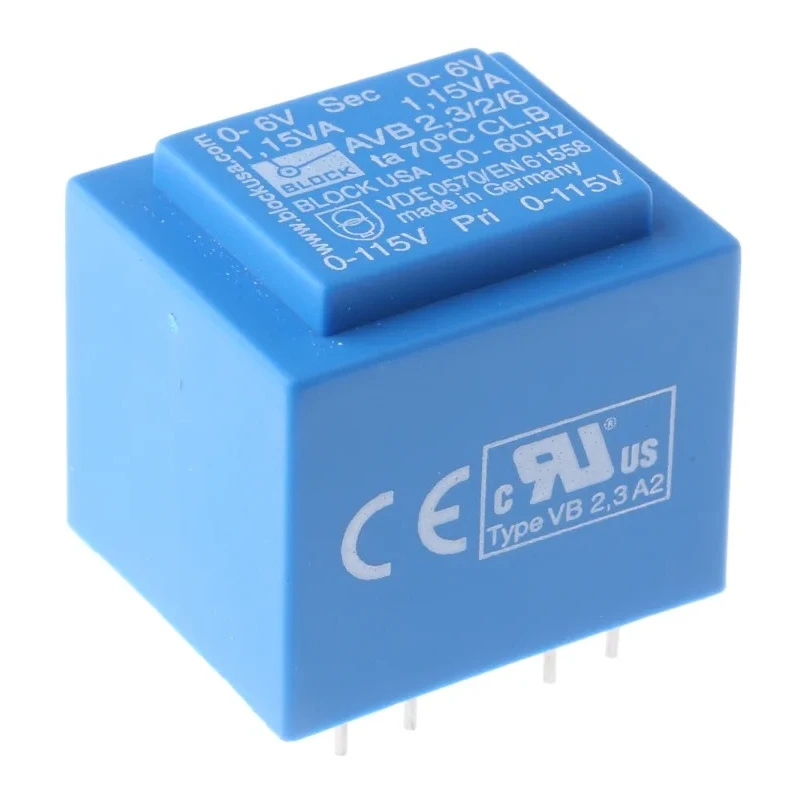

Block 6 V ac 2 Output Pin PCB Transformer, ENEC 10 (VDE), C-UL-US 2.3 VA AVB2.3/2/6

Name: Block 6 V ac 2 Output Pin PCB Transformer, ENEC 10 (VDE), C-UL-US 2.3 VA AVB2.3/2/6
Brand: Block
SKU: 407602
Price: 9.92 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	59%
Length	32.3mm
Model	AVB2.3/2/6
Depth	34mm
Gross Weight	110g
Width	27.3mm
Mount Type	Pin
Maximum Operating Temperature	70°C
Number of outputs	2
Standards/Approvals	ENEC 10 (VDE), C-UL-US
Isolation Voltage	5000V
Primary Voltage	115 V ac, 230 V ac
Secondary Voltage	6 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Features a compact pin mount design suitable for PCB installations.
Dual output windings provide flexibility for series or parallel connections.
Operates efficiently at 59% efficiency with a power rating of 2.3 VA.
Primary voltage supports dual input of 115 V ac and 230 V ac.
Designed to handle operating frequencies from 50 Hz to 60 Hz.
Constructed with vacuum epoxy resin giving UL94-V0 fire resistance rating.
Inherently short circuit proof to enhance equipment safety.
Glass fibre reinforced polyamide bobbins improve durability and strength.

Product Description

Block AVB2.3/2/6 is a 6 V ac 2 output pin PCB transformer designed for reliable electronic power conversion with a power rating of 2.3 VA. It is ENEC 10 (VDE) and C-UL-US certified, ensuring compliance with stringent safety and performance standards.

This transformer is engineered for industrial, electronic, and power supply applications requiring compact PCB mounting solutions. Its dual secondary windings allow for series or parallel connection configurations, enhancing versatility in circuit designs.

The compact pin mount format with precise dimensions of 32.3mm length, 27.3mm width, and 34mm depth enables integration in tight PCB spaces. It supports dual primary voltages of 115 V ac and 230 V ac, operating efficiently across 50 to 60 Hz frequencies.

Constructed using vacuum epoxy resin with a UL94-V0 flame retardant rating, and double section glass fibre reinforced polyamide bobbins, it ensures mechanical robustness and electrical insulation. It is inherently short circuit proof, providing high reliability and safety in demanding environments.

The transformer provides an isolation voltage of 5000 V with an operating temperature range up to 70°C, suitable for diverse industrial, laboratory, and manufacturing applications.

Compact pin mount design for PCB integration. Dual output windings for series or parallel wiring. 2.3 VA power rating with 59% efficiency. Dual primary voltage inputs: 115 V ac and 230 V ac. Operating frequency range of 50 Hz to 60 Hz.

Vacuum epoxy resin moulded for fire resistance UL94-V0. Glass fibre reinforced polyamide bobbins for durability. High isolation voltage of 5000 V. Operating temperature up to 70°C.
