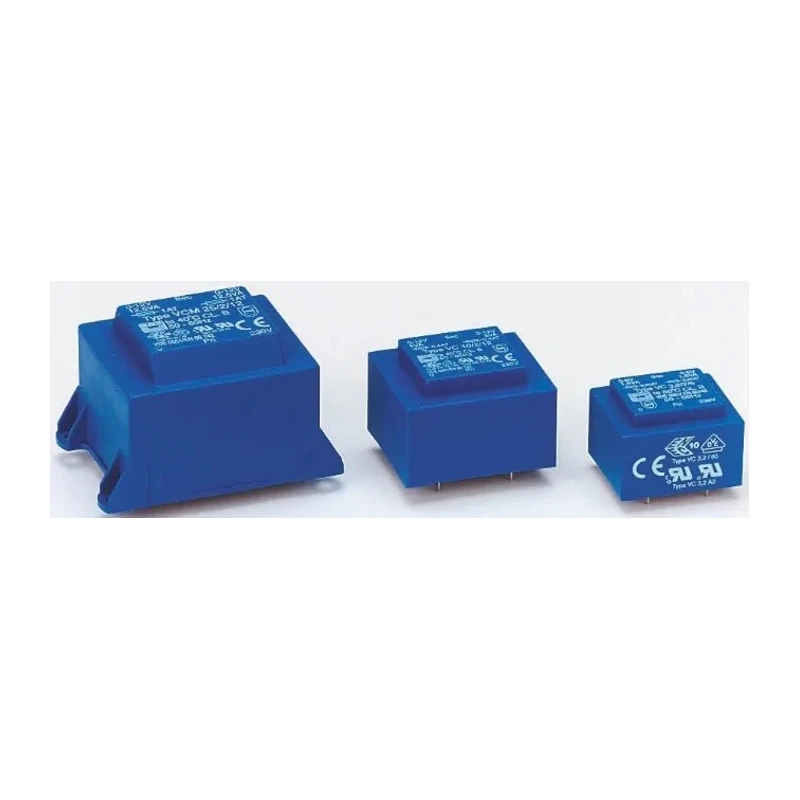

Block PCB Transformer 230 V ac Primary, 15 V ac Secondary, 5 VA Output, Through Hole Mount VC 5,0/1/15

Block VC 5,0/1/15 PCB Transformer is a high-quality power supply component designed for use in electronic devices requiring reliable voltage transformation. Featuring a single primary winding rated at 230 V AC and a single secondary output of 15 V AC with a power rating of 5 VA, this transformer is optimized for PCB mounting using through-hole technology. The vacuum resin moulded encapsulation meets the UL94-V0 flammability standard, providing enhanced safety in industrial and laboratory environments.

This transformer exhibits a high isolation voltage of 5000 V and operates efficiently with a typical efficiency of 68%, supporting operating frequencies from 50 Hz up to 60 Hz. Its low inter-winding capacitance reduces electrical noise, which is critical for sensitive electronic applications.

With compact dimensions (44 mm length, 37 mm width, and 33 mm depth) and a weight of approximately 190 grams, it is suitable for space-constrained PCB layouts. Additional features include extra fixing points for secure mounting on the PCB, providing durability in commercial and industrial equipment. This transformer conforms to internationally recognized standards, including UL and VDE, ensuring dependable performance in demanding use cases.

Typical applications include industrial power supplies, electronic instrumentation, HVAC control systems, and manufacturing equipment where reliable isolation and voltage conversion are required. Built to meet EN 61 558 and IEC 61558 standards, this unit ensures conformity with accepted safety and quality protocols.

Bulk purchasers and OEMs can rely on this transformer for consistent performance and safety. Offers 15 V AC secondary voltage for versatile electronic applications. Designed with a 230 V AC primary voltage suitable for standard mains supply.

Constructed for through-hole PCB mounting ensuring firm and reliable fixing. Vacuum resin moulded to UL94-V0 rating guaranteeing fire resistance and safety. Features low inter-winding capacitance to minimize electrical noise.

Operates efficiently at 68% with a frequency range of 50 Hz to 60 Hz. High isolation voltage of 5000 V enhances device safety and reliability. Compact dimensions of 44 mm length, 37 mm width, and 33 mm depth fit standard PCB layouts.

Compliance with international standards including UL and VDE certifications. Manufactured in Germany to ensure top-quality industrial-grade component standards. Explore more PCB Transformers and power supply solutions from the Block brand available on EnvMart for your industrial and commercial application needs.
