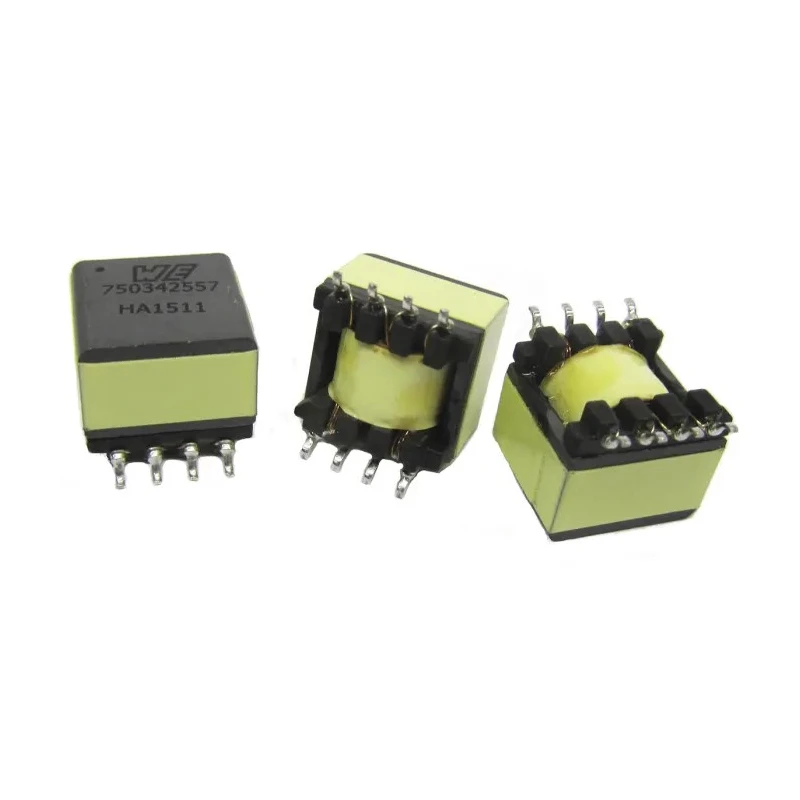

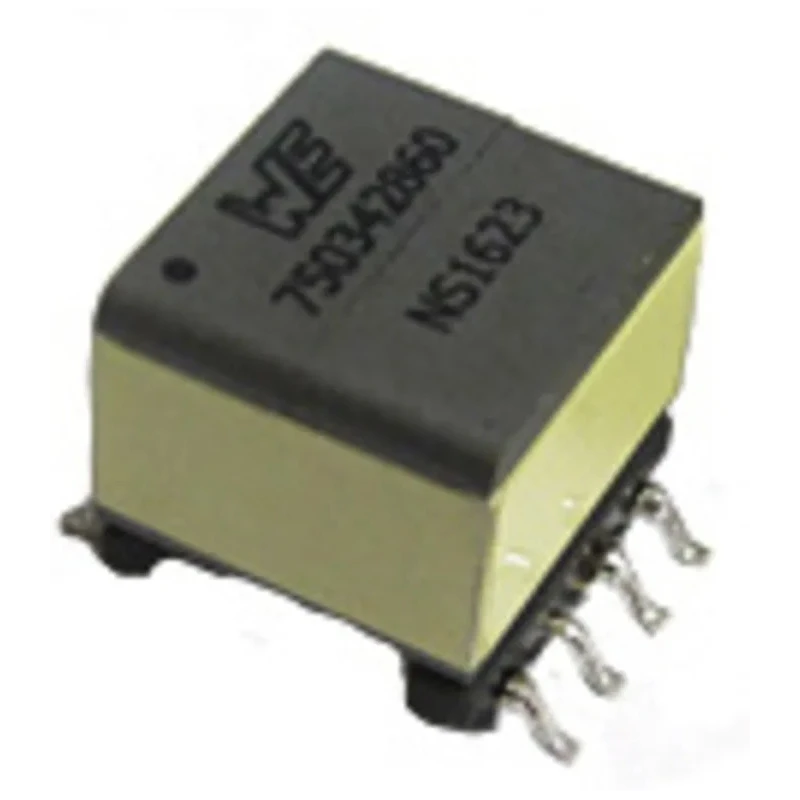

Wurth Elektronik 24 V 1 Output Surface Mount PCB Transformer EN6681

Wurth Elektronik EN6681 is a high-quality 24 V 1 output surface mount PCB transformer engineered to meet strict international safety and environmental standards such as IEC606641, EN6681, REACH, IEC6180051, UL6681 CSA6681, RoHS, CSA, and more. With a primary voltage rating of 36 V dc, it effectively delivers a secondary voltage output of 24 V suitable for multiple industrial applications.

This PCB transformer features a surface mount design with 8 pins, measuring 15.24 mm in length, 11.43 mm in width, and 13.34 mm in depth, ensuring compatibility with compact PCB layouts. It supports operation frequencies up to 200 kHz and is built to operate reliably in environments with temperatures as low as -40°C and as high as 125°C.

The transformer utilizes MID-IBMAX isolated buck transformer technology for Maxim Integrated Iso-Buck chipsets and employs primary side regulation eliminating the need for optocouplers, thereby reducing the component count and enhancing reliability.

Applications primarily include factory automation systems, Programmable Logic Controllers (PLCs), and isolated communication interfaces such as RS485 and RS232, making it an essential component in electronic control and power supply systems within industrial, manufacturing, and automation sectors.

This transformer operates with a primary voltage of 36 V DC providing a secondary voltage of 24 V. It features a compact size with 15.24 mm length, 11.43 mm width, and 13.34 mm depth. Equipped with 8 pins for secure surface PCB mounting.

Suitable for high-frequency applications up to 200 kHz. Operates reliably in temperatures ranging from -40°C to 125°C. Complies with various international standards including IEC606641, EN6681, REACH, UL, CSA, and RoHS. Designed to reduce component count by utilizing primary side regulation without optocouplers.

Ideal for use in Programmable Logic Controllers (PLCs) and isolated communication interfaces like RS485 and RS232. Manufactured in China ensuring quality and consistency.

Choose Wurth Elektronik PCB Transformers for robust, reliable, and efficient power management solutions in industrial and electronic component applications. Browse more in our Electronics & Electricals category for high-quality transformers and related products at EnvMart.
