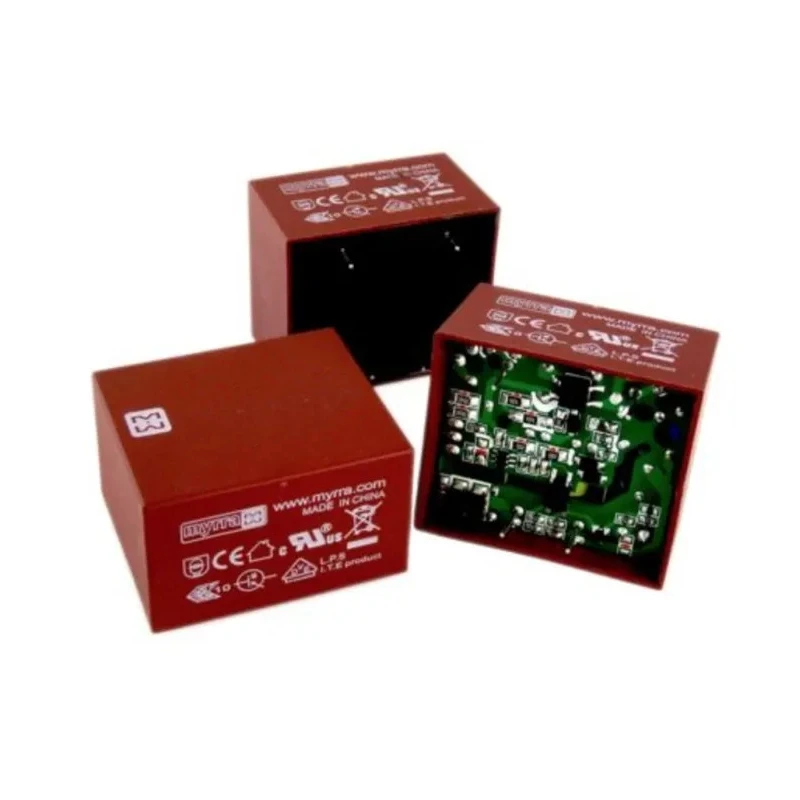

Myrra 5 V 5 Output Through Hole PCB Transformer, UL CE ENEC VDC RoHS 7.5W 47200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Myrra |
| Power | 7.5W |
| Efficiency | 77% |
| Length | 41mm |
| Model | 47200 |
| Depth | 24.5mm |
| Gross Weight | 56g |
| Width | 35mm |
| Mount Type | Through Hole |
| Series | 7.5W |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 5 |
| Standards/Approvals | UL, CE, ENEC, VDC, RoHS |
| Primary Voltage | 370 V ac |
| Secondary Voltage | 5 V |
| Minimum Operating Frequency | 47Hz |
| Maximum Operating Frequency | 63Hz |
| PCB Transformer Current | 1.5A |
Key Features
- Encapsulated electronic transformer using flyback topology for regulated DC output.
- High energy saving due to 77% efficiency and low standby power consumption.
- Suitable for telecom supplies, electric substations, industrial, domestic, and consumer electronics.
- Mount type is through hole with dimensions 41mm length, 35mm width, and 24.5mm depth.
- Operates at frequencies between 47 Hz and 63 Hz with a maximum operating temperature of 70°C.
- Complies with UL, CE, ENEC, VDC, and RoHS standards for safety and quality assurance.
- Designed to replace traditional 50 Hz transformers with integrated fuse, bridge rectifier, regulator, and filtering capacitor.
Product Description
Myrra 47200 5 V 5 Output Through Hole PCB Transformer delivers a power output of 7.5W with a primary voltage rating of 370 V AC. This encapsulated electronic transformer is based on flyback topology and provides a single regulated DC output, making it an efficient solution for various electronic power supply needs.
Designed for industrial, telecom, and domestic applications, it offers high energy efficiency (77%) and low standby power consumption, aiding energy saving in systems. The transformer features a through-hole mount type with compact dimensions: 41 mm length, 35 mm width, and 24.5 mm depth, supporting a current of up to 1.5 A on the PCB side.
This component operates reliably between -25°C to 70°C, suitable for diverse environments and complies fully with international standards UL, CE, ENEC, VDC, and RoHS, ensuring both quality and environmental safety. It supports frequencies ranging from 47 Hz minimum to 63 Hz maximum.
The 5 output configuration enhances versatility, enabling use in telecom supplies, electric substations, consumer electronics, and industrial instruments. It serves as a modern replacement for traditional EI30 transformers by consolidating functions of transformer, fuse, bridge rectifier, regulator, and filtering capacitor into a single device.
Encapsulated electronic transformer based on flyback topology. High efficiency of 77% ensures energy saving and reduced operational costs. 5 output terminals providing 5 V secondary voltage at 1.5 A current. Compact through-hole mount design with precise dimensions for PCB integration.
Wide operating temperature range from -25°C to 70°C for diverse application environments. Compliance with UL, CE, ENEC, VDC, and RoHS standards. Ideal for telecom, industrial, domestic electronics, and electric substations.
Choose this Myrra 47200 PCB transformer for dependable power supply components in electronic manufacturing and system design. Browse other PCB Transformers and related components at EnvMart for comprehensive electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Myrra 47200 PCB transformer delivers a power output of 7.5W.
It has an efficiency rating of 77%, contributing to energy savings.
This unit has dimensions of 41mm in length, 35mm in width, and 24.5mm in depth.
The primary voltage rating is 370 V AC.
It provides a secondary voltage of 5 V with a current output of up to 1.5 A.
The operating temperature range is from -25°C to 70°C.
It operates at frequencies ranging from 47 Hz to 63 Hz.
This model features a through-hole mount type, suitable for PCB integration.
It complies with UL, CE, ENEC, VDC, and RoHS standards for safety and quality assurance.
This transformer is suitable for telecom supplies, electric substations, industrial, domestic, and consumer electronics.
The Myrra 47200 provides 5 outputs.
The gross weight of this unit is 56g.
