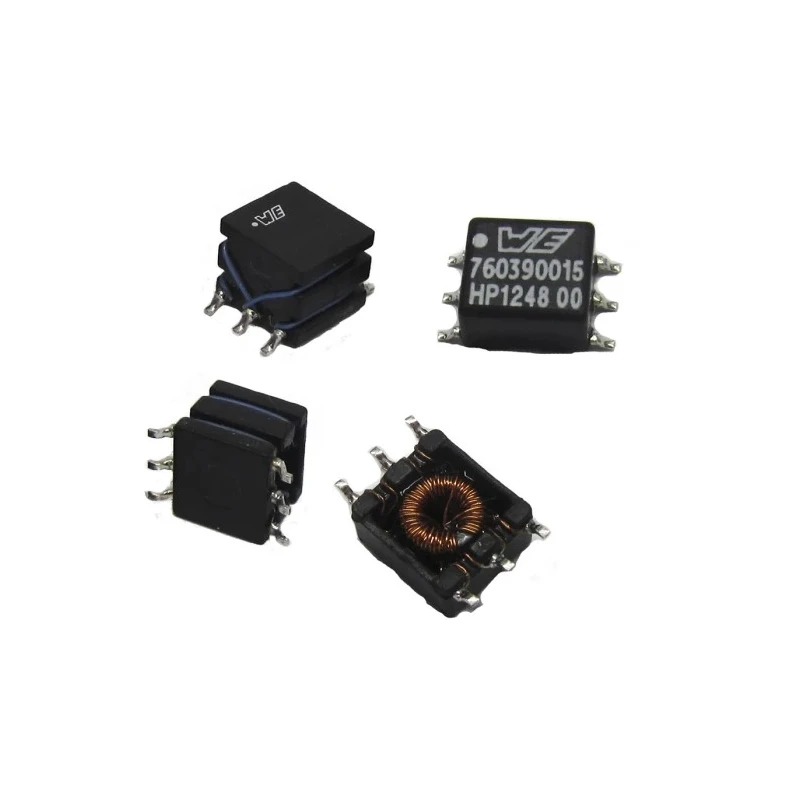

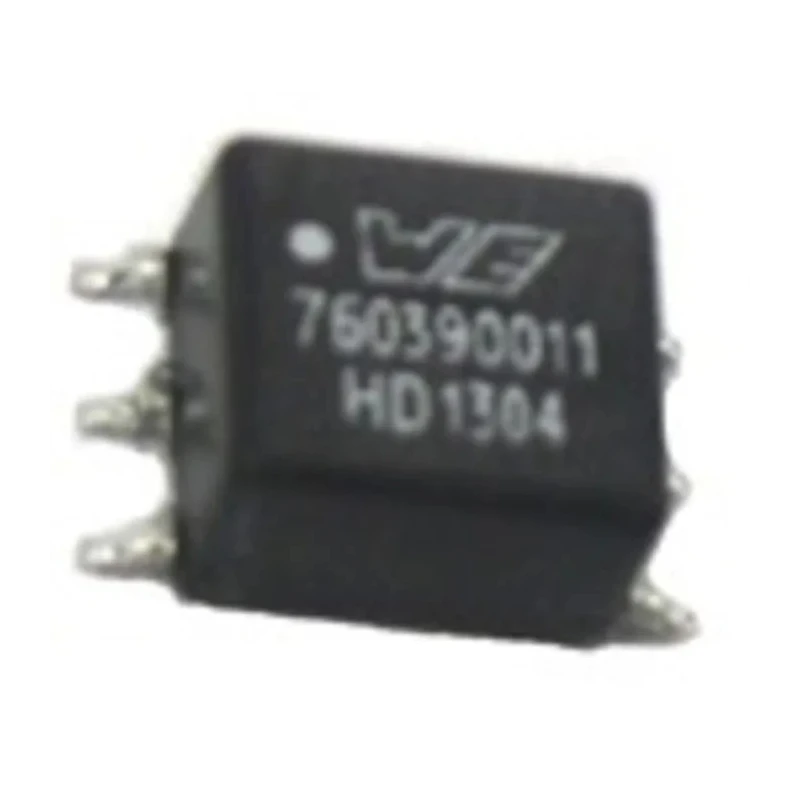

Wurth Elektronik 5 V DC 1 Output Surface Mount PCB Transformer, IEC6180051, ASNZS668.1, J6681, UL6681CSA6681, cULus 760390012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 7.14mm |
| Depth | 6.73mm |
| Operating Temp | -40°C to 125°C |
| Width | 4.19mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN |
| Number of outputs | 1 |
| Standards/Approvals | IEC6180051, ASNZS668.1 and J6681, UL6681CSA6681, cULus Approva, EN6681, REACH, Free JEDEC JS709B, CSA, IEC606641, IEC6681, RoHS |
| Number of Pins | 6 |
| Primary Voltage | 5 V dc |
| Secondary Voltage | 5 V dc |
| Minimum Operating Frequency | 300kHz |
| Maximum Operating Frequency | 620kHz |
| PCB Transformer Current | 350mA |
Key Features
- Operates at a primary and secondary voltage of 5 V DC ensuring stable power delivery.
- Compact dimensions of 7.14 mm length, 4.19 mm width, and 6.73 mm depth enable low profile surface mounting.
- Supports a current output of 350 mA suitable for low power signal isolation.
- Wide operating temperature range from -40°C to 125°C for harsh environment reliability.
- Compliance with multiple international standards including IEC6180051, ASNZS668.1, UL6681CSA6681, and cULus approvals.
- Features 6 pins configured for surface PCB mounting applications.
- Suitable for isolated interface power supplies in industrial automation and medical equipment.
- Manufactured in China with REACH and RoHS compliance ensuring environmental safety.
Product Description
Wurth Elektronik 760390012 5 V DC 1 output surface mount PCB Transformer provides efficient power isolation and signal integrity in compact electronic circuits. Designed according to IEC6180051, ASNZS668.1, J6681, UL6681CSA6681, and cULus standards, it ensures compliance and safety for diverse industrial and commercial applications.
The transformer features a compact footprint with precise dimensions of 7.14 mm length, 4.19 mm width, and 6.73 mm depth, making it ideal for surface mounting on printed circuit boards where space is limited. With 6 pins and a maximum output current of 350 mA, it is suitable for low power isolated signal or power circuits.
Operating over a broad temperature range of -40°C to 125°C, this component withstands harsh environmental conditions, enhancing reliability in industrial automation, process control, medical devices, PLC modules, and isolated gate driver power supplies.
Its frequency operating range from 300 kHz to 620 kHz supports a variety of communication protocols and power conversion techniques, including isolated interface power supplies for CAN, RS-485, RS-422, RS-232, SPI, I2C, and lower-power LAN applications.
Manufactured in China, the product meets environmental standards including REACH and RoHS compliance, ensuring safe use in modern electronic designs. Typical use cases include industrial automation, medical equipment, uninterruptible power supplies (UPS), solar inverters, energy metering, and protection relays.
Operates at 5 V DC primary and secondary voltage. Compact surface mount form factor with 6 pins. 350 mA output current rating for signal isolation. Wide temperature range of -40°C to 125°C. Compliance with IEC6180051 and UL6681CSA6681 standards.
Supports frequencies from 300 kHz to 620 kHz. RoHS and REACH environmental compliance. Manufactured in China. Explore EnvMart's electronic components catalog for a broad range of transformers and PCB mounting solutions from trusted brands like Wurth Elektronik.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a primary and secondary voltage of 5 V DC.
The transformer supports a maximum output current of 350 mA.
It has a length of 7.14 mm, a width of 4.19 mm, and a depth of 6.73 mm.
The operating temperature range is from -40°C to 125°C.
It complies with IEC6180051, ASNZS668.1, UL6681CSA6681, and cULus standards, among others.
This model features 6 pins configured for surface PCB mounting applications.
The frequency operating range is from 300 kHz to 620 kHz.
It is suitable for isolated interface power supplies in industrial automation and medical equipment, among others.
This unit is designed for surface mounting on printed circuit boards.
This transformer is manufactured in China.
It meets REACH and RoHS compliance, ensuring environmental safety.
It supports LAN interfaces, making it suitable for various communication protocols.
