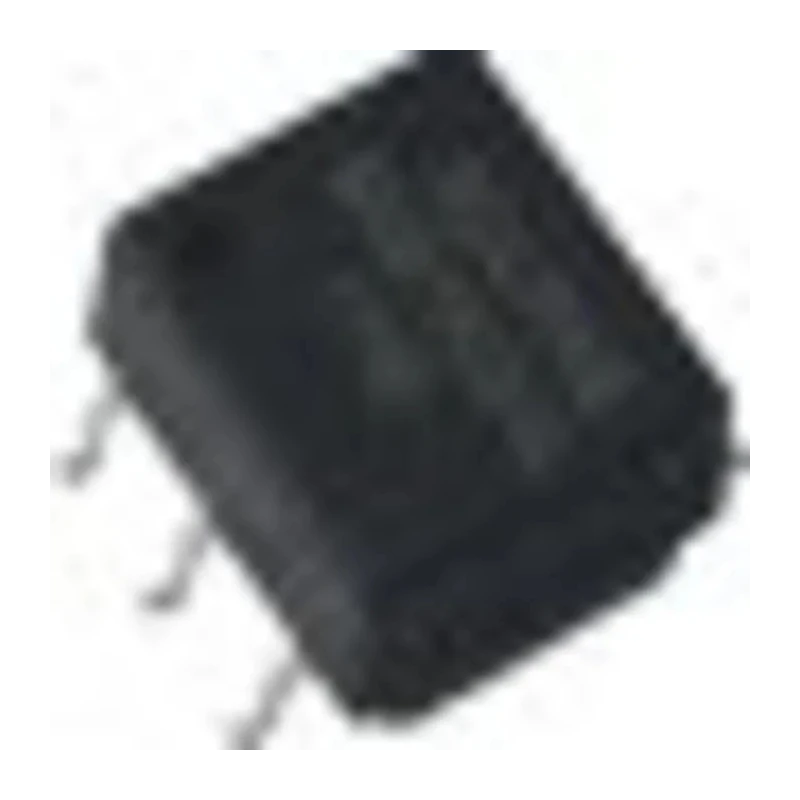

Bourns PCB Transformer, AEC-Q200 Compliant, RoHS Certified, 1000 V DC Primary Voltage, Centre Tapped Winding, SM91502ALE

Bourns SM91502ALE PCB Transformer is designed for reliable PCB mounting applications, featuring a primary voltage rating of 1000 V DC and centre tapped winding suitable for demanding electronic environments.

This transformer supports operation across a wide temperature range from -40°C to 125°C, meeting the stringent AEC-Q200 standards and RoHS compliance for automotive and industrial usage.

Its compact form factor with dimensions 7.62 mm (L) × 6.73 mm (W) × 5.59 mm (D) makes it ideal for space-constrained printed circuit boards. Equipped with an isolation voltage of 4300 Vdc and a working voltage of 1600 Vdc, it ensures high safety margins in electrical isolation.

The two channel design includes a choke component and supports serial daisy chain and IsoSPI protocols, facilitating advanced signal transmission and noise rejection capabilities.

Manufactured in China under strict quality controls, this transformer is suitable for industrial, automotive, and electronic components manufacturing sectors requiring robust power management solutions.

Operates from -40°C to +125°C ensuring wide environmental adaptability. Compact PCB mount with precise dimensional configuration for seamless integration. Conforms to AEC-Q200 for automotive quality and RoHS for environmental safety.

Supports advanced connectivity through IsoSPI and serial daisy chain features. High isolation and working voltages for enhanced electrical safety. Explore more in our Electronics & Electricals category for high-quality transformers and power supply components for diverse industrial applications.
