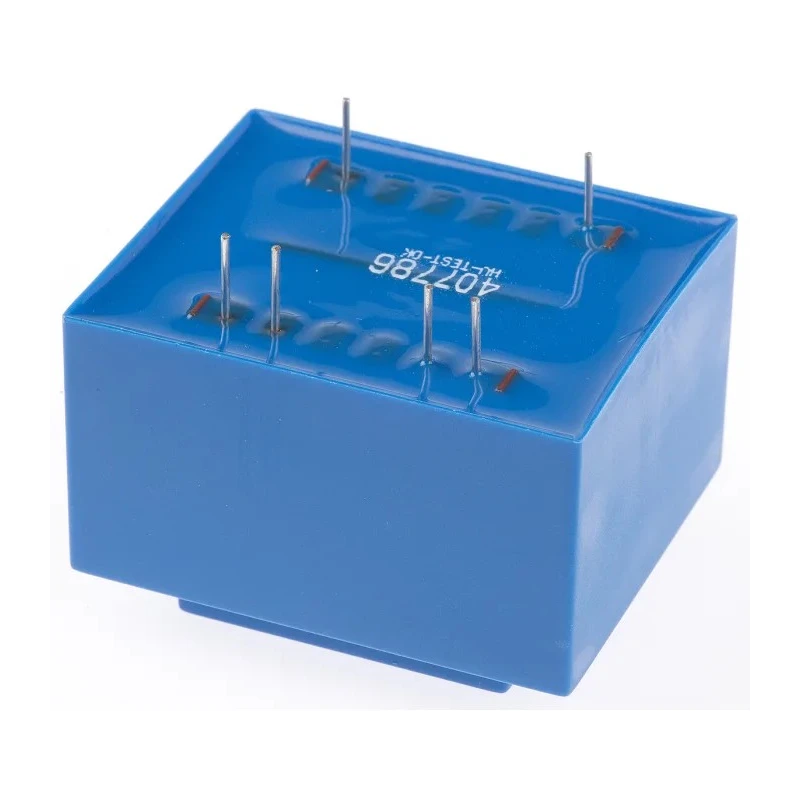

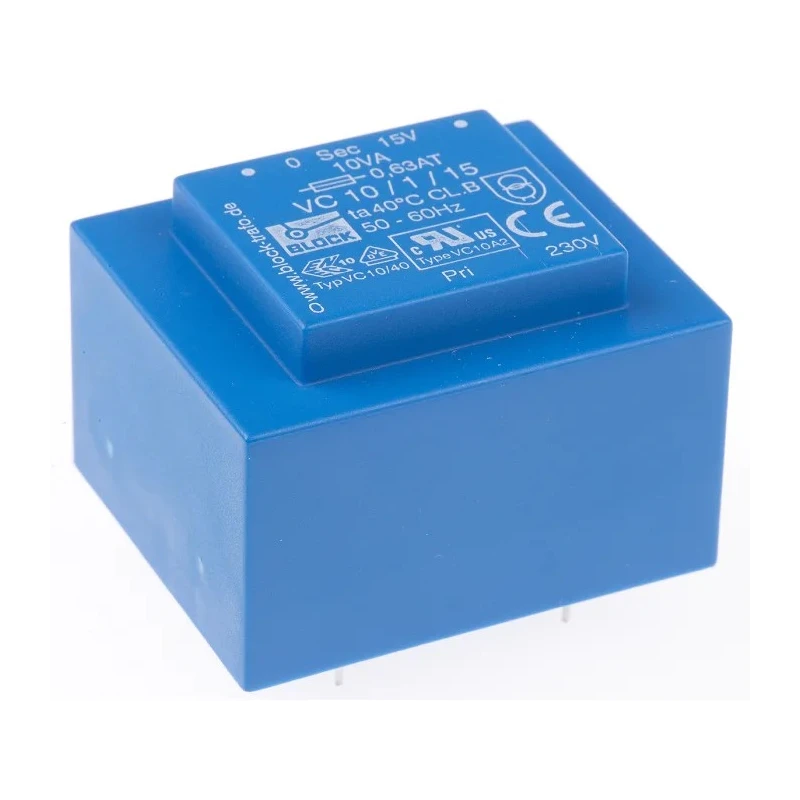

Block PCB Transformer 15 V AC 1 Output Pin 10 VA, 230 V AC Primary, ENEC 10 (VDE), C-UL-US VC 10/1/15

Block VC 10/1/15 PCB Transformer is engineered for reliable power transfer in electronic and industrial applications requiring a compact and efficient solution. It provides a secondary output voltage of 15 V AC at 10 VA power capacity, powered by a 230 V AC primary input. This model includes one output pin and uses a pin mount type, facilitating secure and stable mounting on printed circuit boards.

The transformer is vacuum resin moulded to comply with UL94-V0 flame retardant standards, offering enhanced safety against fire hazards. Its design minimizes inter-winding capacitance and radiated noise, delivering cleaner electrical output and improved performance in sensitive electronic circuits.

Featuring a high isolation voltage rating of 5000 V, the transformer ensures effective electrical separation to protect downstream components. Its efficiency rating of 74% reflects an optimized design for energy conservation without compromising output quality. Operating in an ambient temperature up to 40°C and supporting a frequency range from 50 Hz to 60 Hz, it meets the demands of varied power environments.

This transformer is certified under ENEC 10 (VDE) and bears C-UL-US approval marks, endorsing its compliance with stringent international safety and quality standards. Manufactured in Germany, the product demonstrates a commitment to durability and precision.

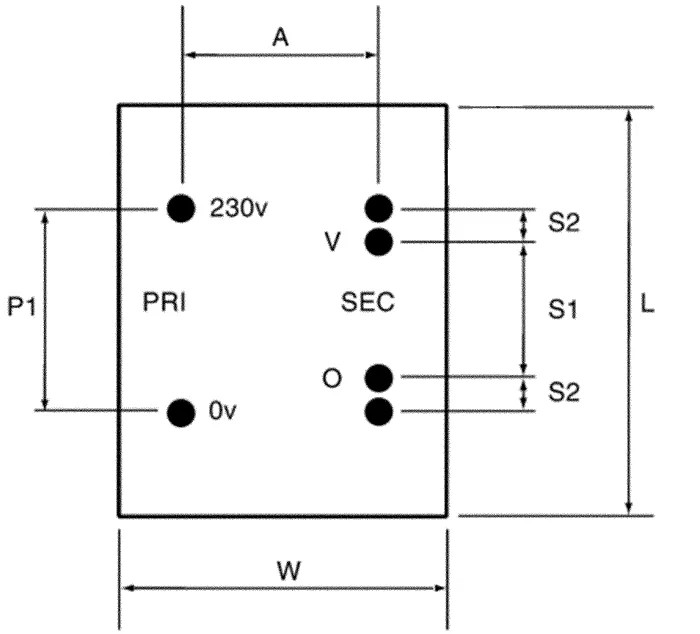

With dimensions of 51 mm length, 43 mm width, and 34.6 mm depth, it fits efficiently in constrained spaces typical in power supplies and electronic instrumentation. The approximately 280-gram weight ensures easy handling and integration into devices. The VC 10/1/15 series is ideal for use in industrial, laboratory, electronic manufacturing, and power supply settings where consistent performance and safety are paramount.

This PCB transformer has a primary voltage rating of 230 V AC for standard power supply. The product features a pin mount type ensuring secure attachment to printed circuit boards. It is vacuum resin moulded with UL94-V0 flame retardant rating for enhanced safety.

Isolation voltage is rated at 5000 V to provide reliable electrical separation. Efficiency stands at 74%, optimizing power use in industrial and electronic applications. Designed for operation within 40°C maximum temperature for stable performance.

Minimum operating frequency is 50 Hz, with a maximum of 60 Hz, meeting common power supply frequencies. Approvals include ENEC 10 (VDE) and C-UL-US certifications, ensuring compliance with international standards. The transformer is produced in Germany, reflecting high manufacturing quality.

Weight is approximately 280 grams, suitable for compact electronic assemblies. Explore more PCB Transformers and electrical components at EnvMart to find suitable power solutions for your industrial and electronic design projects.
