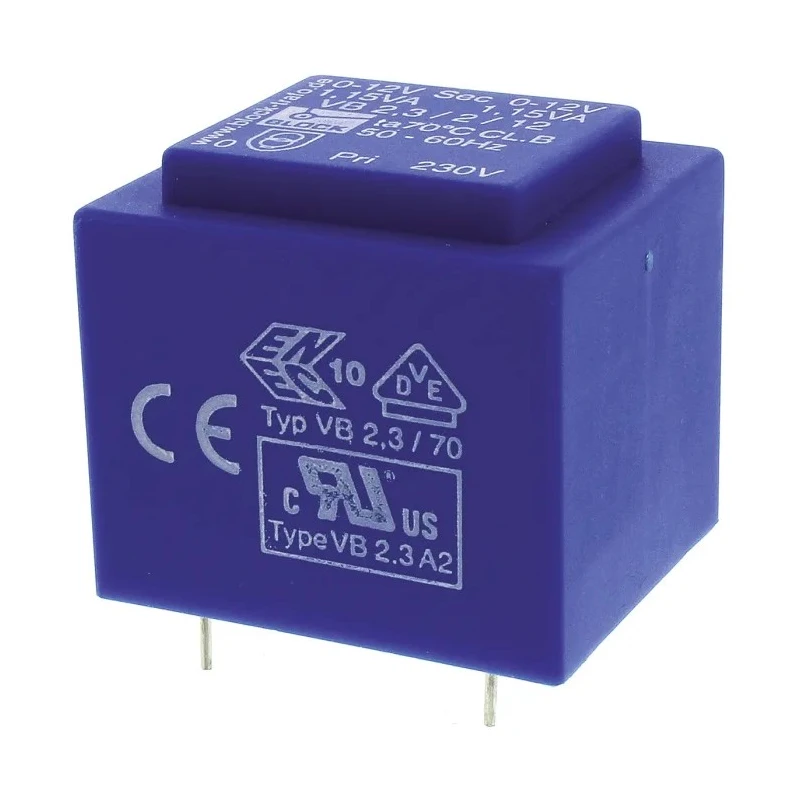

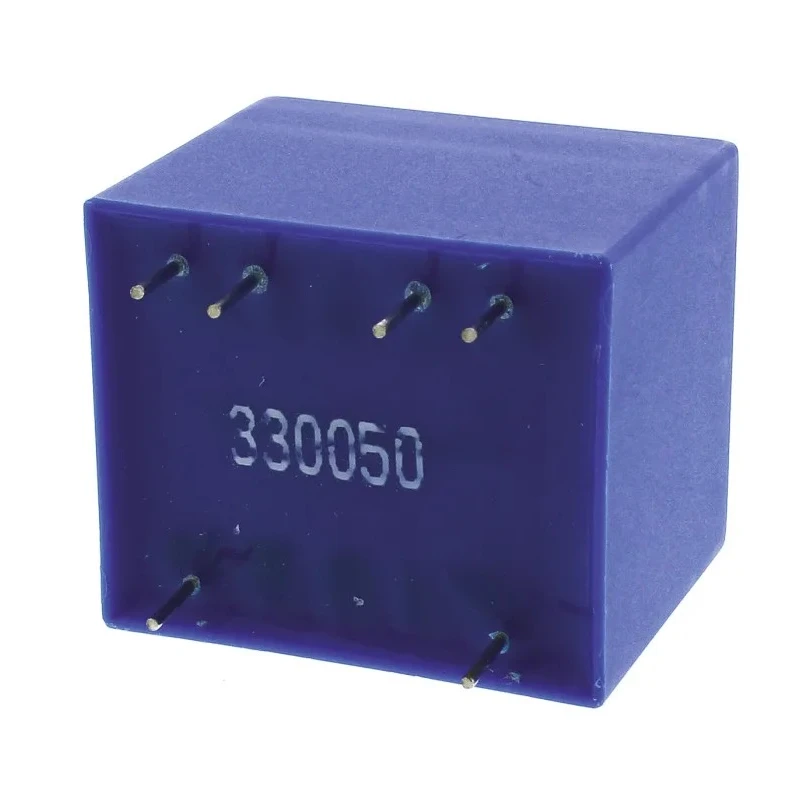

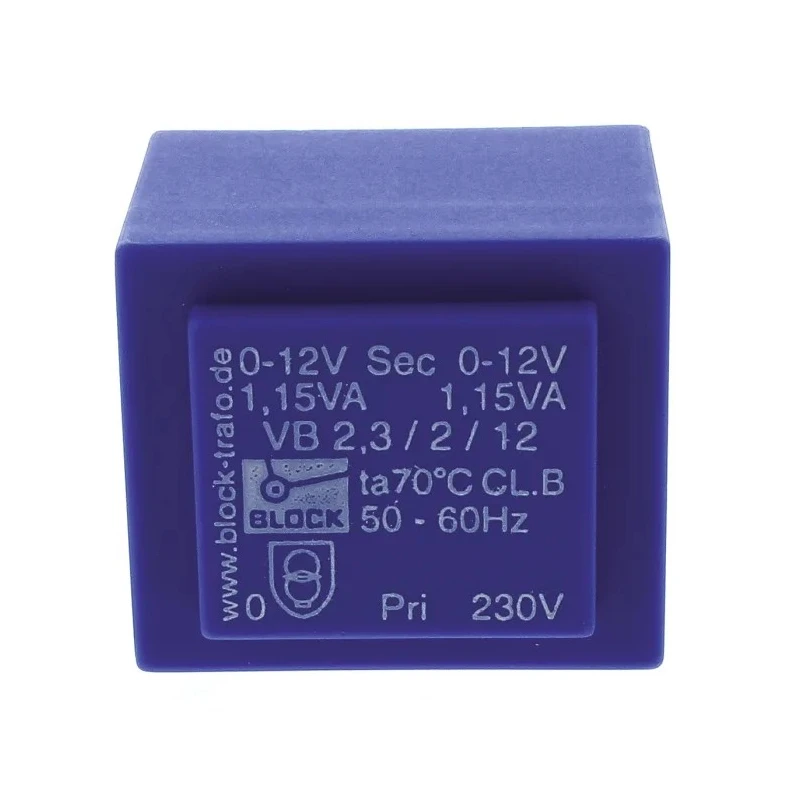

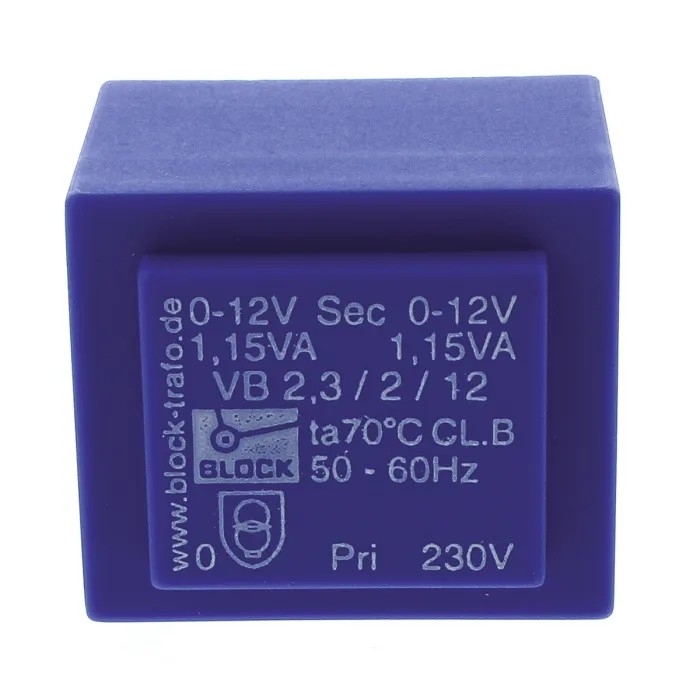

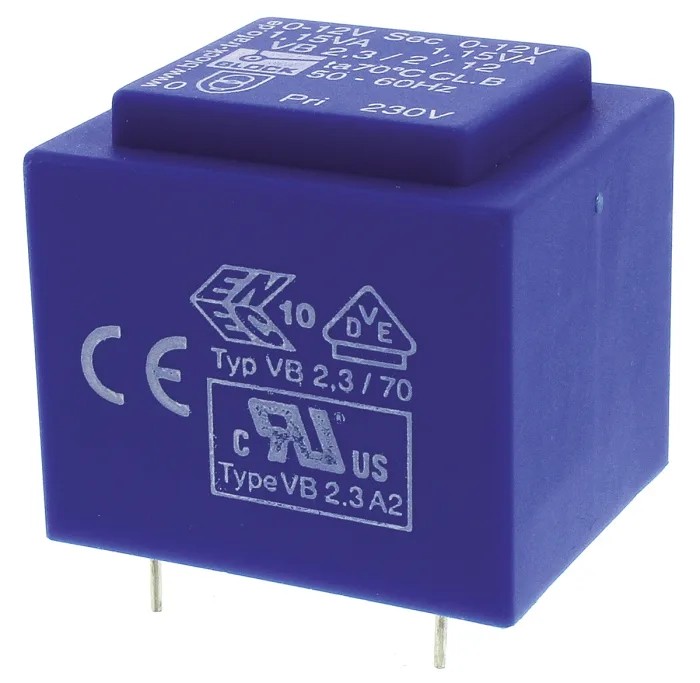

Block PCB Transformer 2 x 12 V AC 2 Output Pin, 230 V AC Primary, 2.3 VA Power, Pin Mount VB 2.3/2/12

Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin Germany
Brand Block
Efficiency 59%
Length 32.3mm
Model VB 2.3/2/12
Depth 27.3mm
Gross Weight 110g
Width 29mm
Mount Type Pin
Maximum Operating Temperature 70°C
Number of outputs 2
Primary Voltage 230 V ac
Secondary Voltage 2 x 12 V ac
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz

Key Features

  • Designed for efficient operation with 59% efficiency.
  • Mount type is pin, suitable for PCB soldering.
  • Operates reliably between 50 Hz to 60 Hz frequencies.
  • Capable of withstanding maximum operating temperature up to 70°C.
  • Meets multiple international standards including DIN EN 61558-2-6 and UL 5085.
  • Constructed with vacuum epoxy resin molded bobbins for durability.
  • Inherently short circuit proof for enhanced safety in VB series.
  • Low noise and low inter-winding capacitance design.

Product Description

Block VB 2.3/2/12 is a high-quality PCB Transformer designed for electronic and electrical power supply applications, providing 2.3 VA power with dual 12 V AC outputs. Its pin mounting configuration is ideal for secure attachment on printed circuit boards.

The transformer features a 230 V AC primary input operating within the 50 Hz to 60 Hz frequency range, making it suitable for standard electrical systems. Its compact construction includes dimensions of 32.3 mm length, 29 mm width, and 27.3 mm depth, allowing efficient use of PCB space.

Manufactured in Germany, this unit meets rigorous standards such as DIN EN 61558-2-6, ENEC 10 (VDE), CSA 22.2 No.66, and UL 5085-1/-2 with VDE 0570 Part 2-6 certification, ensuring compliance and reliability.

The transformer uses vacuum epoxy resin molded bobbins rated UL94-V0 and double-section glass fibre reinforced polyamide for enhanced mechanical strength and safety. It is 100% electrically and flash tested to guarantee performance and durability.

Additionally, the VB series is inherently short circuit proof, providing increased protection for sensitive electronics. Its design achieves a 59% efficiency rating and features low radiated noise and low inter-winding capacitance for performance optimization.

This transformer is suitable for various industrial, laboratory, construction, and manufacturing applications where reliable power transformation with defined outputs is essential.

Designed for efficient operation with 59% efficiency. Mount type is pin, suitable for PCB soldering. Compact size suitable for PCB mounting. Wide operating frequency range from 50 Hz to 60 Hz. Inherently short circuit proof for safety.

Meets multiple international standards and certifications. Vacuum epoxy resin molded with UL94-V0 rating for fire safety. Low noise and low inter-winding capacitance technical features. Explore more transformers and power supply solutions in the Electronics & Electricals category at EnvMart.

Block PCB Transformer 2 x 12 V AC 2 Output Pin, 230 V AC Primary, 2.3 VA Power, Pin Mount VB 2.3/2/12
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The primary voltage rating of this transformer is 230 V AC.

This model provides dual secondary voltage outputs of 2 x 12 V AC.

The efficiency rating of this transformer is 59%.

The maximum operating temperature for this unit is 70°C.

The dimensions of this transformer are 32.3 mm in length, 29 mm in width, and 27.3 mm in depth.

The mount type of this transformer is pin, suitable for PCB soldering.

It operates reliably within a frequency range of 50 Hz to 60 Hz.

Yes, the VB series transformers are inherently short circuit proof, enhancing safety for sensitive electronics.

This transformer meets multiple international standards including DIN EN 61558-2-6, UL 5085, and CSA 22.2 No.66.

The gross weight of this transformer is 110 grams.

This transformer is manufactured in Germany.

It is constructed with vacuum epoxy resin molded bobbins and double-section glass fibre reinforced polyamide for enhanced mechanical strength.
