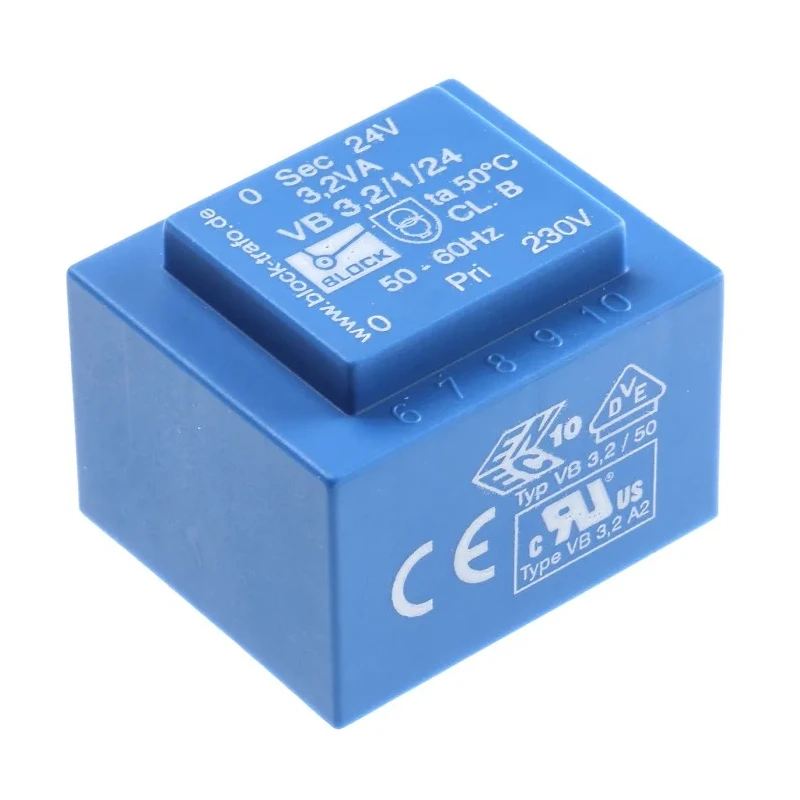

Block PCB Transformer 24 V AC 1 Output Pin 3.2 VA Efficiency 58% Isolation Voltage 5000V VB 3,2/1/24

Block VB 3,2/1/24 PCB Transformer is a 3.2 VA power transformer featuring a 24 V AC single output designed for efficient and reliable PCB mounting applications in industrial and electronic systems.

This transformer offers a primary voltage of 230 V AC and a secondary voltage of 24 V AC with one output pin, making it ideal for compact power supply circuits where space is limited. Its dimensions of 41 mm length, 35 mm width, and 30.8 mm depth allow easy integration on printed circuit boards.

The unit is constructed with vacuum epoxy resin moulding rated UL94-V0 and double section glass fibre reinforced polyamide bobbins, ensuring excellent electrical insulation and durability. It is inherently short circuit proof, complying with ENEC 10 (VDE) and C-UL-US standards, guaranteeing safety and reliability for industrial, laboratory, and commercial power supply applications.

Operating efficiently at 58% with low temperature rise and minimal inter-winding capacitance, the transformer is capable of continuous operation up to 50°C and supports frequencies ranging from 50 Hz to 60 Hz. Its isolation voltage is rated at 5000 V, providing robust protection against voltage spikes.

The design ensures low radiated noise, making it suitable for sensitive electronic equipment. Lightweight at 170 g, it facilitates easier handling and mounting with pin-type mounting technology. This product is manufactured in Germany, reflecting high-quality engineering and stringent quality control.

Provides 24 V AC secondary voltage with 230 V AC primary voltage. Compact design with precise dimensions for PCB integration. Vacuum epoxy resin moulded with UL94-V0 rating for safety. Short circuit proof with compliance to ENEC 10 (VDE) and C-UL-US standards.

Efficient operation with 58% efficiency and low temperature rise. 5000 V isolation voltage ensures robust electrical protection. Operates reliably across 50 Hz to 60 Hz frequencies. Lightweight and pin-mounted for secure PCB installation.

This Block PCB Transformer is ideal for electronic manufacturing, power supply design, commercial electrical systems, and industrial automation requiring stable low-voltage AC power with high safety and durability standards. Explore more transformers and power components available in the Electronics & Electricals category at EnvMart.
