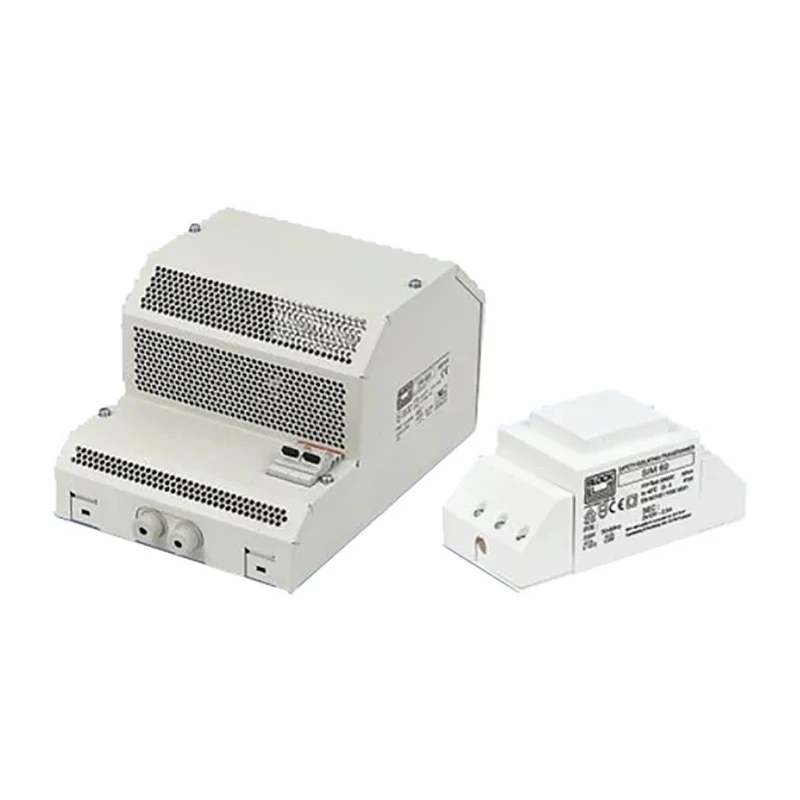

Block Site Transformer 1 kVA, 230 V AC Primary, 2 x 115 V AC Secondary, 4.35 A Output TIM1000

Block TIM1000 Site Transformer is a durable and high-efficiency 1 kVA safety isolating transformer designed for industrial and electronic applications requiring reliable AC voltage conversion and electrical isolation. It features a primary voltage rating of 230 V AC single phase and dual secondary windings providing 2 x 115 V AC outputs with an output current rating of 4.35 A. The transformer is equipped with short circuit proof technology and thermal overload protection to ensure operational safety and longevity.

Constructed within a metal enclosure with fixing holes, the TIM1000 enables easy and secure mounting. It incorporates screw terminals for input and output wiring, along with strain relief to safeguard connection leads. The dual secondary winding design allows flexible usage in series or parallel connections to meet various voltage output requirements.

With a high efficiency of typically 88%, the transformer integrates primary fuse protection and meets rigorous international standards including VDE, IEC 61558-2-4, EN 61558-2-4, and has cURus certifications. It is suitable for ambient operation temperatures up to 40°C, and features insulation classified under Class B along with an IP20 protection rating for safety against solid foreign objects.

Physical dimensions are 283 mm in length, 245 mm in width, and 148 mm in depth, with a gross weight of 17.1 kg, making it a compact yet robust device for various power supply and distribution systems.

This transformer is ideal for use in industrial machinery, laboratory equipment, HVAC systems, manufacturing processes, and commercial electrical installations where safety isolation and voltage regulation are critical.

Single phase 230 V AC input with dual 115 V AC secondary outputs. Short circuit proof and thermally protected for safe operation. Metal enclosure with mounting holes and screw terminal connections. High efficiency and primary fuse for protection.

Meets international safety and performance standards. Operates up to 40°C ambient temperature with Class B insulation. Explore more Site Transformers and related products in the Electronics & Electricals category on EnvMart for your industrial and commercial power needs.
