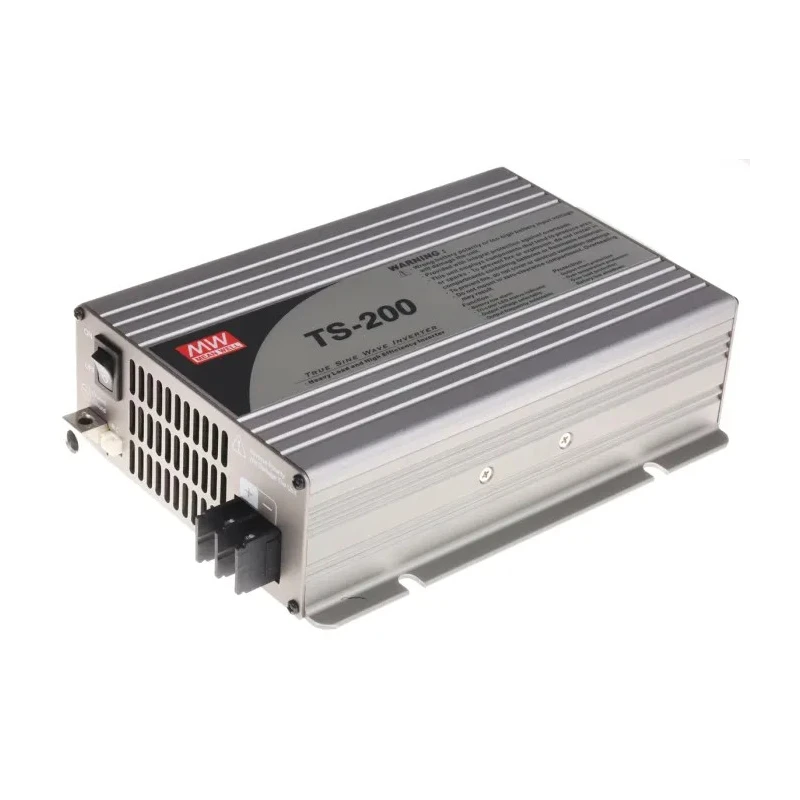

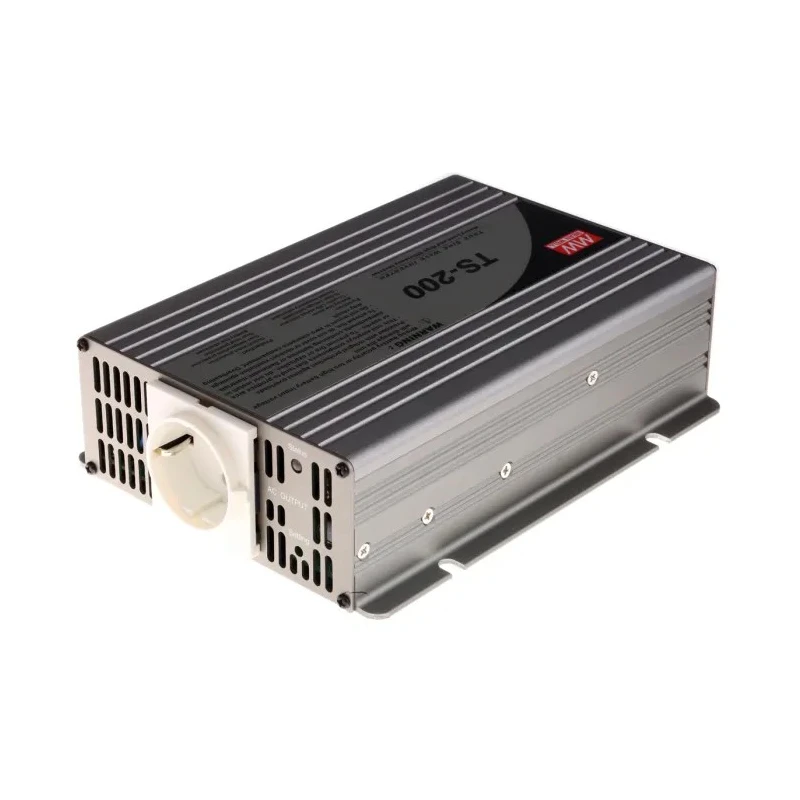

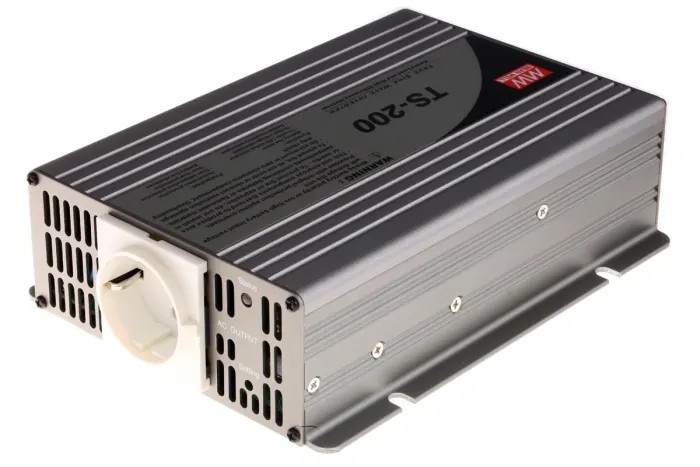

MEAN WELL Panel 200W True Sine Wave Power Inverter 21V dc, 30V dc Input, 230V ac Output TS-200-224B

MEAN WELL TS-200-224B is a high-performance panel mount 200W true sine wave DC-AC power inverter designed for reliable and efficient power conversion. Featuring digital microprocessor control and high frequency circuit topology, it achieves an efficiency of up to 87.5%. This inverter supports input voltages of 21V dc and 30V dc, converting them into a stable 230V ac output suitable for sensitive electronic equipment and harsh load conditions.

The inverter can continuously deliver 200W power while handling peak loads up to 400W surge power for short durations. The low total harmonic distortion (THD) below 3% ensures the output power is clean and stable, providing excellent protection for connected devices. Configurations such as output voltage and frequency can be adjusted easily via the front panel, allowing flexibility for various applications.

Robust protection features include reverse polarity protection to safeguard the device during installation or faults. The compact dimensions of 205mm length, 158mm width, and 59mm depth with a lightweight of 1.6 kg make it ideal for panel mounting in vehicles, yachts, mobile homes, and other mobile or stationary setups.

The TS-200-224B meets international standards including CE, cULus, and FC certifications, underlining its quality and safety. The inverter is suitable for industrial, commercial, and residential use, powering tools, office devices, and portable equipment where mains voltage is unreliable or unavailable.

Operating within a temperature range of -10°C to 35°C, this power inverter functions reliably even under varying environmental conditions. Its Euro 2-Pin output connector enhances compatibility with common AC devices.

High efficiency of 87.5% improves energy utilization and reduces losses. True sine wave output ensures precision and compatibility with sensitive electronics. Robust protection features guarantee safe and reliable operation.

Compact and lightweight panel mount design simplifies installation. Wide operating temperature range supports diverse working environments. International compliance with CE, cULus, and FC standards. Adjustable output voltage and frequency for versatile applications.

Suitable for industrial, commercial, and mobile power needs. Supports surge power to accommodate transient high loads. Compatible Euro 2-Pin output connector included. For a wide range of electronic and power supply needs, explore the MEAN WELL Power Inverter series and related products at EnvMart for trusted industrial solutions.
