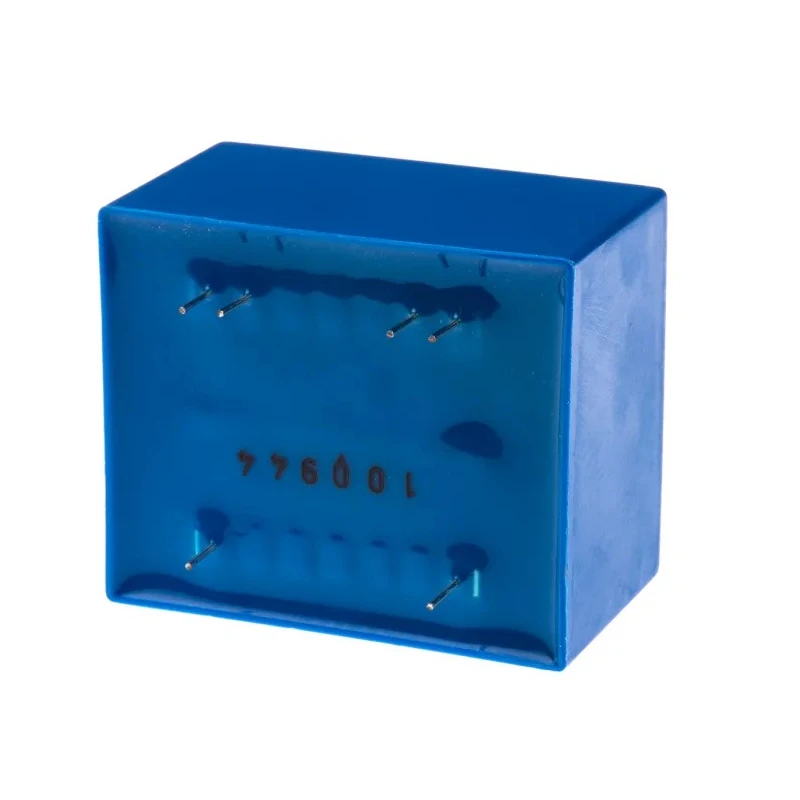

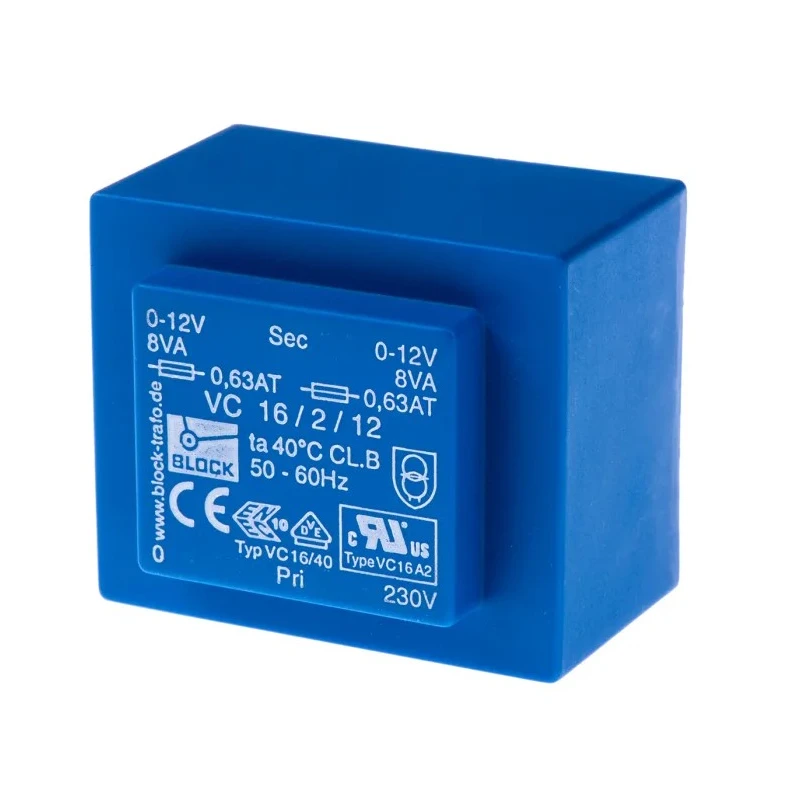

Block Pin Mount 16VA 2 x 12 V AC 230 V AC 2 Output PCB Transformer VC 16/2/12
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Block |
| Efficiency | 76% |
| Length | 57mm |
| Model | VC 16/2/12 |
| Depth | 48mm |
| Gross Weight | 420g |
| Width | 39mm |
| Mount Type | Pin |
| Series | VC 16/2/12 |
| Maximum Operating Temperature | 104°F |
| Number of outputs | 2 |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 2 x 12 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Offers 2 outputs of 12 V AC each for versatile application.
- Primary voltage rating of 230 V AC suitable for standard mains supply.
- Constructed with pin mount for easy PCB integration and secure fixing.
- Vacuum resin moulded to UL94-V0 rating ensures electrical safety and durability.
- Low inter-winding capacitance and radiated noise support clean signal transmission.
- Meets multiple standards including CSA 22.2 No.66 and DIN EN 61558-2-6.
- Efficiency rated at 76% with low operational heat.
- Compact dimensions allow flexible PCB integration.
Product Description
Block VC 16/2/12 is a pin mount PCB transformer rated at 16VA with dual 12V AC outputs, conforming to international standards such as CSA 22.2 No.66, DIN EN 61558-2-6, and cURus certifications. This transformer allows voltage conversion from 230 V AC primary to two separate secondary voltages of 12 V AC, making it suitable for diverse electronic and industrial equipment applications.
The transformer features vacuum resin moulding complying with UL94-V0 standards, providing superior electrical insulation and safety. It is designed with low inter-winding capacitance and minimal radiated noise, supporting noise-sensitive circuits and precision electronics.

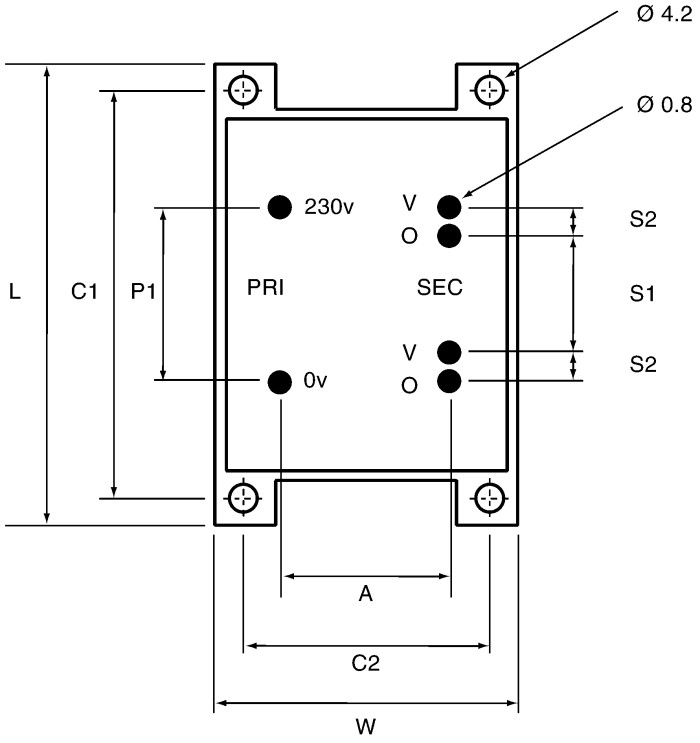

With pin mounting and additional fixing points, it ensures secure and reliable installation onto printed circuit boards. It operates efficiently with a 76% efficiency rating, a maximum temperature tolerance of 104°F, and covers the frequency range from 50Hz to 60Hz, compatible with various alternating current supplies.
The product’s compact size of 57mm length, 39mm width, and 48mm depth allows flexible use in constrained PCB layouts. It undergoes 100% electrical and flash testing to guarantee quality and performance reliability.
This Block series VC 16/2/12 PCB Transformer is ideal for industrial, laboratory, manufacturing, and electronic power supply applications, offering durability and conformity to relevant IEC, UL, and EN standards. Note that secondary windings should not be connected in series for 2 x 24V outputs as per VDE 0550 and UL506 regulations.
Offers 2 outputs of 12 V AC each for versatile application. Primary voltage rating of 230 V AC suitable for standard mains supply. Constructed with pin mount for easy PCB integration and secure fixing. Vacuum resin moulded to UL94-V0 rating ensures electrical safety and durability.
Low inter-winding capacitance and radiated noise support clean signal transmission. Meets multiple standards including CSA 22.2 No.66 and DIN EN 61558-2-6. Efficiency rated at 76% with low operational heat. Compact dimensions allow flexible PCB integration.
Maximum operating temperature of 104°F and frequency range 50-60Hz. Explore EnvMart for more Block transformers and PCB power supply components designed for reliable industrial and electronic system operations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC, making it suitable for standard mains supply.
This model provides two separate secondary voltage outputs of 12 V AC each.
The transformer has an efficiency rating of 76%, which helps reduce operational heat.
The dimensions of this transformer are 57 mm in length, 39 mm in width, and 48 mm in depth.
The maximum operating temperature for this transformer is 104°F.
It is constructed with a pin mount for easy integration onto printed circuit boards.
The transformer operates within a frequency range of 50 Hz to 60 Hz, making it compatible with various alternating current supplies.
This model meets multiple standards, including CSA 22.2 No.66 and DIN EN 61558-2-6, ensuring its compliance with safety regulations.
The gross weight of the VC 16/2/12 transformer is 420 g.
It features vacuum resin moulding that complies with UL94-V0 standards, providing superior electrical insulation and safety.
No, the secondary windings should not be connected in series for 2 x 24V outputs as per VDE 0550 and UL506 regulations.
This transformer is suitable for diverse electronic and industrial equipment applications, including industrial, laboratory, and manufacturing uses.
