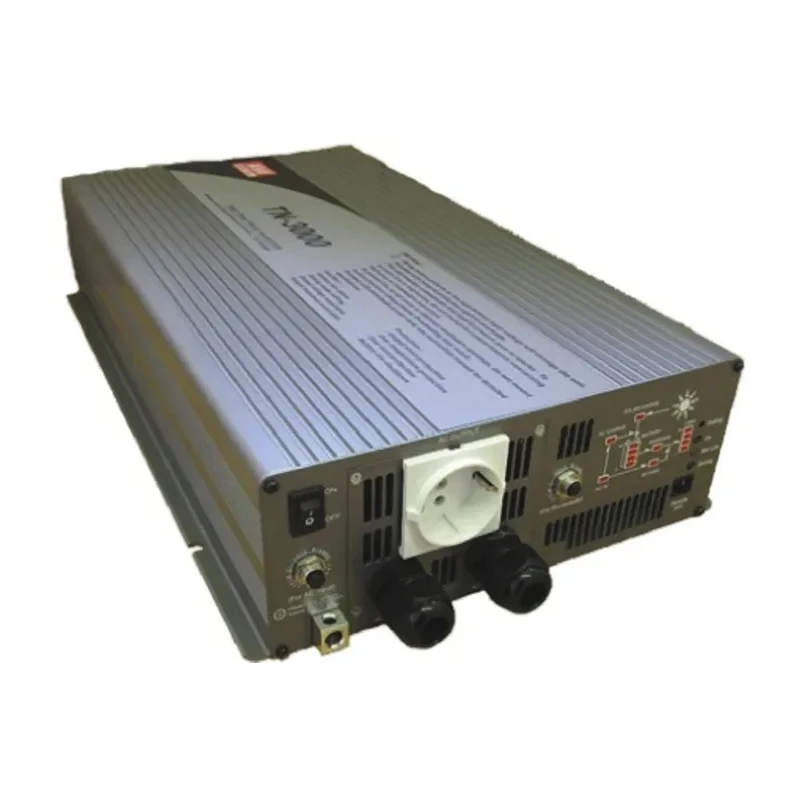

MEAN WELL Panel 3000W True Sine Wave Power Inverter 42-60V DC Input, 230V AC Output TN-3000-248B

MEAN WELL TN-3000-248B Panel Power Inverter is a high-performance true sine wave inverter providing 3000W of continuous power output. It supports DC input voltage from 42 to 60V and outputs a stable 230V AC supply suitable for diverse applications including home appliances, power tools, office and portable equipment, and vehicles.

Designed with integrated solar and AC charger functions, this inverter offers selectable UPS and energy-saving modes alongside standby saving options, enhancing operational efficiency and reliability. The device delivers high surge capability up to 6000W, accommodating transient high power demands seamlessly.

Efficiency is rated at 92 percent, ensuring minimal energy loss during operation. The unit supports a maximum output current of 60A and incorporates Schuko socket output connectors compatible with multiple plug types. Operating temperature is optimized between 0°C and 40°C, suitable for panel mounting installations.

Robust protection features include reverse polarity protection, battery low alarms and shutdown, overvoltage, over-temperature safeguards, output short circuit protection, input polarity reverse protection, overload prevention, and an AC circuit breaker, making the inverter safe for varied industrial, commercial, and residential uses.

Compliance with international standards such as FC, CE, and cULus underscores its quality and safety assurance. The inverter has an MTBF of 90000 hours, reflecting high durability and long service life. Its physical dimensions are compact with a length of 466.8mm, width of 283.5mm, and depth of 100mm, weighing 12.9kg, facilitating easy integration in panel-mounted systems.

High efficiency with 92 percent energy conversion rate. True sine wave output compatible with sensitive electronic equipment. Built-in solar and AC charger with UPS mode. Multiple advanced protection features for operational safety.

High surge power up to 6000W for handling peak loads. Schuko socket output for wide plug compatibility. Long operational life with MTBF of 90000 hours. Suitable for industrial, commercial, residential, and vehicle applications.

Compact and robust panel mount design. Manufactured in Taiwan, Province Of China. Explore the full range of Power Inverters and electronic components on EnvMart for efficient and reliable power supply solutions.
