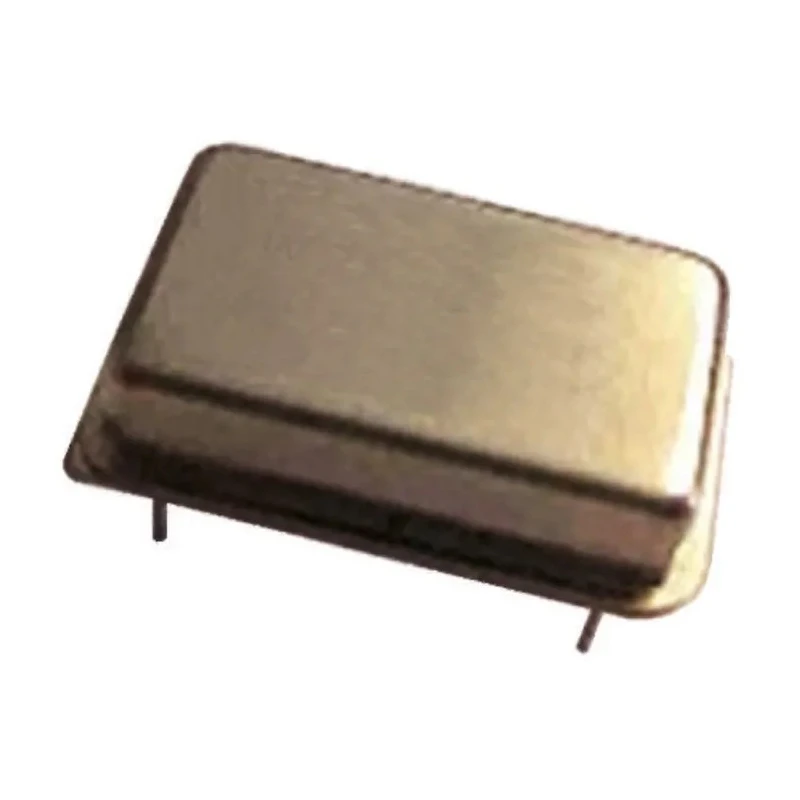

MERCURY 11.0592MHz Clock Oscillator ±50 ppm TTL HCMOS 14-Pin PDIP 5H14ET-11.0592
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-11.0592 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 11.0592MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | TTL, HCMOS |
Key Features
- This oscillator provides a stable clock output frequency at 11.0592MHz.
- It utilizes TTL and HCMOS compatible output levels for broad circuit compatibility.
- Encapsulated in an industry-standard 14-pin PDIP metal package for through-hole PCB mounting.
- Operates with a maximum supply voltage of 5V ensuring low power consumption.
- It features a frequency stability of ±50 ppm suitable for precision applications.
- Designed to operate in a temperature range from -40°C to 85°C for industrial environments.
- Compact dimensions measuring 20.2 mm (length) x 10.7 mm (width) x 5.08 mm (height).
- RoHS compliant, ensuring environmental safety and adherence to regulations.
Product Description
MERCURY 5H14ET-11.0592 Clock Oscillator is a precision 11.0592MHz frequency oscillator designed for electronic applications requiring a stable and reliable clock source. Featuring a 14-pin PDIP metal package, it is ideal for through-hole mounting on printed circuit boards commonly used in industrial and commercial electronic devices.
This oscillator delivers a TTL and HCMOS compatible output level, compatible with a wide range of digital circuits. It has a frequency stability of ±50 ppm, providing precise timing essential for communication, timing, and control systems in industrial automation, embedded systems, telecommunications, and instrumentation.
Operating from a 5V supply voltage, it ensures low power usage while operating reliably in harsh environments with an operating temperature range of -40°C to 85°C. Compact physical dimensions of 20.2 mm length, 10.7 mm width, and 5.08 mm height make it suitable for space-constrained designs.
Additionally, this product is RoHS compliant, demonstrating adherence to environmental and safety regulations. Manufactured in Taiwan, Province Of China, the oscillator meets high-quality standards expected in industrial and laboratory applications.
Stable 11.0592MHz clock frequency output for timing precision. TTL and HCMOS output levels compatible with digital logic circuits. Industry-standard 14-pin PDIP package for through-hole PCB mounting. Wide operating temperature range of -40°C to 85°C for demanding environments.
5V maximum supply voltage for low power consumption. Frequency stability of ±50 ppm ensuring reliable operation. Compact dimensions enable flexible PCB layout. RoHS compliant for environmental safety. Manufactured in Taiwan with stringent quality control.
This oscillator is suitable for use in industrial electronics, communication devices, measurement and testing equipment, embedded systems, and general timing applications. It offers a durable and precise clock source to improve system efficiency and reliability. Discover more electronic components in the Crystal Oscillator category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 11.0592MHz, providing a stable clock source for various electronic applications.
This model operates with a maximum supply voltage of 5V, ensuring low power consumption during operation.
It provides TTL and HCMOS compatible output levels, making it suitable for a wide range of digital circuits.
The oscillator operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The dimensions of this oscillator are 20.2 mm in length, 10.7 mm in width, and 5.08 mm in height.
This oscillator features a 14-pin configuration, suitable for through-hole mounting on printed circuit boards.
Yes, this oscillator is RoHS compliant, ensuring it meets environmental safety regulations.
The oscillator is manufactured in Taiwan, Province Of China, adhering to high-quality standards.
It is encapsulated in an industry-standard 14-pin PDIP metal package for through-hole PCB mounting.
This clock oscillator is suitable for use in industrial electronics, communication devices, measurement and testing equipment, and embedded systems.
The frequency stability of this oscillator is ±50 ppm, ensuring reliable operation for precision applications.
This model is classified as a clock oscillator, designed specifically for providing stable clock signals.
