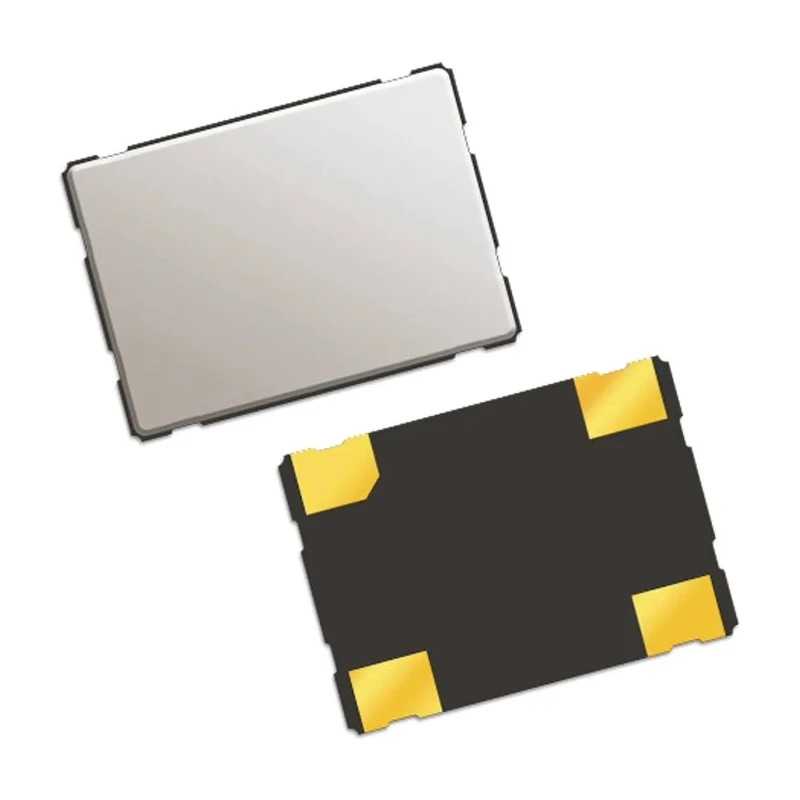

QT Quarztechnik 50MHz Clock Oscillator ±25 ppm HCMOS TTL 4-Pin Surface Mount QTX733A50.0000B15R

Free Delivery in India | Lowest Global Shipping Charges

QT Quarztechnik 50MHz Clock Oscillator ±25 ppm HCMOS TTL 4-Pin Surface Mount QTX733A50.0000B15R

Name: QT Quarztechnik 50MHz Clock Oscillator ±25 ppm HCMOS TTL 4-Pin Surface Mount QTX733A50.0000B15R
Brand: QT Quarztechnik
SKU: 376333
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand QT Quarztechnik Condition New

Specifications

Country of Origin	China
Brand	QT Quarztechnik
Height	1.4mm
Length	7.2mm
Model	QTX733A50.0000B15R
Packaging	Tape & Reel
Width	5.2mm
Mount Type	Surface
Series	QTX7
Maximum Operating Temperature	85°C
Output Frequency	50MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.3V
Load Capacitance	15pF
Oscillator Type	Clock
Output Level	HCMOS, TTL

Key Features

Operates with a stable output frequency of 50MHz for precise clock applications.
Features excellent frequency stability of ±25 ppm over its operating temperature range.
Equipped with HCMOS and TTL compatible output levels for versatile digital integration.
Compact surface mount design with a 4-pin configuration ensures easy PCB assembly.
Wide operating temperature from -40°C to 85°C supports industrial and commercial uses.
Maximum supply voltage of 3.3V allows for low power consumption systems.
Load capacitance of 15pF ensures accurate frequency response and signal integrity.
Encapsulated in a durable 7.2mm x 5.2mm x 1.4mm ceramic case from the QTX7 series.

Product Description

QT Quarztechnik QTX733A50.0000B15R is a 50MHz clock oscillator designed for precision and reliability in electronic systems. This 4-pin surface mount oscillator utilizes HCMOS and TTL output levels, delivering a stable signal with ±25 ppm frequency stability across a wide temperature range from -40°C to 85°C. Its compact 7.2mm by 5.2mm ceramic case and low 1.4mm profile make it ideal for dense circuit board layouts in various industrial, commercial, and electronic applications.

The oscillator operates at a maximum supply voltage of 3.3V, making it suitable for low power circuits. With a load capacitance of 15pF, it ensures accurate frequency output that is critical for timing, synchronization, and clock generation tasks in digital and communication devices.

Designed to be tape and reel packaged, the QTX733A50.0000B15R supports automated manufacturing processes and surface mount assembly methods. It complies with RoHS standards, underscoring its environmental friendliness and quality assurance.

This model belongs to the QTX7 series of crystal oscillators, housed in a durable ceramic case that provides mechanical stability and protection against environmental factors. The device's 4-pin configuration facilitates easy mounting on PCB substrates.

Operates at 50MHz output frequency with ±25 ppm stability. HCMOS and TTL output levels for compatibility with digital circuits. Compact surface mount 7.2mm x 5.2mm x 1.4mm ceramic package. Wide operating temperature range: -40°C to 85°C for industrial use.

Low power consumption with max supply voltage of 3.3V. 15pF load capacitance for precise timing signals. RoHS compliant to meet environmental regulations. Tape and reel packaging suitable for automated assembly. Reliable 4-pin mount type ensures stable mechanical connection.

This QT Quarztechnik oscillator is suited for applications in electronic components manufacturing, telecommunications, industrial automation, and embedded systems requiring precise clock sources. Explore more crystal oscillators and other electronic components to meet your industrial design and production needs at EnvMart.
