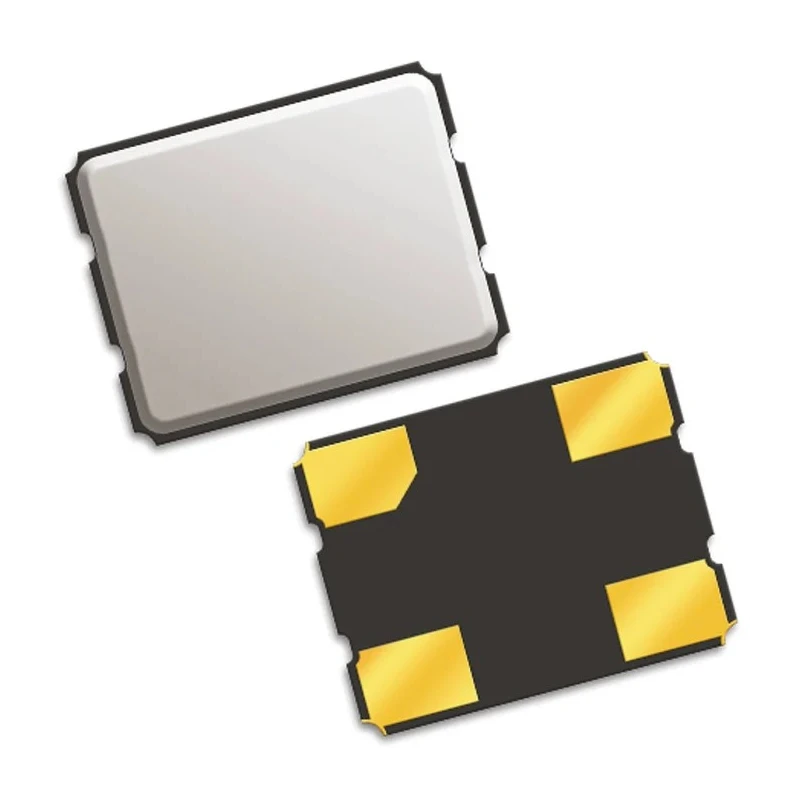

QT Quarztechnik 50MHz Clock Oscillator ±25 ppm TTL HCMOS 4-Pin Surface Mount QTX333A50.0000B15TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | QT Quarztechnik |
| Height | 1.2mm |
| Length | 3.4mm |
| Model | QTX333A50.0000B15TR |
| Packaging | Tape & Reel |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | QTX5 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 50MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock |
| Output Level | TTL, HCMOS |
Key Features
- Operates at a frequency of 50MHz with ±25 ppm frequency stability.
- Output levels compatible with TTL and HCMOS logic families.
- Maximum supply voltage of 3.3V ensuring low power consumption.
- Wide operating temperature range from -40°C to 85°C suitable for industrial applications.
- Compact surface mount package dimensions of 3.4mm x 2.7mm x 1.2mm.
- Tape and reel packaging supports automated assembly processes.
- Load capacitance is 15pF for optimal circuit performance.
- 4-pin surface mount design facilitates PCB integration.
Product Description
QT Quarztechnik QTX333A50.0000B15TR is a precision 50MHz clock oscillator designed for high-reliability electronic applications. Featuring a frequency stability of ±25 ppm, it provides consistent and accurate timing signals necessary for digital circuits.
The oscillator outputs TTL and HCMOS compatible signals, operating efficiently at a maximum supply voltage of 3.3V. Its wide operating temperature range from -40°C to 85°C makes it suitable for industrial, commercial, and embedded electronics applications.
Encased in a compact 4-pin surface mount ceramic package measuring 3.4mm in length, 2.7mm in width, and 1.2mm in height, it supports tape and reel packaging ideal for modern PCB assembly lines. The specified load capacitance is 15pF, optimizing circuit stability and performance.
This Crystal Oscillator is RoHS compliant, aligning with environmental and safety regulations. It is part of the QTX5 series and is manufactured in China, ensuring consistent quality standards.
Operates at 50MHz frequency with ±25 ppm stability. TTL and HCMOS output compatible with a variety of logic devices. Low power operation at 3.3V supply voltage. Wide temperature range accommodates industrial environments.
Compact 4-pin surface mount form factor for PCB integration. Tape and reel packaging supports automated manufacturing. RoHS compliant ensuring eco-friendly materials and processes.
This oscillator is ideal for electronic components, industrial controls, and communication systems requiring precise timing and stable clock signals. Browse more precision clock oscillators and electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 50MHz.
It has a frequency stability of ±25 ppm.
It supports output levels compatible with TTL and HCMOS logic families.
The maximum supply voltage is 3.3V.
The operating temperature range is from -40°C to 85°C.
The dimensions are 3.4mm in length, 2.7mm in width, and 1.2mm in height.
The load capacitance is specified at 15pF.
It is packaged in tape and reel format, which supports automated assembly processes.
This model features a pin count of 4.
Yes, this oscillator is RoHS compliant, aligning with environmental and safety regulations.
It belongs to the QTX5 series.
It is manufactured in China.
