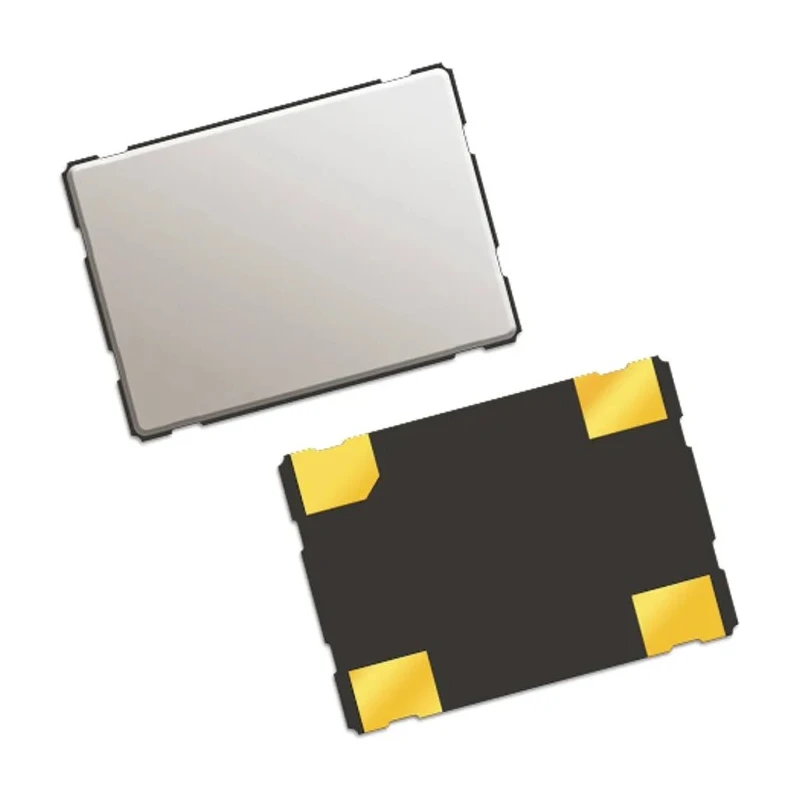

QT Quarztechnik 11.0592MHz Clock Oscillator ±25 ppm HCMOS TTL 4-Pin Surface Mount QTX733A11.0592B15R

QT Quarztechnik QTX733A11.0592B15R clock oscillator is a precision electronic component designed for timing and frequency control applications in industrial, communication, and embedded systems. Featuring a high frequency output of 11.0592MHz with a frequency stability of ±25 ppm, this oscillator provides accurate clock signals essential for synchronous operations.

Its HCMOS and TTL compatible output levels ensure versatility across a range of digital circuit designs, while the compact 4-pin surface mount package enables space-saving PCB integration. The oscillator supports a maximum supply voltage of 3.3V, promoting energy-efficient system designs while operating reliably within a temperature range from -40°C to 85°C, accommodating various environmental conditions including industrial and automotive electronics.

The package dimensions of 7.2mm length, 5.2mm width, and 1.4mm height correspond to the QTX7 series' ceramic case, providing mechanical stability and robustness. Its load capacitance of 15pF is optimized for steady and consistent clock output performance. Supplied in tape & reel packaging format, it facilitates streamlined automated pick-and-place assembly processes in manufacturing.

The oscillator uses HCMOS and TTL output levels for broad compatibility. It has a 4-pin configuration suitable for compact PCB layouts. Operating temperature ranges from -40°C to 85°C ensuring reliability in various environments.

Maximum supply voltage is 3.3V supporting low power consumption. The surface mount package measures 7.2mm length, 5.2mm width, and 1.4mm height. It comes packaged in tape and reel for efficient automated assembly processing.

Load capacitance is specified at 15pF for stable signal output. Complies with RoHS environmental standards. Manufactured in China under the QTX7 series crystal oscillator family.

This oscillator is ideal for use in industrial machinery timing, telecommunication equipment, embedded system clock generation, and consumer electronics where precise timing is critical. Its robust design and proven reliability make it suitable for demanding environments requiring surface mount crystal oscillators.
