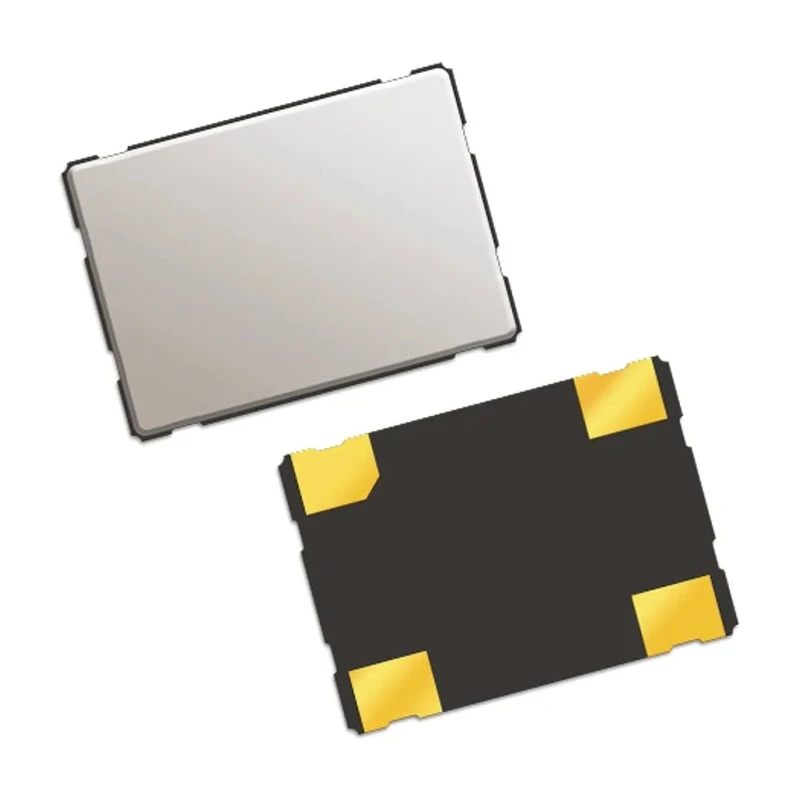

QT Quarztechnik 33MHz Clock Oscillator ±25 ppm HCMOS TTL 4-Pin Surface Mount QTX733A33.0000B15R
Specifications
| Country of Origin | China |
|---|---|
| Brand | QT Quarztechnik |
| Height | 1.4mm |
| Length | 7.2mm |
| Model | QTX733A33.0000B15R |
| Packaging | Tape & Reel |
| Width | 5.2mm |
| Mount Type | Surface |
| Series | QTX7 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 33MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
| RS PRO, 33.33MHz Clock Oscillator, ±50ppm CMOS, 4-Pin SMDBrand | RS PRO |
Key Features
- Operates at an output frequency of 33MHz with HCMOS and TTL compatible output levels.
- Features a 4-pin surface mount package for compact installation.
- Ensures frequency stability within ±25 ppm for reliable timing performance.
- Supports a maximum supply voltage of 3.3V suitable for low voltage circuits.
- Rated for operating temperatures from -40°C to 85°C for industrial environments.
- Package dimensions measure 7.2mm length, 5.2mm width, and 1.4mm height.
- Load capacitance is specified at 15pF for effective signal conditioning.
- RoHS compliant, meeting environmental and safety standards.
Product Description
QT Quarztechnik model QTX733A33.0000B15R is a 33MHz clock oscillator engineered for precision frequency control in electronic applications. This surface mount oscillator offers stable operation with a frequency stability of ±25 ppm, ensuring accurate timing for devices requiring high reliability.
Equipped with HCMOS and TTL output levels, this oscillator supports diverse digital circuits. It operates at a maximum supply voltage of 3.3V and accommodates a broad temperature range from -40°C to 85°C, making it suitable for industrial and commercial environments.
The compact 4-pin surface mount package measures 7.2mm in length, 5.2mm in width, and 1.4mm in height, facilitating efficient PCB layout and reduced board space. With a load capacitance of 15pF, this component provides optimized signal integrity and timing characteristics.
Compliance with RoHS standards affirms its environmental friendliness and safety. Manufactured under the QTX7 series in China, it assures consistent performance and quality for various applications including industrial automation, telecommunications, and consumer electronics.
Operates at an output frequency of 33MHz with HCMOS and TTL output levels. Compact 4-pin surface mount design for space-efficient PCB integration. Frequency stability of ±25 ppm for accurate timing. 3.3V maximum supply voltage optimized for low voltage circuits.
Operating temperature range from -40°C up to 85°C for harsh environments. Dimensions: 7.2mm length, 5.2mm width, and 1.4mm height. Load capacitance of 15pF enhances signal quality. RoHS compliant ensuring environmental standards adherence.
Reliable manufacturing quality from China under the QTX7 series.
This oscillator is ideal for industrial, telecommunications, computing, and consumer electronic applications requiring precise clock timing. Explore more components and Oscillators from QT Quarztechnik and related products in the EnvMart Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at an output frequency of 33MHz, providing precise timing for various applications.
The dimensions of this oscillator are 7.2mm in length, 5.2mm in width, and 1.4mm in height, making it suitable for compact installations.
It supports a maximum supply voltage of 3.3V, which is suitable for low voltage circuits.
This unit is rated for operating temperatures from -40°C to 85°C, making it suitable for industrial environments.
It features HCMOS and TTL compatible output levels, accommodating a variety of digital circuits.
The load capacitance is specified at 15pF, which helps in effective signal conditioning.
This model has 4 pins, designed for surface mount applications.
It is packaged in tape and reel format, facilitating easy handling and assembly.
Yes, it is RoHS compliant, meeting environmental and safety standards.
This model is part of the QTX7 series, ensuring consistent performance and quality.
This oscillator is suitable for applications in industrial automation, telecommunications, and consumer electronics that require precise clock timing.
It is classified as a clock oscillator, designed for precision frequency control in electronic applications.
