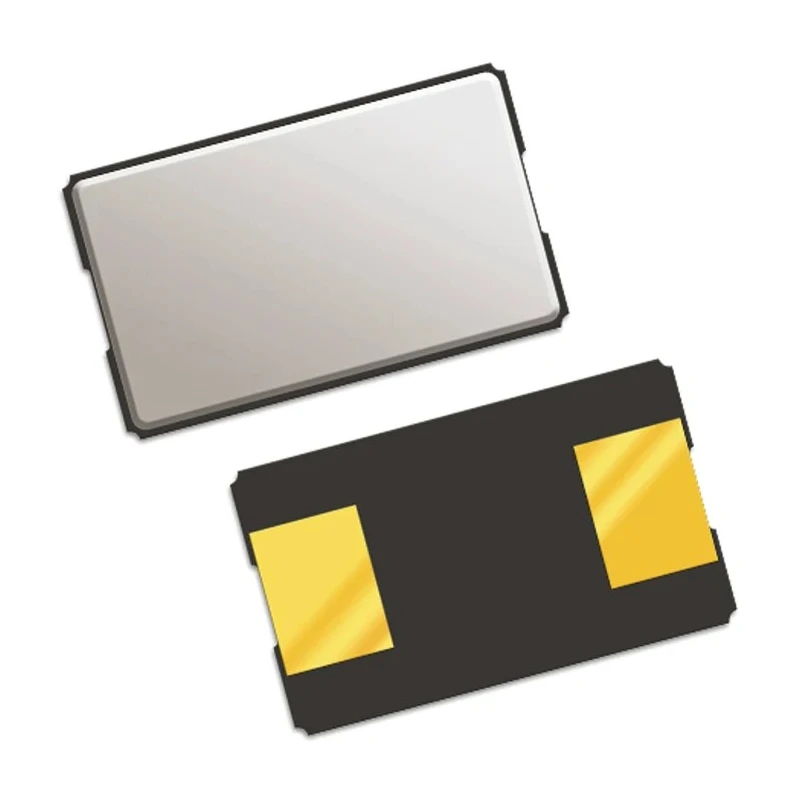

QT Quarztechnik 24 MHz Crystal ±10 ppm Surface Mount 2-Pin 6.2 mm x 3.7 mm x 1.2 mm QTC6B24.0000FDT1I20R
Specifications
| Country of Origin | China |
|---|---|
| Brand | QT Quarztechnik |
| Height | 1.2mm |
| Length | 6.2mm |
| Model | QTC6B24.0000FDT1I20R |
| Width | 3.7mm |
| Mount Type | Surface |
| Series | QTC6B |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- The crystal features a ceramic package with a metal lid to ensure high reliability.
- The compact crystal measures 6.2 mm in length, 3.7 mm in width, and 1.2 mm in height.
- It supports a load capacitance of 18 pF and a series resistance of 40 Ω.
- The device operates reliably within a temperature range of -40°C to 85°C.
- This crystal complies with RoHS and meets automotive standard AEC-Q200 requirements.
- Its low profile design is ideal for high density electronic equipment.
- Applicable in modem, communication, test equipment, PMCIA, wireless, and automotive applications.
Product Description
QT Quarztechnik QTC6B24.0000FDT1I20R is a 24 MHz crystal unit designed for surface mount use with two pins, providing high accuracy and frequency stability. Its ceramic package and metal lid construction ensure durability and high reliability, suitable for thin, compact equipment requiring tight frequency tolerance.
The crystal’s dimensions are 6.2 mm length, 3.7 mm width, and 1.2 mm height, making it ideal for high-density assemblies in industrial, communication, automotive, and test equipment sectors.
It offers a frequency tolerance of ±10 ppm and frequency stability of ±20 ppm, with a load capacitance of 18 pF and a series resistance of 40 Ω, capable of operating between -40°C and 85°C.
This product complies with RoHS standards and the automotive-grade AEC-Q200 for enhanced quality assurance. The crystal features a compact ceramic case ensuring a low profile and stable performance. It is designed specifically for surface mounting and high-density PCB layouts.
Applications include modem devices, wireless communication, automotive electronics, and various testing instruments. Its robust design meets industrial and automotive requirements for reliability and longevity. Supply format is tape packaging ready for machinery insertion, facilitating production efficiency.
QT Quarztechnik’s QTC6B24.0000FDT1I20R crystal unit is an excellent choice for engineers and designers seeking reliable frequency stability in compact surface-mount formats within electronic component categories.
Explore more in the Crystal Units category on EnvMart for a broad range of high-quality quartz crystal components.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 24 MHz.
This model measures 6.2 mm in length, 3.7 mm in width, and 1.2 mm in height.
It supports a load capacitance of 18 pF.
The series resistance is 40 Ω.
This model operates reliably within a temperature range of -40°C to 85°C.
Yes, it complies with RoHS standards and meets the automotive standard AEC-Q200 requirements.
It is designed for surface mounting with a 2-pin configuration.
It is applicable in modem devices, wireless communication, automotive electronics, and various testing instruments.
The supply format is tape packaging, which is ready for machinery insertion.
The frequency tolerance is ±10 ppm, with frequency stability of ±20 ppm.
The country of origin is China.
This crystal belongs to the QTC6B series.
