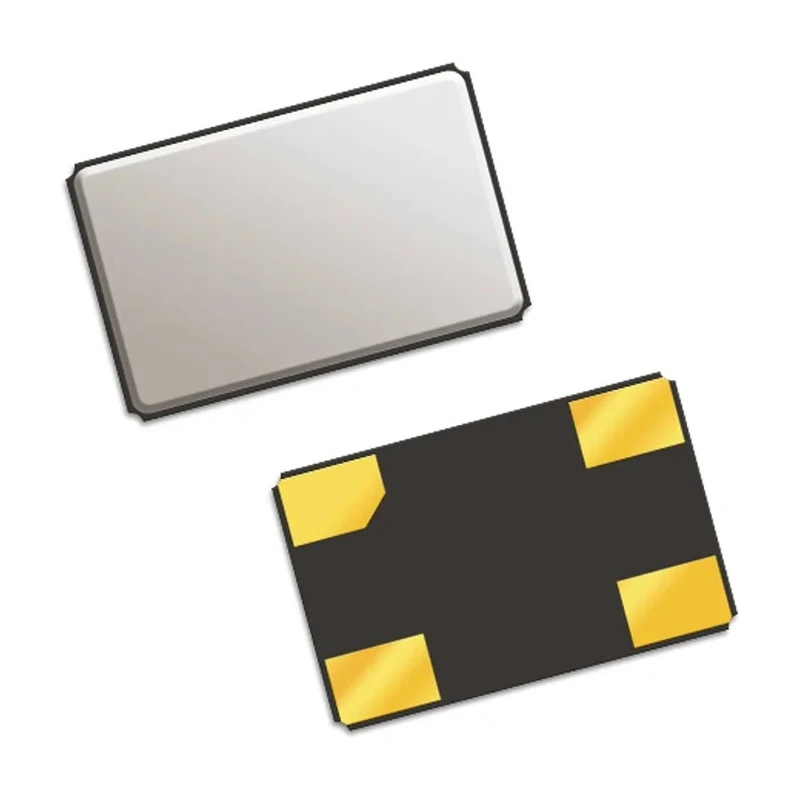

QT Quarztechnik 48 MHz Crystal ±10 ppm Surface Mount 4-Pin 5.2mm x 3.4mm x 1mm QTC5A48.0000FDT1I20R

Free Delivery in India | Lowest Global Shipping Charges

QT Quarztechnik 48 MHz Crystal ±10 ppm Surface Mount 4-Pin 5.2mm x 3.4mm x 1mm QTC5A48.0000FDT1I20R

Name: QT Quarztechnik 48 MHz Crystal ±10 ppm Surface Mount 4-Pin 5.2mm x 3.4mm x 1mm QTC5A48.0000FDT1I20R
Brand: QT Quarztechnik
SKU: 324949
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand QT Quarztechnik Condition New

Specifications

Country of Origin	China
Brand	QT Quarztechnik
Height	1mm
Length	5.2mm
Model	QTC5A48.0000FDT1I20R
Width	3.4mm
Mount Type	Surface
Series	QTC5A
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q200
Standard Frequency	48MHz
Load Capacitance	18pF
Series Resistance	100Ω
Abracon 48MHz Crystal ±20ppm HC-49-US SMD 2-Pin 11.5 x 4.7 x 4.2mmBrand	Abracon

Key Features

Standard frequency is 48 MHz ensuring stable signal output.
Load capacitance specified at 18 pF optimized for circuit matching.
Compact surface mount package with 4 pins for easy PCB integration.
Temperature operating range spans from -40°C to 85°C for reliability under varied conditions.
Series resistance of 100 Ω ensures consistent electrical characteristics.
Compliance with RoHS and automotive standard AEC-Q200 for quality assurance.
Made in China reflecting manufacturing origin.

Product Description

QT Quarztechnik QTC5A48.0000FDT1I20R 48 MHz Crystal ±10 ppm Surface Mount 4-Pin is designed for precise timing and frequency control in electronic circuits.

This crystal features a standard frequency of 48 MHz combined with a frequency tolerance of ±10 ppm, delivering stable and reliable oscillations suitable for industrial and automotive applications.

The component is housed in a compact surface mount package with four pins, measuring 5.2 mm in length, 3.4 mm in width, and 1 mm in height, enabling efficient use of PCB space. It operates effectively within a temperature range from -40°C to 85°C, maintaining performance across demanding environmental conditions.

The load capacitance is rated at 18 pF and the series resistance at 100 Ω, optimizing it for precise circuit integration and electrical characteristics. This product meets RoHS compliance and adheres to the automotive standard AEC-Q200, denoting its quality and reliability for automotive-grade electronics.

Manufactured in China, this crystal unit forms an essential component in electronics for timing, frequency stabilization, and signal generation used in industrial, automotive, telecommunications, and consumer electronics sectors.

Standard frequency is 48 MHz ensuring stable signal output. Frequency tolerance is ±10 ppm for high accuracy performance. Load capacitance specified at 18 pF optimized for circuit matching. Compact surface mount package with 4 pins for easy PCB integration.

Dimensions of 5.2 mm length, 3.4 mm width, and 1 mm height enable space saving. Temperature operating range spans from -40°C to 85°C for reliability under varied conditions. Series resistance of 100 Ω ensures consistent electrical characteristics.

Compliance with RoHS and automotive standard AEC-Q200 for quality assurance. Made in China reflecting manufacturing origin. Explore more advanced crystal units and electronic components at EnvMart to find the perfect fit for your industrial and commercial electronic projects.
