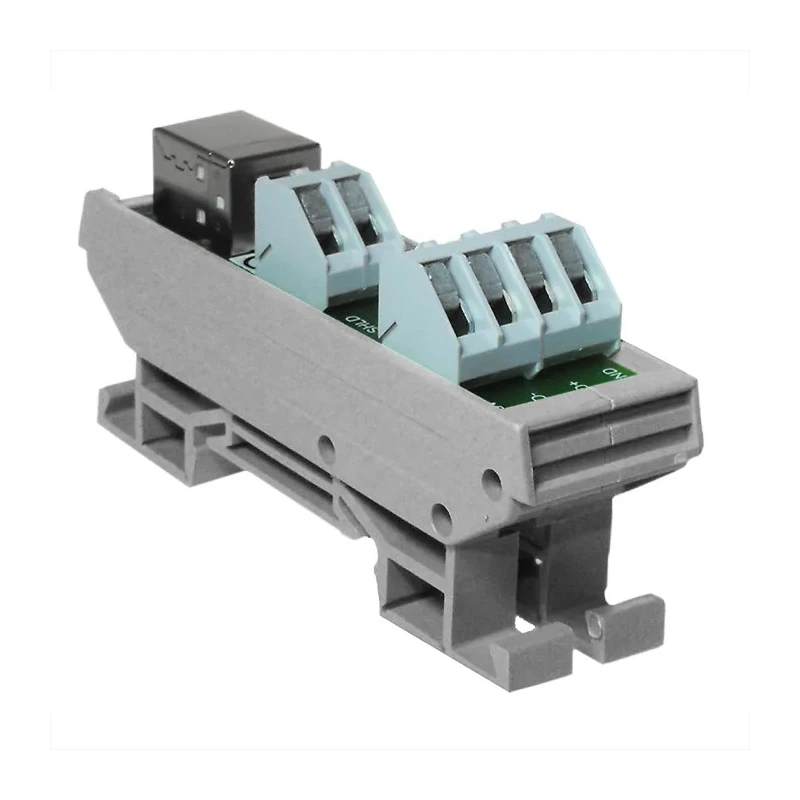

CAMDENBOSS CIM Series 4-Contact Female Interface Module, Screw Connector, DIN Rail Mount, 30V DC, 100mA Current CIM/USBB

Name: CAMDENBOSS CIM Series 4-Contact Female Interface Module, Screw Connector, DIN Rail Mount, 30V DC, 100mA Current CIM/USBB
Brand: CamdenBoss
SKU: 324622
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand CamdenBoss Condition New

Specifications

Country of Origin	United Kingdom
Voltage	30V dc
Brand	CAMDENBOSS
Orientation	Straight
Current	100mA
Length	26mm
Model	CIM/USBB
Depth	41mm
Connector Type	Screw
Width	83mm
Gender	Female
Mount Type	DIN Rail
Series	CIM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Wire size	12, 30AWG
Standards/Approvals	RoHS
Number of Contacts	4
Cable CSA	0.2, 4mm²
Test Proof Voltage	30V dc

Key Features

The module features 4 straight female contacts ensuring reliable electrical connections.
Suitable for wire sizes 12 and 30 AWG with cable cross-sectional areas from 0.2 to 4mm².
Mountable on a 35mm DIN rail for convenient industrial installation.
Operates efficiently within temperature range from -40°C to 80°C for versatile environments.
Provides a test proof voltage rating of 30V DC and complies with RoHS standards for environmental safety.
Compact dimensions measuring 83mm width, 41mm depth, and 26mm length.
Designed with screw type connectors for secure and easy wiring.
Includes separate shield connection terminals marked +5V, D-, D+, and GND for USB interface compatibility.

Product Description

CAMDENBOSS CIM/USBB is a 4-Contact Female Interface Module designed for industrial and electronic applications requiring reliable and compact interface solutions. Equipped with screw type connectors and mountable on a standard 35mm DIN rail, this module supports operation at 30V DC with 100mA current capacity, making it suitable for control, automation, and interface systems.

The product accepts wire sizes 12 and 30 AWG, with cable cross-sectional area ranging from 0.2 to 4mm², allowing flexible wiring options. Its straight orientation connectors facilitate easy integration in various electric circuits, while the measured width of 83mm, depth of 41mm, and length of 26mm provide a compact footprint for space-efficient installations.

Designed to operate reliably in harsh conditions, the module withstands ambient temperatures between -40°C and 80°C. It offers a test proof voltage of 30V DC and meets RoHS compliance for environmental standards, ensuring safety and regulatory conformity.

This USB interface module series is engineered with separate shield connection terminals labeled for +5V, D-, D+, and GND, ensuring effective signal management and shielding essential for USB communication and electrical noise reduction.

The module has 4 female contacts for secure connectivity. Screw connectors provide robust mechanical and electrical contact. DIN rail mounting allows easy installation in industrial panels. Wide operating temperature range suits various industrial environments.

Complies with RoHS for safe and eco-friendly usage. Compact size minimizes space usage in control panels. Separate shield connection supports USB communication stability.

Ideal for applications in industrial automation, electronic components assembly, and interface module requirements, the CAMDENBOSS CIM/USBB enhances system reliability and ease of maintenance. Browse the Interface Modules category on EnvMart for compatible products and accessories to complete your setup.
