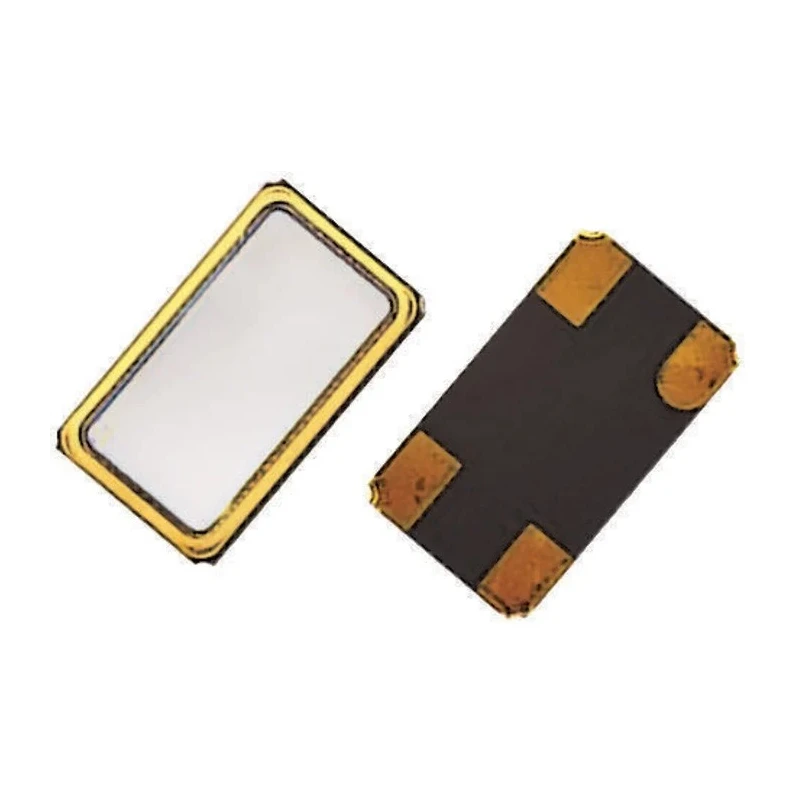

AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 6 mm x 3.5 mm x 1 mm C6S-16.000-12-3030-X

AKER C6S-16.000-12-3030-X is a precision 16 MHz crystal unit designed specifically for surface mount applications in electronic circuits. It provides stable frequency output with a tolerance and stability of ±30 ppm, ensuring excellent timing accuracy required in communication, computing, and control systems.

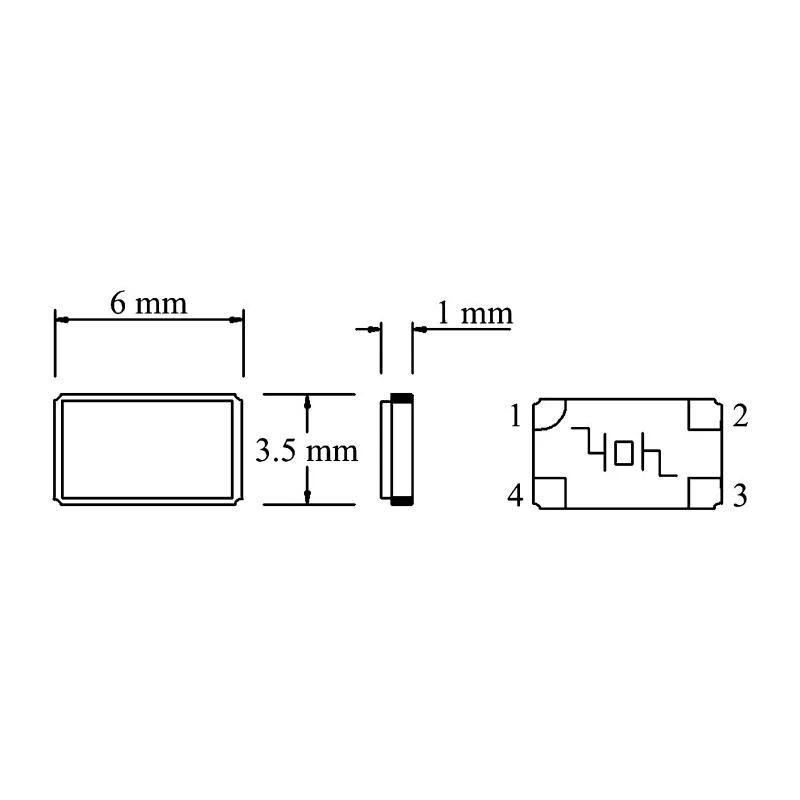

This crystal is housed in a compact surface mount ceramic package, measuring 6 mm in length, 3.5 mm in width, and 1 mm in height, with 4 pins for easy soldering to PCBs using automated assembly processes. Its load capacitance of 12 pF and series resistance of 60Ω optimize oscillator performance for low power and high-frequency stability.

With an operating temperature range from -40°C to +85°C, this crystal is suitable for a wide variety of industrial, commercial, and consumer electronics environments, including telecommunications, instrumentation, and embedded processing devices. It is compliant with RoHS environmental standards, supporting environmentally responsible manufacturing practices.

Packaging in tape and reel facilitates efficient handling and placement in high volume manufacturing. The AKER C6S-16.000-12-3030-X crystal unit is manufactured in Taiwan, Province Of China, ensuring consistent quality and supply reliability.

Standard frequency of 16 MHz ensures precise oscillation. Frequency tolerance and stability at ±30 ppm supports accurate timing needs. Surface mount package with 4 pins allows compact PCB design. Temperature range from -40°C to 85°C ensures operation in diverse conditions.

Compact dimensions (6 mm x 3.5 mm x 1 mm) suit space-constrained electronics. Load capacitance of 12 pF optimizes oscillator circuitry. Series resistance rated at 60 ohms for signal integrity. RoHS compliant supporting regulatory requirements.

Tape & reel packaging streamlines PCB assembly processes. Manufactured in Taiwan, Province Of China with high quality control.

This crystal unit is ideal for use in electronic applications requiring stable frequency signals such as telecommunications equipment, embedded systems, industrial instrumentation, and precision timing hardware. Its surface mount form factor supports modern automated PCB assembly lines, improving production speed and reliability.
