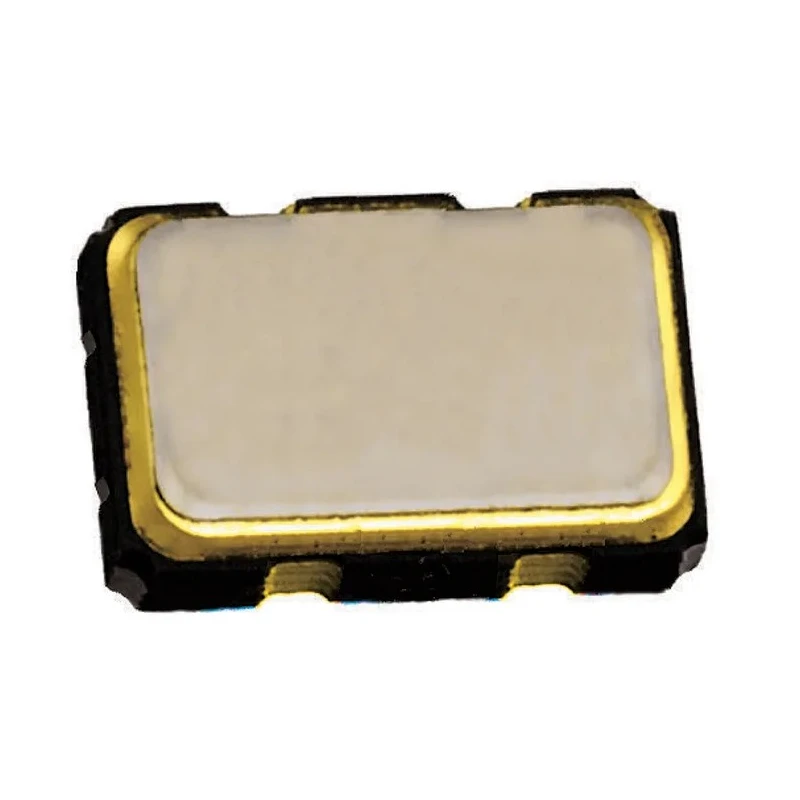

MERCURY 12 MHz Crystal Oscillator Surface Mount Device 4-Pin 0.9 mm Height 5 mm Length 3.2 mm Width MJ-12.000-12-30/30/4085

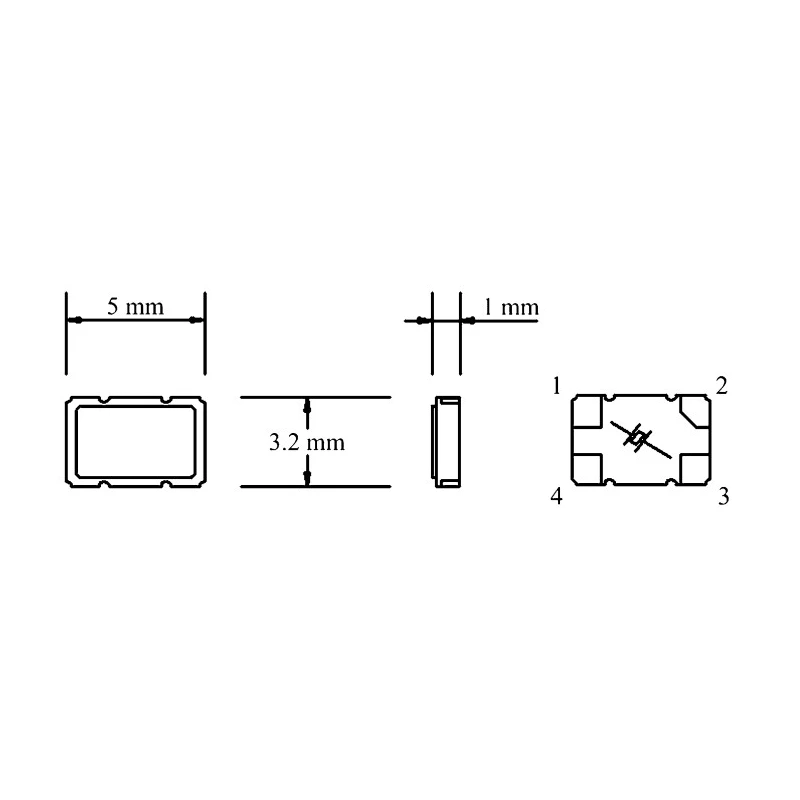

The MERCURY MJ-12.000-12-30/30/4085 is a 12 MHz standard frequency crystal oscillator designed specifically for surface mount technology (SMT) applications. Featuring a compact ceramic case measuring 5 mm in length, 3.2 mm in width, and 0.9 mm in height, this 4-pin crystal allows designers to implement high precision frequency references within limited PCB space requirements.

This crystal oscillator delivers a frequency tolerance and stability of ±30 ppm, making it suitable for timing, clock generation, and signal processing tasks across various industrial, telecommunications, and electronic equipment applications. The 12 pF load capacitance and series resistance of 50 ohms contribute to maintaining signal quality and minimizing interference.

It operates reliably across a wide temperature range from -40°C to 85°C, which accommodates a variety of industrial and commercial environments. Packaged in Tape & Reel format, it supports automatic pick-and-place assembly processes, enabling efficient mass production and reduced handling times.

Additionally, the component complies with RoHS directives, ensuring it meets current environmental standards for hazardous substances, thereby supporting sustainable manufacturing practices. Its country of origin is Taiwan, Province Of China, reflecting proven manufacturing capabilities in the electronics sector.

Standard frequency of 12 MHz with tight ±30 ppm tolerance and stability. Surface mount package type with 4-pin configuration for SMT circuit boards. Compact size: 5 mm length, 3.2 mm width, and 0.9 mm height. Load capacitance rating of 12 pF suited for oscillator circuit requirements.

Series resistance of 50 ohms ensures quality signal output. Wide operational temperature range from -40°C to 85°C for durability. Packaged in Tape & Reel for automated production efficiency. RoHS compliant material and manufacturing process for environmental safety.

Ideal for industrial, telecommunications, automotive, and consumer electronics. Explore more components in the Crystal Units category at EnvMart for high quality and reliable frequency solutions.
