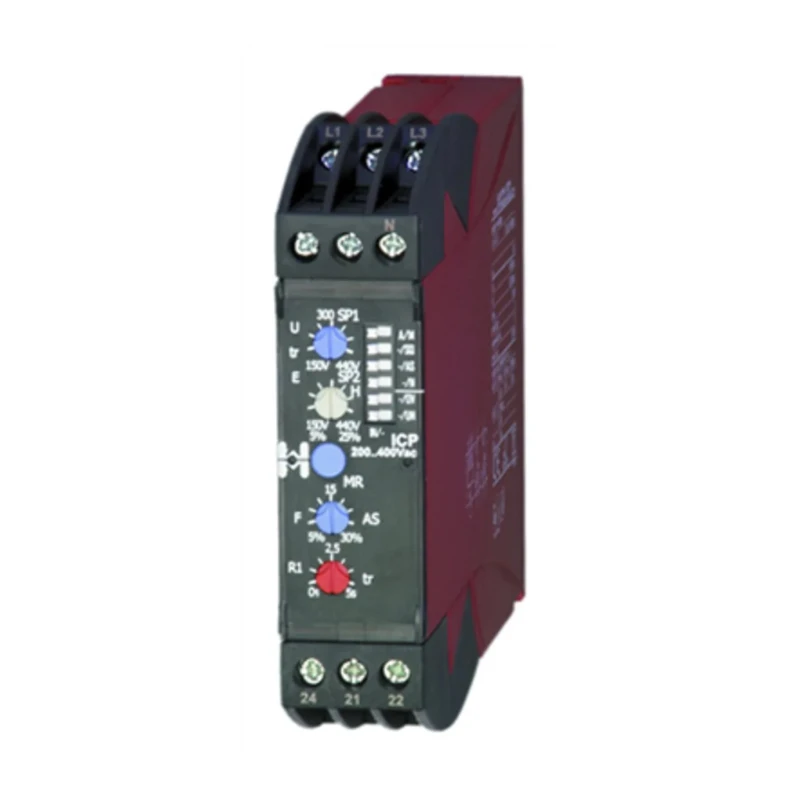

Hiquel Monitoring Relay 3 Phase 150/440 V Monitor Range DPDT DIN Rail Mount ICP.500AC

Free Delivery in India | Lowest Global Shipping Charges

Hiquel Monitoring Relay 3 Phase 150/440 V Monitor Range DPDT DIN Rail Mount ICP.500AC

Name: Hiquel Monitoring Relay 3 Phase 150/440 V Monitor Range DPDT DIN Rail Mount ICP.500AC
Brand: Hiquel
SKU: 136489
Price: 234.15 USD
Availability: InStock



Category Monitoring Relay Brand Hiquel Condition New

Specifications

Country of Origin	Austria
Power Consumption	1.5W
Brand	Hiquel
Height	110mm
Function	Phase Failure, Phase Sequence
Length	93.5mm
Model	ICP.500AC
Width	22.5mm
Mount Type	DIN Rail
Series	ICP
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	EN 60947-5-1, VDE 0435
Switching Voltage	230V ac
Contact Current	6A
Supply AC Voltage	115, 180, 440, 550V ac
Monitoring Voltage Range	150/440 V

Key Features

Monitors three-phase supplies with or without neutral connections.
Features rotary switches to adjust alarm thresholds and reaction times.
Includes an alarm memory function and LED indicator for status monitoring.
Offers automatic and manual reset selectable modes.
Compact 22.5 mm DIN Rail mount housing for industrial installations.
Detects phase failure even with regenerated voltage present.
Contact current rated at 6A with DPDT contact configuration.
Power consumption of 1.5 W ensures energy efficiency.

Product Description

Hiquel ICP.500AC is a 3 Phase Monitoring Relay with a 150/440 V monitor range, DPDT contact configuration, and DIN Rail mounting, suitable for industrial and electrical automation applications. It is engineered to detect phase failure, phase sequence, and phase asymmetry for three-phase supplies, with or without neutral connections.

The device features adjustable alarm thresholds and reaction times via rotary switches on the front panel. It supports three selectable voltage measurement functions and offers both automatic and manual reset options, making it adaptable to various monitoring needs. An alarm memory function and LED indicators provide clear status visualization.

This relay detects phase failures even in the presence of regenerated voltage, which enhances protection reliability. It accommodates multiple supply AC voltages including 115, 180, 440, and 550 V AC, with a 6A contact current and DPDT contact configuration for switching control.

The compact design with a 22.5 mm wide DIN Rail mount housing makes it easy to integrate into existing industrial control panels. It complies with international standards EN 60947-5-1 and VDE 0435, ensuring high quality and operational safety.

Typical applications include industrial automation, electrical panels, manufacturing monitoring, HVAC system protection, and other three-phase electrical supply monitoring scenarios. The ICP Series by Hiquel offers a robust solution for reliable three-phase monitoring with flexible configuration and straightforward installation.

Monitors phase failure, sequence, and asymmetry with adjustable settings. Automatic/manual reset and alarm memory for versatile operation. LED indicators for clear operational status feedback. Compact 22.5 mm DIN Rail mount suitable for industrial use.

Complies with EN 60947-5-1 and VDE 0435 certification standards. Explore more industrial relays and electrical components in the EnvMart catalog for diverse application needs.
