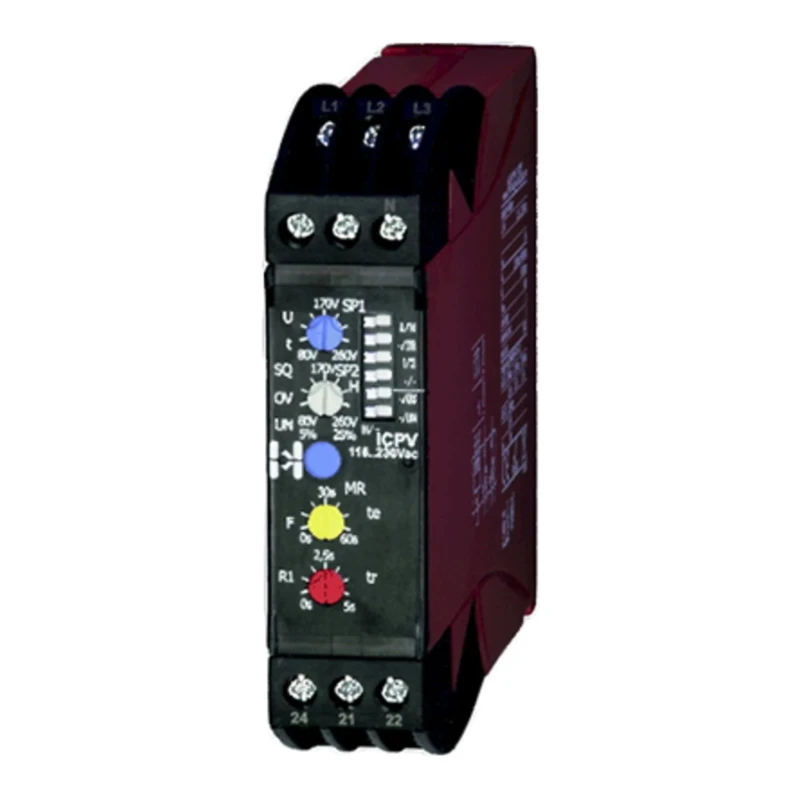

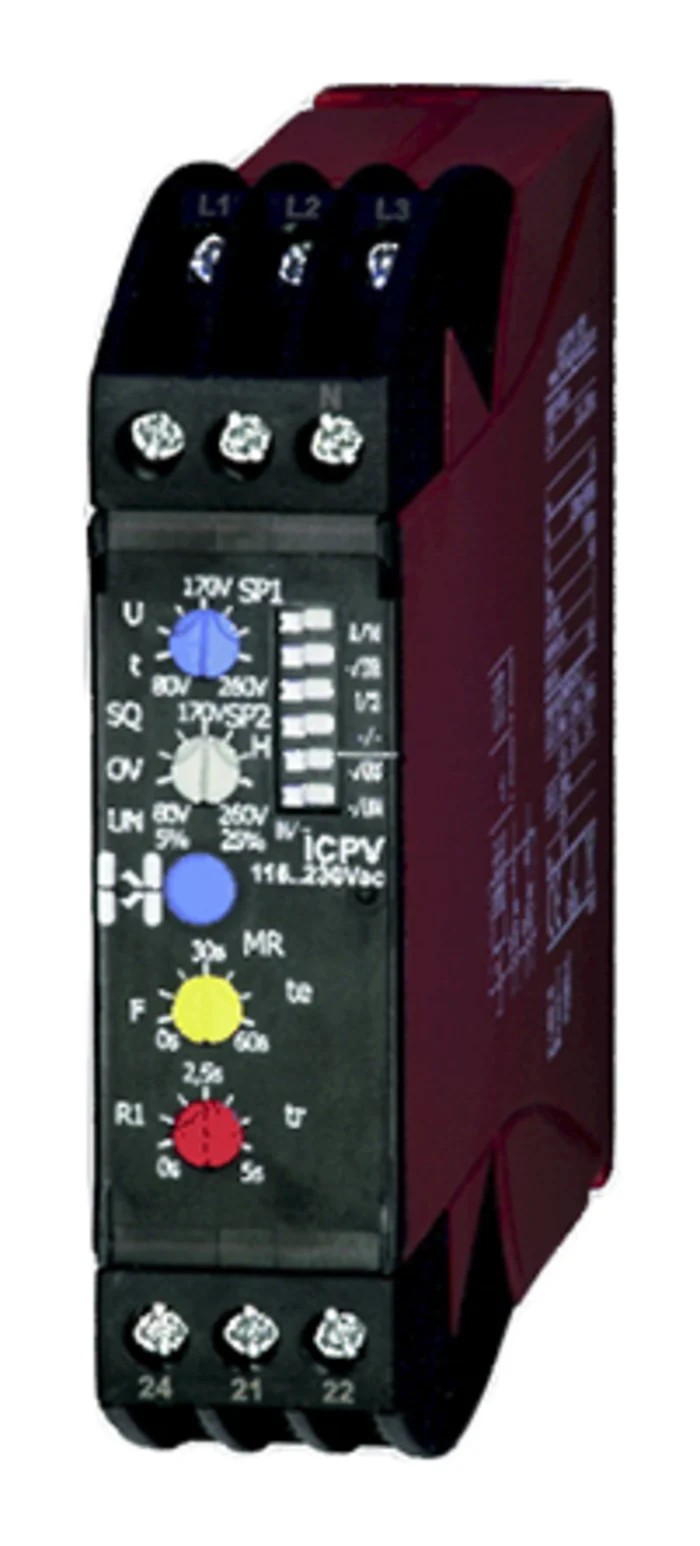

Hiquel 3 Phase Monitoring Relay, 80/260 V Monitor Range, DPDT Contact, DIN Rail Mount, 115V AC / 230V AC ICP-V
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Hiquel |
| Height | 110mm |
| Function | Phase Failure, Phase Sequence |
| Length | 93.5mm |
| Model | ICP-V |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | ICPV |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | VDE 0435, EN 60947-5-1 |
| Switching Voltage | 230V |
| Contact Current | 6A |
| Supply AC Voltage | 115, 230V ac |
| Monitoring Voltage Range | 80/260 V |
Key Features
- Monitors phase failure, phase sequence, and phase asymmetry precisely.
- Designed for 3 phase supplies with or without neutral connections.
- Selectable alarm thresholds, reaction times, and asymmetry via rotary switches.
- Supports automatic and manual reset modes for flexible operation.
- Includes alarm memory function with LED indicators for easy diagnostics.
- Compact 22.5 mm wide DIN Rail mount housing suitable for industrial panels.
- Operates on 115V AC or 230V AC supply voltage with 6A contact current rating.
- Constructed to European standards VDE 0435 and EN 60947-5-1 ensuring quality and safety.
Product Description
Hiquel ICP-V is a 3 Phase Monitoring Relay designed for monitoring phase failure, phase sequence, and phase asymmetry within 80/260 V monitor voltage range. The device supports both 115 V AC and 230 V AC supplies and includes DPDT contact configuration for reliable switching and control in industrial electrical panels.
This monitoring relay is suitable for power supplies with or without neutral connections. When monitoring a three-phase system with neutral, the neutral must be connected to the N-terminal, and the monitoring function enabled via a DIP switch to ensure accurate detection.
Hiquel ICP-V provides three selectable voltage measurement functions, along with adjustable alarm thresholds and alarm reaction times using rotary switches conveniently located on the front plate. The device offers automatic and manual reset options, supporting versatile installation and operational needs.
Additional features include an alarm memory function and visible LED indication to streamline troubleshooting and operation monitoring. It detects phase failure even if a regenerated voltage is present, enhancing reliability in demanding industrial environments.
The device’s slim 22.5 mm DIN Rail casing allows for compact integration into electrical enclosures common in industrial, construction, manufacturing, HVAC, and automation applications. The durable relay meets the safety and performance standards VDE 0435 and EN 60947-5-1, ensuring compliance with international norms.
Operating temperature range of -60°C to +60°C ensures performance under extreme environmental conditions, fitting a wide range of industrial scenarios. Monitors phase failure, sequence, and asymmetry to protect electrical installations.
Supports 3 phase 230/400V systems with or without neutral connections. Rotary-switch adjustable settings allow configurable alarm thresholds and reaction times. Contains a DPDT contact configuration rated for 6 A at 230 V switching voltage.
LED indicators provide visual status for easy maintenance. Slim 22.5 mm DIN Rail mount housing for space-efficient installations. Conforms to VDE 0435 and EN 60947-5-1 safety standards for industrial reliability.
This Hiquel ICP-V Monitoring Relay is ideal for electrical automation, industrial control panels, HVAC monitoring, and manufacturing process controls. Browse more products in the Monitoring Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hiquel ICP-V Monitoring Relay has a monitoring voltage range of 80 to 260 V.
It monitors phase failure, phase sequence, and phase asymmetry.
This model features a DPDT (Double Pole Double Throw) contact configuration.
It operates on either 115 V AC or 230 V AC supply voltage.
The contact current rating for the Hiquel ICP-V is 6 A at 230 V switching voltage.
This model measures 110 mm in height, 93.5 mm in length, and 22.5 mm in width.
It is designed for DIN Rail mounting, making it suitable for compact installations in industrial panels.
The device conforms to VDE 0435 and EN 60947-5-1 safety standards.
The operating temperature range is from -60°C to +60°C.
Yes, it supports both automatic and manual reset modes for flexible operation.
It uses screw terminals for connections.
It is ideal for applications in electrical automation, industrial control panels, HVAC monitoring, and manufacturing process controls.
