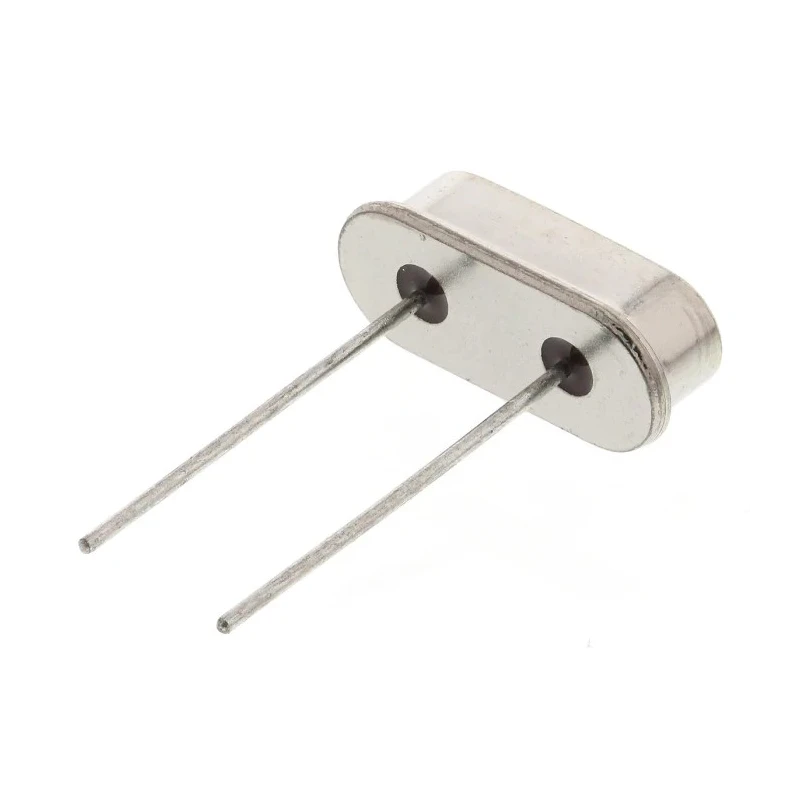

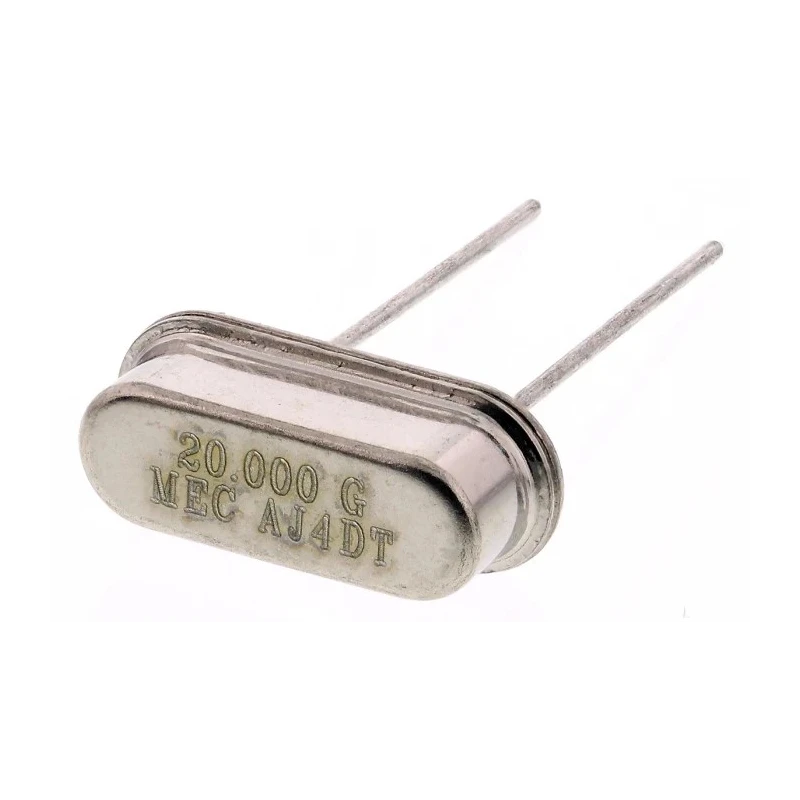

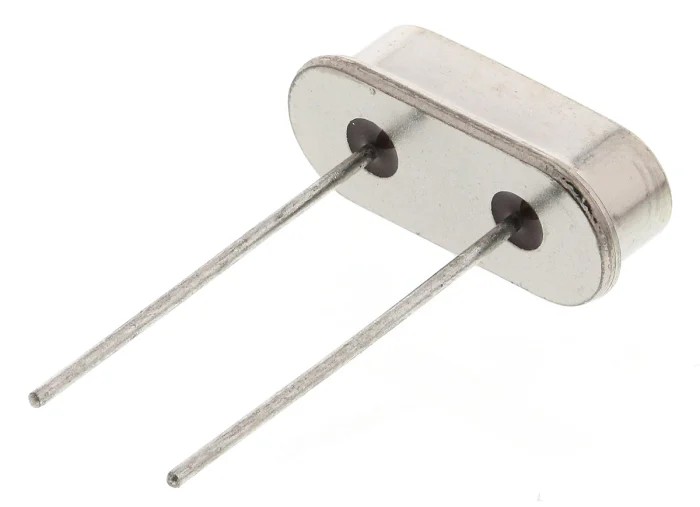

MERCURY 20 MHz Crystal ±30 ppm HC-49-US 2-Pin Through Hole Mount HUS-20.000-18-30/50/4085

MERCURY HUS-20.000-18-30/50/4085 20 MHz Crystal oscillator delivers reliable and precise frequency control for electronic applications. Featuring a ±30 ppm frequency tolerance, this crystal ensures stable output with minimal drift, ideal for industrial and commercial electronics.

Packaged in a HC-49-US through-hole mount format, it measures 10.7 mm in length, 4.3 mm in width, and 3.5 mm in height, making it suitable for compact PCB layouts. The 2-pin configuration allows for straightforward circuit integration, enhancing ease of assembly in various manufacturing processes.

This crystal oscillator supports a load capacitance of 18 pF and operates effectively across a wide temperature range of -40°C to 85°C, ensuring durability in harsh operating environments. The series resistance of 40 Ω optimizes signal integrity for stable oscillator performance.

RoHS compliance guarantees that this product meets international environmental regulations, suitable for use in eco-conscious manufacturing. Made in China, the unit reflects consistent manufacturing quality essential for reliable electronics performance.

Commonly employed in electronic control units, timing devices, communication equipment, and other precision instruments, this crystal oscillator is integral for applications requiring accurate frequency references.

This crystal oscillator offers a standard frequency of 20 MHz. It features a ±30 ppm frequency tolerance ensuring precise signal stability. The HC-49-US package provides a compact 10.7 mm length, 4.3 mm width, and 3.5 mm height.

Designed for through-hole mounting with 2 pins for easy integration into PCB assemblies. Load capacitance is 18 pF optimizing the stability and performance of the oscillator. Operates reliably within a temperature range of -40°C to 85°C.

Series resistance is rated at 40 Ω to maintain signal quality. Certified RoHS compliant ensuring environmental safety in manufacturing and disposal. Manufactured in China to meet stringent quality standards suitable for industrial electronics.
