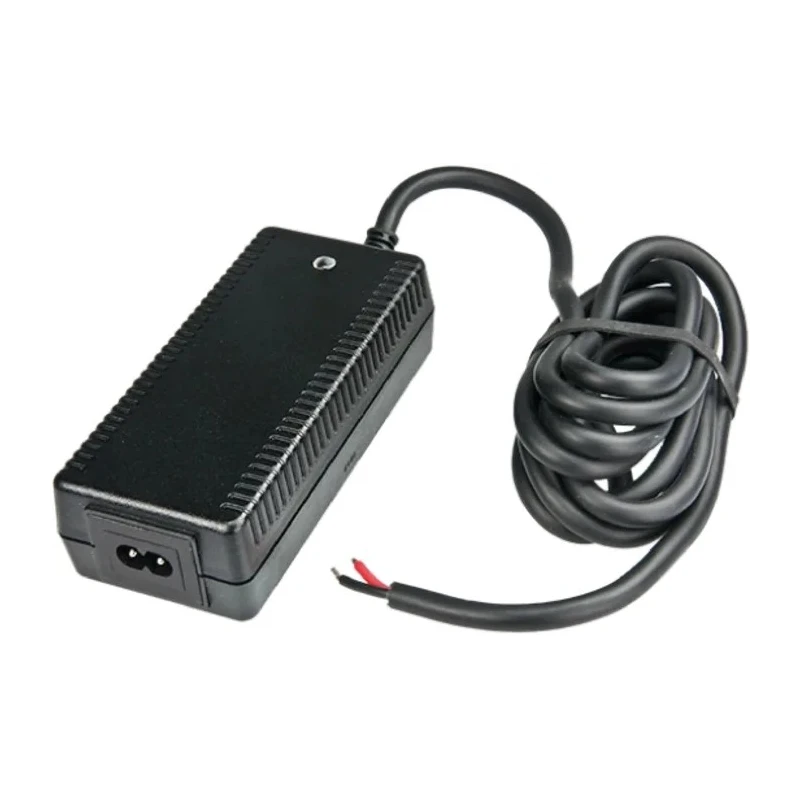

Friwo 50W Medical Approved Single Output Switch Mode AC/DC Adapter 240V AC Input 3.8A Output 12V DC EDV1890650RS

Friwo EDV1890650RS is a 50W medically approved single output AC/DC adapter designed for sensitive medical and laboratory instrumentation requiring reliable power supply with medical-grade safety.

This switch mode power supply operates with a broad input voltage range from 90V to 240V AC and delivers a constant 12V DC output at up to 3.8A current. Its compact form factor with dimensions of 130mm length, 130mm width, and 38.1mm depth, combined with an IEC 320-C8 input connector, ensures convenient desktop use in clinical and industrial environments.

The unit is certified for compliance with UL 2601, CE, VDE, and IEC 60601-1 standards, fulfilling medical application classes B, BF, and CF. It features very low leakage current (≤ 10 µA), and low standby power consumption (≤ 0.75W), making it suitable for continuous operation in patient care systems such as blood analyzers, patient monitors, measuring and laboratory equipment, inhalers, and patient lifts.

The adapter is continuously short circuit proof with built-in protections and conforms to stringent EMC standards including EN 55011, EN 55014, EN 55022/B, FCC 47 part 15, EN 61000-3-2, and EN 61000-4 series. A green LED indicator confirms operational status.

This model includes 7 interchangeable output connectors to ensure compatibility with a wide range of medical devices, providing user flexibility. Designed and manufactured in Germany, the Friwo EDV1890650RS adapter assures premium quality and longevity and operates reliably up to 40°C ambient temperature.

Choose Friwo AC/DC adapters for dependable medical-grade power solutions tailored for healthcare and laboratory applications. Explore EnvMart's extensive selection of AC/DC Adapters and medical certified power supplies for specialized industrial and laboratory use.

Input voltage range of 90V to 240V AC suitable for global use. Provides a stable 12V DC output at a maximum current of 3.8A. Equipped with IEC 320-C8 input connector and compact dimensions (130mm x 130mm x 38.1mm). Complies with medical safety standards UL 2601, CE, VDE, and IEC 60601-1.

Features low standby power consumption of ≤ 0.75W and low leakage current of ≤ 10 µA. Incorporates protections including continuous short circuit proof operation and EMC compliance. Ideal for medical and laboratory equipment such as blood analyzers, patient monitors, and inhalers.

Includes 7 interchangeable output adapters to accommodate various devices. Operates reliably within a maximum ambient temperature of 40°C.
